Home / All / Mounted Ball Bearing Units / Oval Flanged Units / HCFT200 Oval Flanged Ball Bearing Units

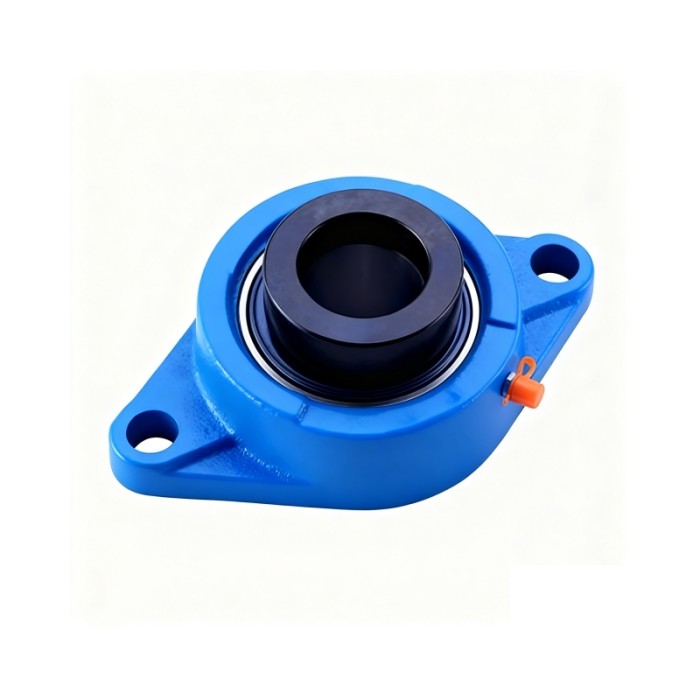

HCFT200 Oval Flanged Ball Bearing Units

HCFT200 Oval Flanged Units offer compact two-bolt mounting, reliable sealing, and stable shaft support for diverse industrial applications.

Share
Bearing Insert	HC2 Series
Housing Type	2-bolts square flange housing FT200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Oval Flanged Ball Bearing Units are compact,ready-to-install assemblies that combine a deep-groove ball bearing insert with a durable oval (two-bolt)flange housing. Their space-saving two-bolt design makes them ideal for installations where mounting room is limited or where the distance between bearings must be minimized.

Oval Flanged Ball Bearing Units are widely used in conveyors, light-duty machinery, packaging equipment, and general industrial applications where a compact, stable, and easy-to-mount bearing solution is required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

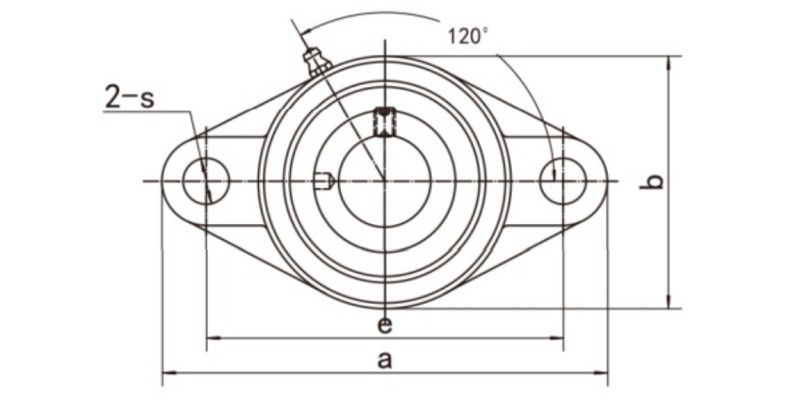

HCFT200 Oval Flanged Units Dimensions

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	e	i	g	I	s	b	Z	B1	n	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
HCFT204	20	112	89.5	19	11.0	29.0	10.5	60	45.6	43.7	17.1	M8	HC204	FT204	0.50
204-12	3/4	4-13/32	3-33/64	3/4	7/16	1-9/64	27/64	2-3/8	1-51/64	1.720	0.673	5/16	HC204-12	FT204	0.50
HCFT205	25	124	99.0	20	13	31	13	70	46.9	44.4	17.5	M10	HC205	FT205	0.69
205-13	13/16	4-7/8	3-57/64	25/32	1/2	1-7/32	33/64	2-3/4	1-27/32	1.748	0.689	3/8	HC205-13		0.74
205-14	7/8												HC205-14		0.73
205-15	15/16												HC205-15		0.71
205-16	1												HC205-16		0.69
HCFT206	30	141	116.5	21	13	34	13	82	51.1	48.4	18.3	M10	HC206	FT206	0.96
206-17	1-1/16	5-35/64	4-37/64	53/64	1/2	1-11/32	33/64	3-15/64	2-1/64	1.906	0.720	3/8	HC206-17		1.01
206-18	1-1/8												HC206-18		0.98
206-19	1-3/16												HC206-19		0.96
206-20	1-1/4												HC206-20		0.93
HCFT207	35	156	130.0	21.5	14	36.5	14	95	53.8	51.1	18.8	M12	HC207	FT207	1.39
207-20	1-1/4	6-9/64	5-1/8	27/32	35/64	1-7/16	35/64	3-47/64	2-1/8	2.012	0.740	7/16	HC207-20		1.46
207-21	1-5/16												HC207-21		1.42
207-22	1-3/8												HC207-22		1.39
207-23	1-7/16												HC207-23		1.37
HCFT208	40	171	143.5	24	14	39	14	105	58.9	56.3	21.4	M12	HC208	FT208	1.74
208-24	1-1/2	6-47/64	5-21/32	6/64	35/64	1-17/32	35/64	4-9/64	2-5/16	2.217	0.843	7/16	HC208-24		1.79
208-25	1-9/16	6-47/64	5-21/32	6/64	35/64	1-17/32	35/64	4-9/64	2-5/16	2.217	0.843	7/16	HC208-25		1.75
HCFT209	45	179	148.5	24	14	40	16	111	58.9	56.3	21.4	M14	HC209	FT209	1.94
209-26	1-5/8	7-3/64	5-55/64	61/64	35/64	1-37/64	5/8	4-3/8	2-5/16	2.217	0.843	1/2	HC209-26		2.05
209-27	-11/16												HC209-27		2.00
209-28	1-3/4												HC209-28		1.96
HCFT210	50	189	157	28.5	14	47	16	116	66.6	62.7	24.6	M14	HC210	FT210	2.34
210-29	1-13/16	7-7/16	6-3/16	1-1/8	35/64	1-27/32	5/8	49/16	2-5/8	2.469	0.969	1/2	HC210-29		2.49
210-30	1-7/8												HC210-30		2.43
210-31	1-15/16												HC210-31		2.37
210-32	2												HC210-32		2.31
HCFT211	55	216	184	32	20	50	18	133	75.6	71.4	27.8	M16	HC211	FT211	3.47
211-32	2	8-1/2	7-1/4	1-17/64	25/32	1-31/32	45/64	5-15/64	2-31/32	2.811	1.094	5/8	HC211-32		3.77
211-33	2-1/16												HC211-33		3.59
211-34	2-1/8												HC211-34		3.52
211-35	2-3/16												HC211-35		3.44
HCFT212	60	235	202	34	21	53	18	138	80.8	77.8	31	M16	HC212	FT212	4.32
212-36	2-1/4	9-1/4	7-61/64	1-9/64	53/64	2-3/32	45/64	5-7/16	2-3/16	3.063	1.220	5/8	HC212-36		4.33
212-37	2-5/16												HC212-37		4.39
212-38	2-3/8												HC212-38		4.32
212-39	2-7/16												HC212-39		4.31
HCFT213	65	248	210	38	22	56	20.5	152	89.6	85.7	34.1	M18	HC213	FT213	5.26
213-40	2-1/2	9-49/64	8-17/64	1-1/2	55/64	2-13/64	13/16	5-63/64	3-17/32	3.374	1.343	23/32	HC213-40		5.36
213-41	2-9/16	9-49/64	8-17/64	1-1/2	55/64	2-13/64	13/16	5-63/64	3-17/32	3.374	1.343	23/32	HC213-41		5.25
HCFT214	70	257	216	38	23	58	23	157	89.6	85.7	34.1	M20	HC214	FT214	5.68
214-42	2-5/8	10-7/16	8-1/2	1-1/2	29/32	2-9/32	29/32	6-3/16	3-17/32	3.374	1.343	3/4	HC214-42		5.62
214-43	2-11/16												HC214-43		5.81
214-44	2-3/4												HC214-44		5.69
