Mounted Ball Bearing Units
What Are Ball Bearing Units?
A Ball Bearing Unit is essentially an integrated unit composed of three elements:
· a radial deep-groove ball bearing insert,
· a housing that supports and locates the insert,
· seals and locking mechanism to secure the bearing to the shaft.
Because the bearing outer ring is spherical and the housing inner bore is also spherical, these units have a self-aligning capability that compensates for minor shaft or base misalignment.
Bearing units combine a high-quality insert bearing with a precisely machined housing to create a ready-to-install unit. At CTS, we manufacture and supply a wide range of ball bearing units designed for industrial machinery, conveyors, agricultural equipment, and power transmission systems.
Main Types Of Bearing Units

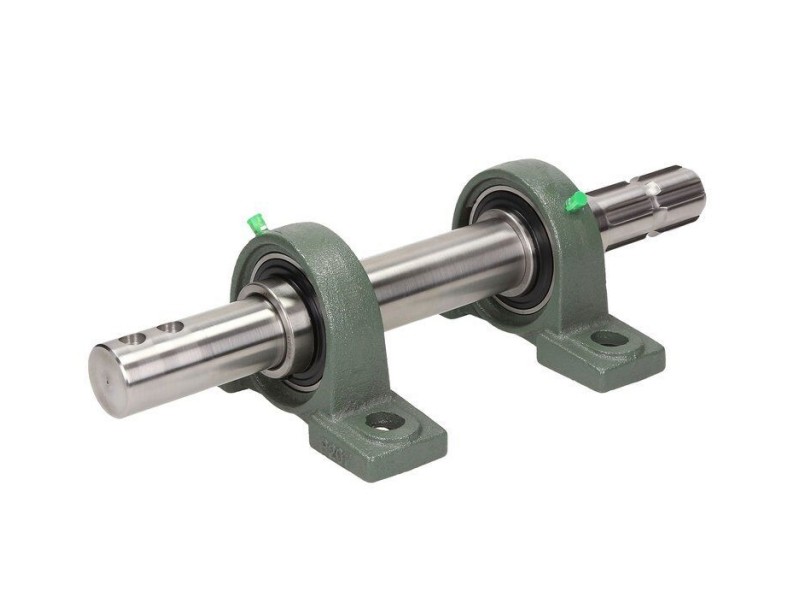

Pillow Block Units
Square Flanged Units
Oval Flanged Units

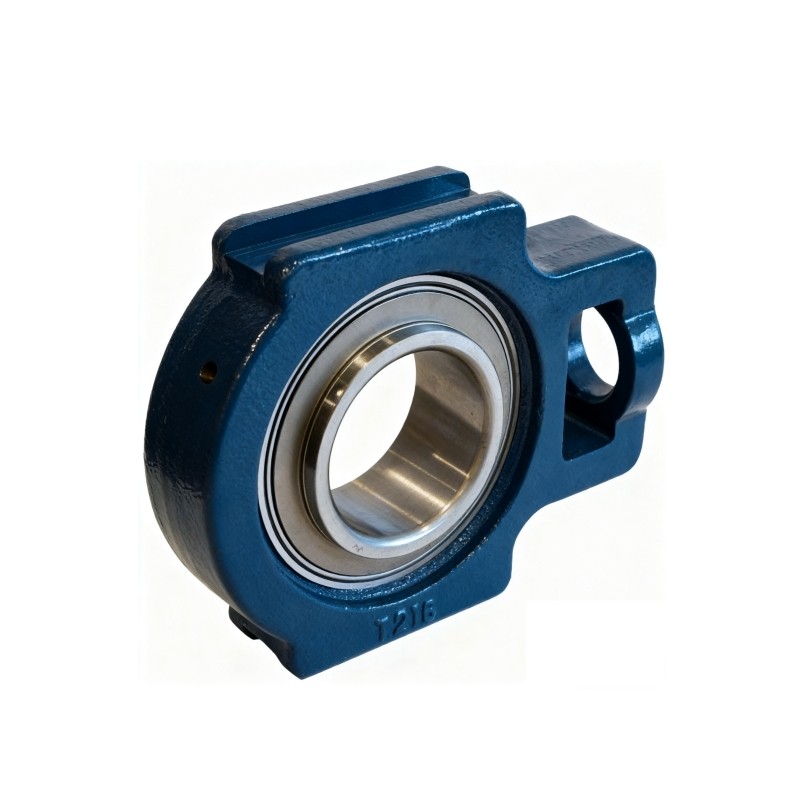

Take-up Bearing Units
Flange Cartridge Units

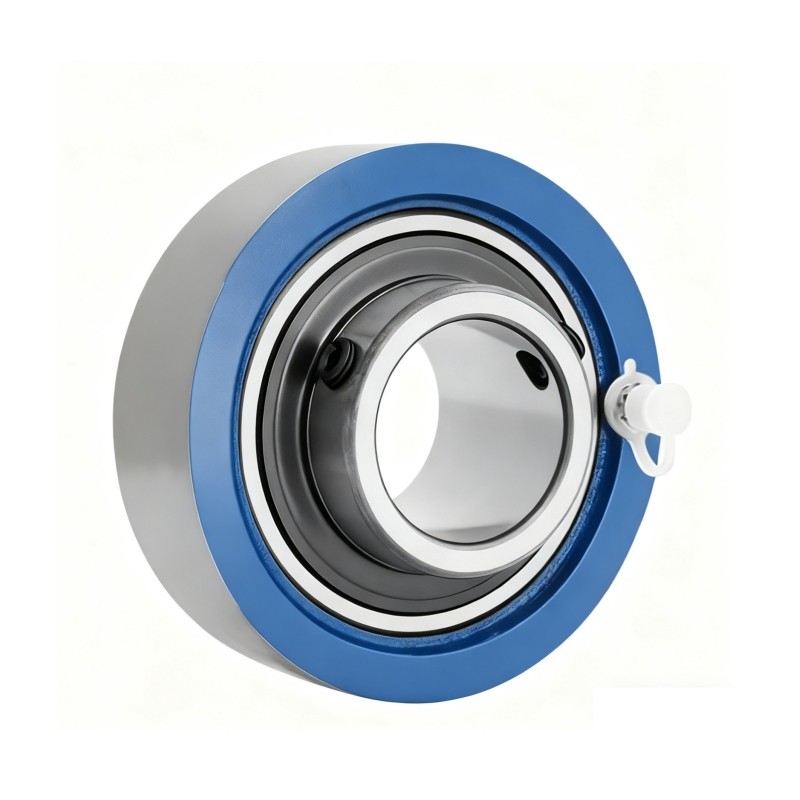

Cartridge Units
Bearing Units Selection Guide
When selecting a Ball Bearing Unit, key parameters include:
· Bore diameter(matching shaft)
· Housing dimensions(mounting footprint,bolt pattern)
· Load capacity (radial &axial)
· Speed rating
· Environmental conditions(temperature,dust,moisture)
· Material suitability(corrosion,hygiene)
· Locking method appropriate to the application
For example, if the environment is heavy dust or moisture, choose a sealed housing with stainless material or heavy-duty seals. Ensure the shaft fit and base mounting are correct to avoid misalignment.
Discover high-quality ball bearing units, including pillow block, flange, and take-up types. CTS offers reliable mounted bearing housings for industrial power transmission.
| Image | Mounted Ball Bearing Units | Description | In stock | More |
|---|---|---|---|---|
 | UKT200 Take-up Bearing Units | UKT200 Take-up Units provide adjustable shaft positioning, strong load support, and reliable sealing for conveyor and tensioning applications. | In Stock | |
 | HCT200 Take-up Bearing Units | HCT200 Take-up Units provide adjustable shaft positioning, strong load support, and reliable sealing for conveyor and tensioning applications. | In Stock | |
 | UCT200 Take-up Bearing Units | UCT200 Take-up Units provide adjustable shaft positioning, strong load support, and reliable sealing for conveyor and tensioning applications. | Available Now | |
 | UKC200 Cartridge Bearing Units | UKC200 Cartridge Units provide compact drop-in mounting, secure shaft support, and reliable sealing for tight-space industrial applications. | In Stock | |
 | UCC200 Cartridge Bearing Units | UCC200 Cartridge Units provide compact drop-in mounting, secure shaft support, and reliable sealing for tight-space industrial applications. | In Stock | |
 | UKFC200 Flanged Cartridge Bearing Units | UKFC200 Flanged Cartridge Units offer rigid mounting, secure shaft locking, and reliable sealing in industrial machinery. | In Stock |
Bearing Units FAQs
What is the difference between a Ball Bearing Unit and a standard bearing?
A standard bearing must be mounted into a housing or structure separately; a Ball Bearing Unit is a complete, ready-to-install assembly including the housing.
Can Ball Bearing Units compensate for shaft misalignment?
Yes—due to the spherical fit between outer ring and housing bore some angular misalignment is tolerated.
Can the bearing insert be replaced separately?
Yes, all housings and inserts are replaceable individually.
Contact Us
Ready to select the right Ball Bearing Units for your transmission system? Contact CTS today for detailed specifications, CAD drawings, or a quotation.
