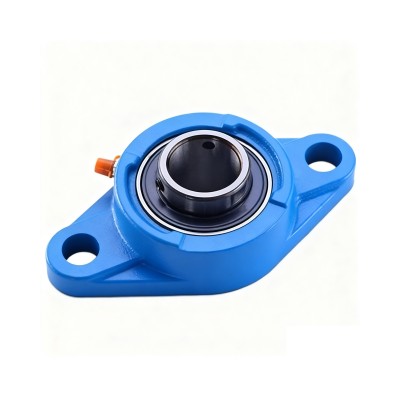

UKFL200 Oval Flanged Ball Bearing Units

UKFL200 Oval Flanged Units offer compact two-bolt mounting, reliable sealing, and stable shaft support for diverse industrial applications.

Share
Bearing Insert	UK2 Series
Housing Type	2-bolts square flange housing FL200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Oval Flanged Ball Bearing Units are compact,ready-to-install assemblies that combine a deep-groove ball bearing insert with a durable oval (two-bolt)flange housing. Their space-saving two-bolt design makes them ideal for installations where mounting room is limited or where the distance between bearings must be minimized.

Oval Flanged Ball Bearing Units are widely used in conveyors, light-duty machinery, packaging equipment, and general industrial applications where a compact, stable, and easy-to-mount bearing solution is required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

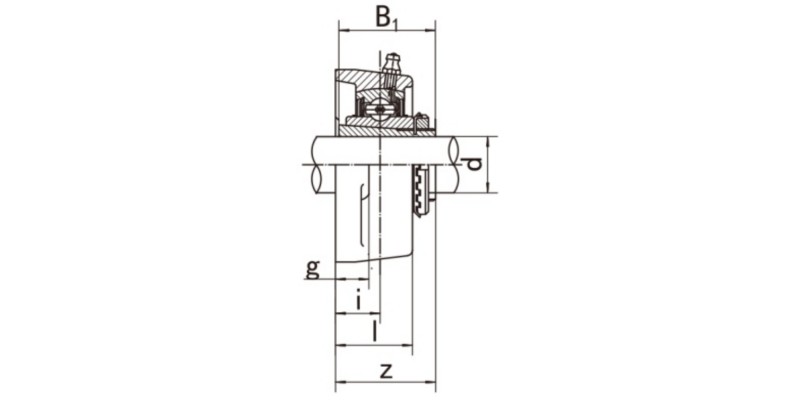

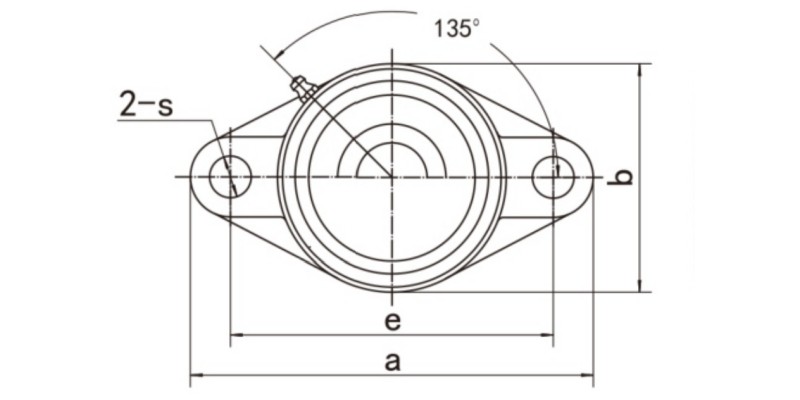

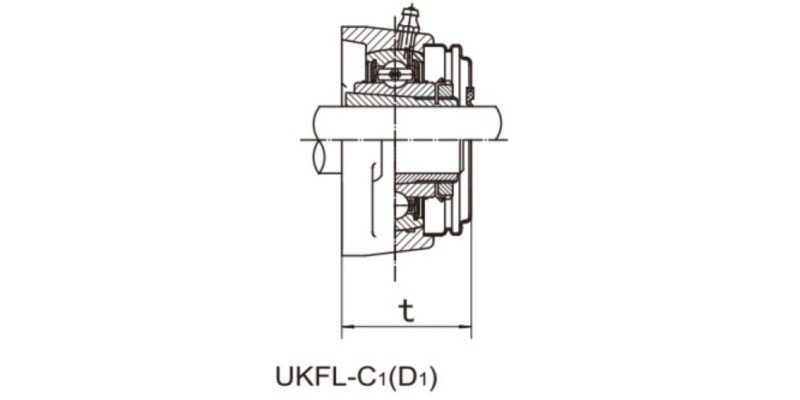

UKFL200 Oval Flanged Units Dimensions

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	e	1	g	I	s	b	Z	t	B1	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UKFL205:H2305	20	130	99	16	13	27	16	68	35.5	40	35	M14	UK205;H2305	FL205	0.63
205;HE2305	3/4	5-1/8	3-57/64	5/8	1/2	1-1/16	5/8	2-11/16	1-25/64	1-9/16	1.378	1/2	UK205;HE2305	FL205	0.63
UKFL206;H2306	25	148	117	18	13	31	16	80	39	44.5	38	M14	UK206;H2306	FL206	0.89
206;HS2306	7/8	5-53/16	4-39/64	45/64	1/2	1-7/32	5/8	3-5/32	1-17/32	1-3/4	1.496	1/2	UK206;HS2306
206;HE2306	1	5-53/16	4-39/64	45/64	1/2	1-7/32	5/8	3-5/32	1-17/32	1-3/4	1.496	1/2	UK206;HE2306
UKFL207:H2307	30	161	130	19	14	34	16	90	42.5	48.5	43	M14	UK207;H2307	FL207	1.17
207;HS2307	1-1/8	6-11/32	5-1/8	3/4	35/64	1-11/32	5/8	3-35/64	1-43/64	1-29/32	1.693	1/2	UK207;HS2307	FL207	1.17
UKFL208:H2308	35	175	144	21	14	36	16	100	46.5	55.5	46	M14	UK208;H2308	FL208	1.49
208;HE2308	1-1/4	6-57/64	5-43/64	53/64	35/64	1-13/32	5/8	3-15/16	1-53/64	2-3/16	1.811	1/2	UK208;HE2308
208;HS2308	1-3/8	6-57/64	5-43/64	53/64	35/64	1-13/32	5/8	3-15/16	1-53/64	2-3/16	1.811	1/2	UK208;HS2308
UKFL209;H2309	40	188	148	22	15	38	19	108	48.5	56.5	50	M16	UK209;H2309	FL209	187
209;HA2309	1-7/16	7-13/32	5-53/64	55/64	19/32	1-1/2	3/4	4-1/4	1-29/32	2-7/32	1.969	5/8	UK209;HA2309
209;HE2309	1-1/2												UK209;HE2309
209;HS2309	1-5/8												UK209;HS2309
UKFL210:H2310	45	197	157	22	15	40	19	115	50	59.5	55	M16	UK210;H2310	FL210	2.19
210;HS2310	1-5/8	7-3/4	6-3/16	55/64	19/32	1-37/64	3/4	4-17/32	1-31/32	2-11/32	2.165	5/8	UK210;HS2310
210;HA2310	1-1/16												UK210;HA2310
210;HE2310	1-3/4												UK210;HE2310
UKFL211:H2311	50	224	184	25	18	43	19	130	54.5	63	59	M16	UK211;H2311	FL211	2.95
211;HS2311	1-7/8	8-13/16	7-1/4	63/64	23/32	1-11/16	3/4	5-1/8	2-9/64	2-15/32	2.323	5/8	UK211;HS2311
211;HA2311	1-15/16												UK211;HA2311
211;HE2311	2												UK211;HE2311
UKFL212:H2312	55	250	202	29	18	48	23	140	61	73.5	62	M20	UK212;H2312	FL212	3.73
212;HS2312	2-1/8	9-27/32	7-61/64	1-9/64	23/32	1-7/8	29/32	5-1/2	2-13/32	2-57/64	2.441	3/4	UK212;HS2312	FL212	3.73
UKFL213:H2313	60	258	210	30	22	50	23	155	64	74.5	65	M20	UK213;H2313	FL213	4.67
213;HA2313	2-3/16	10-5/32	8-17/64	1-3/16	78	1-31/32	29/32	6-3/32	2-33/64	2-15/16	2.559	3/4	UK213;HA2313
213;HE2313	2-1/4												UK213;HE2313
213;HS2313	2-3/8												UK213;HS2313
UKFL215:H2315	65	275	225	34	22	56	23	165	71	83.5	73	M20	UK215;H2315	FL215	6.00
215;HA2315	2-7/16	10-13/16	8-55/64	1-11/32	7/8	2-7/32	29/32	6-1/2	2-51/64	3.9/32	2.874	3/4	UK215;HA2315
215;HE2315	2-1/2	10-13/16	8-55/64	1-11/32	7/8	2-7/32	29/32	6-1/2	2-51/64	3.9/32	2.874	3/4	UK215;HE2315
UKFL216:H2316	70	290	233	34	22	58	25	180	73.5	88.5	78	M22	UK216;H2316	FL216	7.34
216;HA2316	2-11/16	11-13/32	9-11/64	1-11/32	7/8	2-9/32	63/64	7-3/32	2-57/64	3-31/64	3.071	7/8	UK216;HA2316
216;HE2316	2-3/4	11-13/32	9-11/64	1-11/32	7/8	2-9/32	63/64	7-3/32	2-57/64	3-31/64	3.071	7/8	UK216;HE2316
UKFL217:H2317	75	305	248	36	24	63	25	190	77	92.6	82	M22	UK217;H2317	FL217	8.68
217;HA2317	2-15/16	12	9-49/64	1-27/64	15/16	2-15/32	63/64	7-15/32	3-1/32	3-41/64	3.228	7/8	UK217;HA2317
217;HE2317	3	12	9-49/64	1-27/64	15/16	2-15/32	63/64	7-15/32	3-1/32	3-41/64	3.228	7/8	UK217;HE2317
UKFL218:H2318	80	320	265	40	24	68	25	205	81.5	101.5	86	M22	UK218;H2318	FL218	10.43
218;HA2318	3-3/16	12-19/32	10-7/16	1-37/64	15/16	2-11/16	63/64	8-1/16	3-13/64	4	3.386	7/8	UK218;HA2318	FL218	10.43
