S32/S42/S45/S51/S52/S55/S62/S77/S88 | S-type Steel Agricultural Chains
S-type Agricultural Roller Chains
The S-type Agricultural Chain, also known as the S Series Agricultural Chain, is a heavy-duty transmission and conveyor chain widely used in farming equipment such as seeders, grain elevators, harvesters, and fertilizer spreaders.
It features a unique waisted side plate design, which reduces weight while maintaining strength and flexibility. These chains are manufactured according to DIN 8189 standards and are available in various models, including S32, S42, S52, S55, S62, S77, and S88.
They can also be customized with different attachments (such as K1, SA1, or scraper links) to meet specific agricultural needs. Pre-stretched and heat-treated for added durability, S-type chains ensure smooth, reliable performance. S-series agricultural roller chains are widely used in seed drills, grain elevators, harvesting machinery, and more.

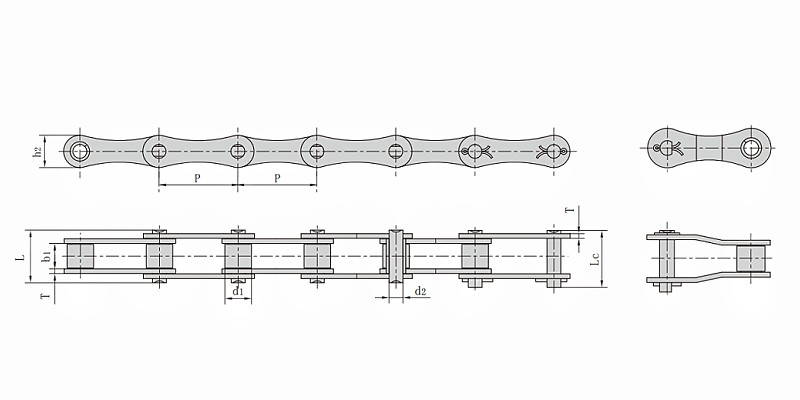

S-type Roller Chain Size
Agricultural Roller Chain Customization
✔ Offered in plain or plated steel, as well as stainless steel options
✔ A variety of link attachments (scrapers, slats, paddles) to match specific field functions
✔ Custom sizes, pre-stretch treatments, and lubrication solutions are available on request
| Image | S32/S42/S45/S51/S52/S55/S62/S77/S88 | S-type Steel Agricultural Chains | Description | In stock | More |
|---|---|---|---|---|
 | S88 Roller Chain | S-Type Steel Agricultural Chain | The S88 agricultural chain is a durable, high-performance chain designed for agricultural applications. | In Stock | |
| S77 Roller Chain | S-Type Steel Agricultural Chain 58.34 mm Pitch DIN 8189 | S77 steel agricultural chain: 58.34 mm pitch, 8.90 mm pin, 4.0 mm plates, 45 kN tensile, 2.66 kg/m. Heavy-duty DIN 8189 S-type chain. Quote in 24 hours. | Available Now | |
| S62 Roller Chain | S-Type Steel Agricultural Chain | The S62 agricultural chain is a durable, high-performance chain designed for agricultural applications. | In Stock | |
| S55 Roller Chain | S-Type Steel Agricultural Chain 41.4 mm Pitch DIN 8189 | S55 steel agricultural chain: DIN 8189 S-type, larger roller for longer wear. Interchangeable S-size chain with attachments and made-to-drawing assemblies. | In Stock | |
| S52 Roller Chain | S-Type Steel Agricultural Chain 38.10 mm Pitch DIN 8189 | S52 steel agricultural chain, 38.10 mm pitch, 22.23 mm inner width, 18 kN. DIN 8189 S-type chain with attachments, custom assemblies and 24-hour quotes. | In Stock | |
| S51 Roller Chain | S-Type Steel Agricultural Chain | The S51 agricultural chain is a durable, high-performance chain designed for agricultural applications. | Email/Call | |
| S45 Roller Chain | S-Type Steel Agricultural Chain | The S45 agricultural chain is a durable, high-performance chain designed for agricultural applications. | In Stock | |
| S42 Roller Chain | S-Type Steel Agricultural Chain – 34.93 mm Pitch DIN 8189 | S42 S-type steel agricultural chain: 34.93 mm pitch, 7.00 mm pins, 19.8 × 2.8 mm plates, 27 kN tensile, 1.60 kg/m. DIN 8189. | In Stock | |
| S32 Roller Chain | S-Type Steel Agricultural Chain | The S32 agricultural chain is a durable, high-performance chain designed for agricultural applications. | In Stock |
