UCFT200 Oval Flanged Ball Bearing Units

UCFT200 Oval Flanged Units offer compact two-bolt mounting, reliable sealing, and stable shaft support for diverse industrial applications.

Share
Bearing Insert	UC2 Series
Housing Type	2-bolts square flange housing FT200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Oval Flanged Ball Bearing Units are compact,ready-to-install assemblies that combine a deep-groove ball bearing insert with a durable oval (two-bolt)flange housing. Their space-saving two-bolt design makes them ideal for installations where mounting room is limited or where the distance between bearings must be minimized.

Oval Flanged Ball Bearing Units are widely used in conveyors, light-duty machinery, packaging equipment, and general industrial applications where a compact, stable, and easy-to-mount bearing solution is required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

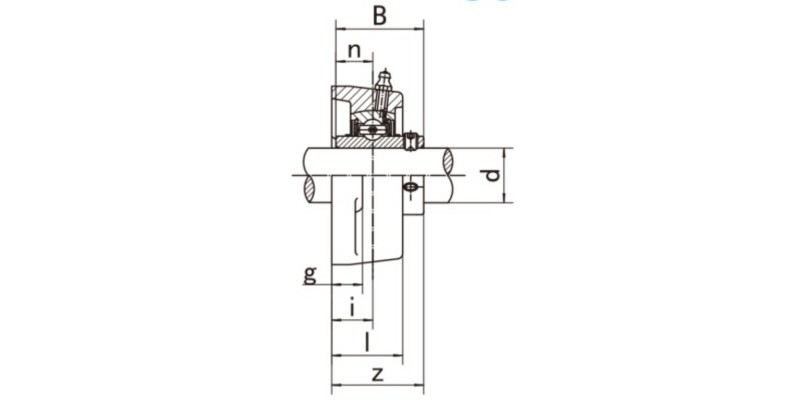

UCFT200 Oval Flanged Units Dimensions

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	e	I	g	I	S	b	Z	B	n	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UCFT204	20	112	89.5	19.0	11.0	29.0	10.5	60.0	37.3	31.0	12.7	M8	UC204	FT204	0.45
204-12	3/4	4-13/32	3-33/64	3/4	7/16	1-9/64	27/64	2-3/8	1-15/32	1.2205	0.500	5/16	UC204-12	FT204	0.45
UCFT205	25	124	99.0	20.0	13.0	31.0	13.0	70.0	39.8	34.1	14.3	M10	UC205	FT205	0.63
205-13	3/16	4-7/8	3-57/64	25/32	1/2	1-7/32	33/64	2-3/4	1-37/64	1.3425	0.563	3/8	UC205-13		0.67
205-14	7/8												UC205-14		0.66
205-15	15/16												UC205-15		0.64
205-16	1												UC205-16		0.63
UCFT206	30	141	116.5	21.0	13.0	34.0	13.0	82.0	43.2	38.1	15.9	M10	UC206	FT206	0.89
206-17	1-1/16	5-35/64	4-37/64	53/64	1/2	1-11/32	33/64	3-15/64	1-45/64	1.5000	0.626	3/8	UC206-17		0.90
206-18	1-1/8												UC206-18		0.91
206-19	1-3/16												UC206-19		0.89
206-20	1-1/4												UC206-20		0.88
UCFT207	35	156	130.0	21.5	14.0	36.5	14.0	95.0	46.9	42.9	17.5	M12	UC207	FT207	1.25
207-20	1-1/4	6-9/64	5-1/8	27/32	35/64	1-7/16	35/64	3-47/64	1-27/32	1.6890	0.689	7/16	UC207-20		1.32
207-21	1-5/16												UC207-21		1.29
207-22	1-3/8												UC207-22		126
207-23	1-7/16												UC207-23		1.23
UCFT208	40	171	143.5	24.0	14.0	39.0	14.0	105.0	54.2	49.2	19.0	M12	UC208	FT208	1.61
208-24	1-1/2	6-47/64	5-21/32	61/64	35/64	1-17/32	35/64	4-9/64	2-9/64	1.9370	0.748	7/16	UC208-24		1.65
208-25	1-9/16	6-47/64	5-21/32	61/64	35/64	1-17/32	35/64	4-9/64	2-9/64	1.9370	0.748	7/16	UC208-25		1.62
UCFT209	45	179	148.5	24.0	14.0	40.0	16.0	111.0	54.2	49.2	19.0	M14	UC209	FT209	1.81
209-26	1-5/8	7-3/64	5-55/64	61/64	35/64	1-37/64	5/8	4-3/8	2-9/64	1.9370	0.748	1/2	UC209-26		1.91
209-27	1-11/16												UC209-27		1.87
209-28	1-3/4												UC209-28		1.83
UCFT210	50	189	157.0	28.5	14.0	47.0	16.0	116.0	61.1	51.6	19.0	M14	UC210	FT210	2.15
210-29	1-13/16	7-7/16	6-3/16	1-1/8	35/64	127/32	5/8	4-9/16	2-13/32	2.0315	0.748	1/2	UC210-29		2.27
210-30	1-7/8												UC210-30		2.22
210-31	1-15/16												UC210-31		2.17
210-32	2												UC210-32		2.13
UCFT211	55	216	184.0	32.0	20.0	50.0	18.0	133.0	65.4	55.6	22.2	M16	UC211	FT211	3.20
211-32	2	8-1/2	7-1/4	1-17/64	25/32	1-31/32	45/64	5-15/64	2-37/64	2.1890	0.874	5/8	UC211-32		3.35
211-33	2-1/16												UC211-33		3.29
211-34	2-1/8												UC211-34		3.25
211-35	2-3/16												UC211-35		3.18
UCFT212	60	235	202	34	21	53	18	138	73.7	65.1	25.4	M16	UC212	FT212	4.00
212-36	2-1/4	9-1/4	7-61/64	1-9/64	53/64	2-3/32	23/32	5-7/16	2-29/32	2.5630	1.000	5/8	UC212-36		4.13
212-37	2-5/16												UC212-37		4.05
212-38	2-3/8												UC212-38		3.98
212-39	2-7/16												UC212-39		3.91
UCFT213	65	248	210	38	22	56	20.5	152	77.7	65.1	25.4	M18	UC213	FT213	4.72
213-40	2-1/2	9-49/64	8-17/64	1-1/2	55/64	2-13/64	13/16	5-63/64	3-1/16	2.5630	1.000	23/32	UC213-40		4.81
213-41	2-9/16	9-49/64	8-17/64	1-1/2	55/64	2-13/64	13/16	5-63/64	3-1/16	2.5630	1.000	23/32	UC213-41		4.72
UCFT214	70	257	216	38	23	58	23	157	82.4	74.6	30.2	M20	UC214	FT214	5.27
214-42	2-5/8	10-7/16	8-1/2	1-1/2	29/32	2-9/32	29/32	6-3/16	3-1/4	2.9370	1.189	3/4	UC214-42		5.48
214-43	2-11/16												UC214-43		5.38
214-44	2-3/4												UC214-44		5.28
