HCFL200 Oval Flanged Ball Bearing Units

HCFL200 Oval Flanged Units offer compact two-bolt mounting, reliable sealing, and stable shaft support for diverse industrial applications.

Share
Bearing Insert	HC2 Series
Housing Type	2-bolts square flange housing FL200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Oval Flanged Ball Bearing Units are compact,ready-to-install assemblies that combine a deep-groove ball bearing insert with a durable oval (two-bolt)flange housing. Their space-saving two-bolt design makes them ideal for installations where mounting room is limited or where the distance between bearings must be minimized.

Oval Flanged Ball Bearing Units are widely used in conveyors, light-duty machinery, packaging equipment, and general industrial applications where a compact, stable, and easy-to-mount bearing solution is required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

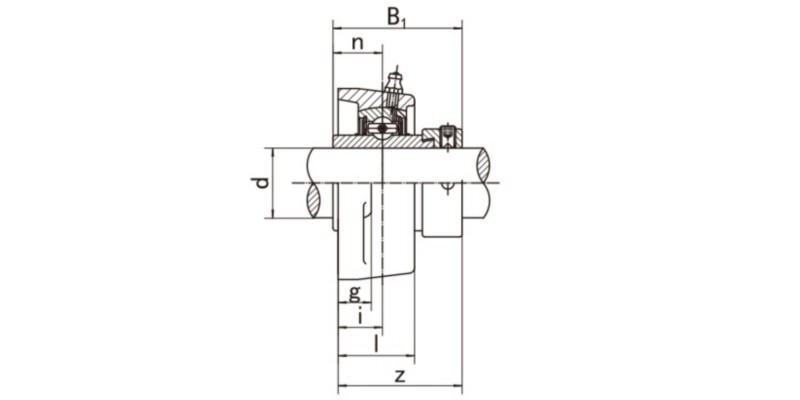

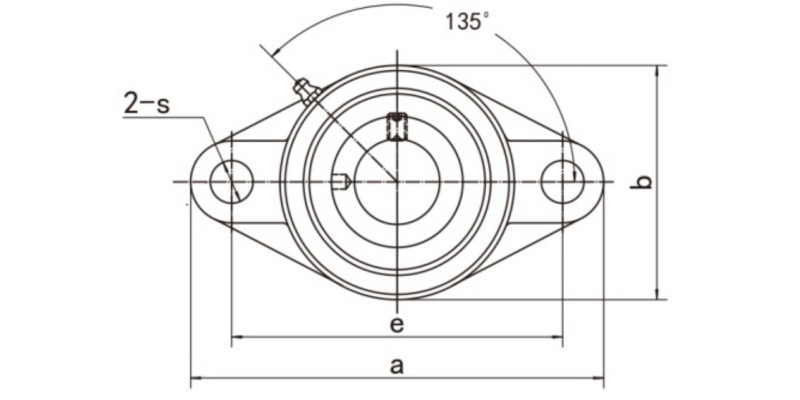

HCFL200 Oval Flanged Units Dimensions

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	e	i	g	I	s	b	Z	B1	n	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
HCFL204	20	113	90	15	11	25.5	12	60	41.6	43.7	17.1	M10	HC204	FL204	0.46
204-12	3/4	4-7/16	3-35/64	19/32	7/16	1	15/32	2-3/8	1-41/64	1.720	0.673	3/8	HC204-12	FL204	0.46
HCFL205	25	130	99	16	13	27	16	68	42.9	44.4	17.5	M14	HC205	FL205	0.63
205-13	13/16	5-1/8	3-57/64	5/8	1/2	1-1/16	5/8	2-11/16	1-11/16	1.748	0.689	1/2	HC205-13		0.68
205-14	7/8												HC205-14		0.67
205-15	15/16												HC205-15		0.65
205-16	1												HC205-16		0.63
HCFL206	30	148	117	18	13	31	16	80	48.1	48.4	18.3	M14	HC206	FL206	0.90
206-17	1-1/16	5-13/16	4-39/64	45/64	1/2	1-7/32	5/8	3-5/32	1-57/64	1.906	0.720	1/2	HC206-17		0.95
206-18	1-1/8												HC206-18		0.92
206-19	1-3/16												HC206-19		0.90
206-20	1-1/4												HC206-20		0.87
HCFL207	35	161	130	19	14	34	16	90	51.3	51.1	18.8	M14	HC207	FL207	1.24
207-20	1-1/4	6-11/32	5-1/8	3/4	35/64	1-11/32	5/8	3-35/64	2-1/64	2.012	0.740	1/2	HC207-20		1.31
207-21	1-5/16												HC207-21		1.27
207-22	1-3/8												HC207-22		1.24
207-23	1-7/16												HC207-23		1.22
HCFL208	40	175	144.0	21	14	36	16	100	55.9	56.3	21.4	M14	HC208	FL208	1.56
208-24	1-1/2	6-7/8	5-43/64	53/64	35/64	1-13/32	5/8	3-15/16	2-13/64	2.217	0.843	1/2	HC208-24		1.60
208-25	1-9/16	6-7/8	5-43/64	53/64	35/64	1-13/32	5/8	3-15/16	2-13/64	2.217	0.843	1/2	HC208-25		1.56
HCFL209	45	188	148	22	15	38	19	108	56.9	56.3	21.4	M16	HC209	FL209	1.88
209-26	1-5/8	7-13/32	5-53/64	55/64	19/32	1-1/2	3/4	4-1/4	2-15/64	2.217	0.843	5/8	HC209-26		1.99
209-27	1-11/16												HC209-27		1.94
209-28	1-3/4												HC209-28		1.90
HCFL210	50	197	157	22	15	40	19	115	60.1	62.7	24.6	M16	HC210	FL210	2.21
210-29	1-13/16	7-3/4	6-3/16	55/64	19/32	1-37/64	3/4	4-17/32	2-23/64	2.469	0.969	5/8	HC210-29		2.36
210-30	1-7/8												HC210-30		2.30
210-31	1-15/16												HC210-31		2.24
210-32	2												HC210-32		2.18
HCFL211	55	224	184	25	18	43	19	130	68.6	71.4	27.8	M16	HC211	FL211	3.06
211-32	2	8-13/16	7-1/4	63/64	23/32	1-11/16	3/4	5-1/8	2-45/64	2.811	1.094	5/8	HC211-32		3.36
211-33	2-1/16												HC211-33		3.18
211-34	2-1/8												HC211-34		3.11
211-35	2-3/16												HC211-35		3.03
HCFL212	60	250	202	29	18	48	23	140	75.8	77.8	31	M20	HC212	FL212	3.97
212-36	2-1/4	9-27/32	7-16/64	1-9/64	23/32	1-7/8	29/32	5-1/2	2-63/64	3.063	1.220	3/4	HC212-36		3.99
212-37	2-5/16												HC212-37		4.04
212-38	2-3/8												HC212-38		3.97
212-39	2-7/16												HC212-39		3.96
HCFL213	65	258	210	30	22	50	23	155	81.6	85.7	34.1	M20	HC213	FL213	5.10
213-40	2-1/2	10-5/32	8-17/64	1-3/16	7/8	1-31/32	29/32	6-3/32	3-7/32	3.374	1.343	3/4	HC213-40		5.20
213-41	2-9/16	10-5/32	8-17/64	1-3/16	7/8	1-31/32	29/32	6-3/32	3-7/32	3.374	1.343	3/4	HC213-41		5.09
HCFL214	70	265	216	31	22	54	23	160	82.6	85.7	34.1	M20	HC214	FL214	5.53
214-42	2-5/8	10-7/16	8-1/2	1-7/32	7/8	2-1/8	29/32	6-5/16	3-1/4	3.374	1.343	3/4	HC214-42		5.47
214-43	2-11/16												HC214-43		5.66
214-44	2-3/4												HC214-44		5.54
HCFL215	75	275	225	34	22	56	23	165	88.8	92.1	37.3	M20	HC215	FL215	6.09
215-45	2-13/16	10-13/16	8-55/64	1-11/32	7/8	2-7/32	29/32	6-1/2	3-1/2	3.626	1.469	3/4	HC215-45		6.39
215-46	2-7/8												HC215-46		6.26
215-47	2-15/16												HC215-47		6.13
215-48	3												HC215-48		5.99
HCFL216	80	290	233	34	22	58	25	180	91.9	95.2	37.3	M22	HC216	FL216	7.59
216-49	3-1/16	11-13/32	9-11/64	1-11/32	7/8	2-9/32	63/64	7-3/32	3-5/8	3.748	1.469	7/8	HC216-49		7.79
216-50	3-1/8												HC216-50		7.65
216-51	3-3/16												HC216-51		7.50
HCFL217	85	305	248	36	24	63	25	190	86.4	73.8	23.4	M22	HC217	FL217	8.52
217-52	3-1/4	9-27/32	5-51/64	23/32	1-25/32	7,0866	29/32	7-15/32	3-13/32	2.906	0.921	7/8	HC217-52		8.71
217-53	3-5/16												HC217-53		8.59
217-55	3-7/16												HC217-55		8.34
HCFL218	90	320	265	40	24	68	25	205	88.1	72.6	24.5	M22	HC218	FL218	9.95
218-56	3-1/2	12-19/32	10-7/16	1-37/64	15/16	2-11/16	63/64	8-1/16	8-15/32	3.7795	1.5630	7/8	HC218-56	FL218	10.04
