Home / All / Mounted Ball Bearing Units / Flange Cartridge Units / UKFC200 Flanged Cartridge Bearing Units

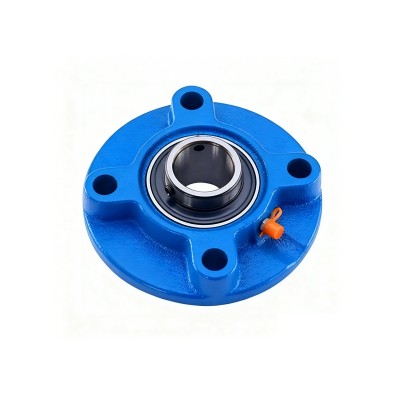

UKFC200 Flanged Cartridge Bearing Units

UKFC200 Flanged Cartridge Units offer rigid mounting, secure shaft locking, and reliable sealing in industrial machinery.

Share
Bearing Insert	UK2 Series
Housing Type	4 bolts round flange housing FC200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Flange Cartridge Bearing Units are compact,ready-to-mount bearing assemblies designed for applications that require strong, face-mounted support in a minimal footprint. These units integrate a high-quality deep-groove ball bearing insert with a cylindrical or square cartridge-style housing, creating a rigid structure that is easy to install and highly stable during operation.

Flange Cartridge Units are widely used in conveyors, agricultural machinery, material-handling systems, fans, and general industrial equipment where a compact mounting style and strong load support are required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

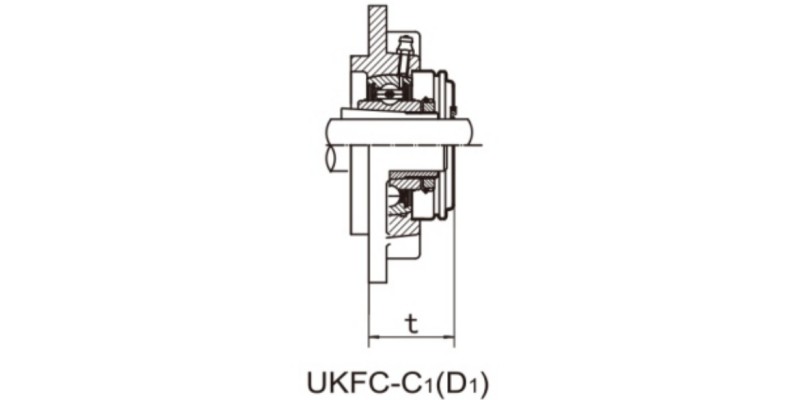

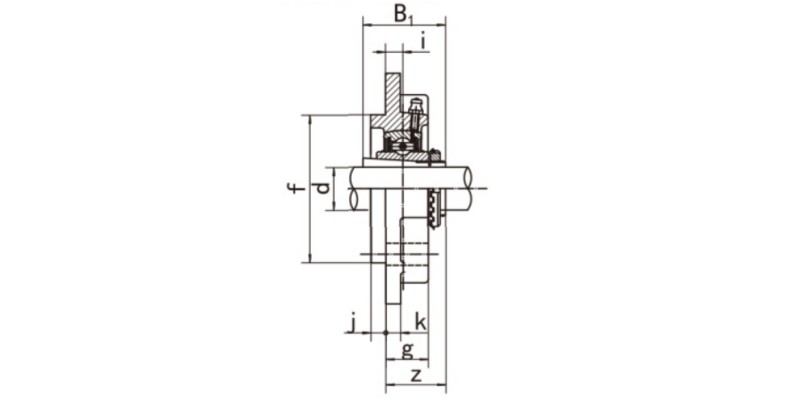

UKFC200 Flange Cartridge Units Dimensions

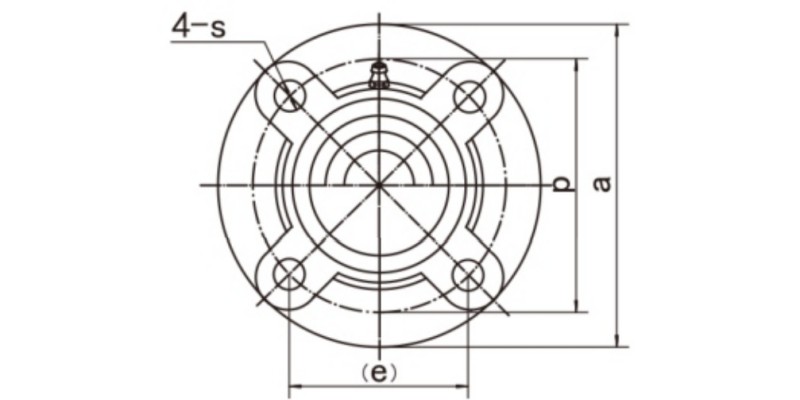

UCFC200 Flange Cartridge Units Dimensions

Unit NO.	Dimensions(mm/in.)													Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	p	(e)	i	s	j	k	g	f	Z	t	B1	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UKFC205;H2305	20	115	90	63.6	10	12	6	7	21	70	29.5	35	35	M10	UK205;H2305	FC205	0.93
205;HE2305	3/4	4-17/32	3-35/64	2-1/2	15/64	25/32	1564	9/32	53/64	2.7559	1-5/32	1-3/8	1.378	3/8	UK205;HE2305	FC205	0.93
UKFC206:H2306	25	125	100	70.7	10	12	8	8	23	80	31	38	38	M10	UK206;H2306	FC206	1.24
206;HS2306	7/8	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-7/32	1-1/2	1.496	3/8	UK206;HS2306
206;HE2306	1	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-7/32	1-1/2	1.496	3/8	UK206;HE2306
UKFC207;H2307	30	135	110	77.8	11	14	8	9	26	90	34.5	41	43	M12	UK207;H2307	FC207	1.6
207;HS2307	1-1/8	5-5/16	4-21/64	3-1/16	7/16	35/64	5/16	23/64	1-1/32	3.5433	1-23/64	1-39/64	1.693	7/16	UK207;HS2307	FC207	1.6
UKFC208:H2308	35	145	120	84.8	11	14	10	9	26	100	36.5	46	46	M12	UK208;H230B	FC208	1.92
208;HE2308	1-1/4	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-7/16	1-13/16	1.811	7/16	UK208;HE2308
208;HS2308	1-3/8	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-7/16	1-13/16	1.811	7/16	UK208;HS2308
UKFC209:H2309	40	160	132	93.3	10	16	12	14	26	105	36.5	45	50	M14	UK209;H2309	FC209	2.65
209;HA2309	1-7/16	6-19/64	5-13/64	3-43/64	25/64	5/8	15/32	35/64	1-1/32	4.1339	1-7/16	1-49/64	1.969	1/2	UK209;HA2309
209;HE2309	1-1/2														UK209;HE2309
209;HS2309	1-5/8														UK209;HS2309
UKFC210:H2310	45	165	138	97.6	10	16	12	14	28	110	38	47	55	M14	UK210;H2310	FC210	2.96
210;HS2310	1-5/8	6-1/2	5-7/16	3-27/32	25/64	5/8	15/32	35/64	1-7/64	4.3307	1-1/2	1-27/32	2.165	1/2	UK210;HS2310
210;HA2310	1-11/16														UK210;HA2310
210;HE2310	1-3/4														UK210;HE2310
UKFC211:H2311	50	185	150	106.1	13	19	12	15	31	125	41.5	51	59	M16	UK211;H2311	FC211	4.02
211;HS2311	1-7/8	7-9/32	5-29/32	4-3/16	33/64	3/4	15/32	19/32	1-7/32	4.9213	1-43/64	2-1/64	2.323	5/8	UK211;HS2311
211;HA2311	1-15/16														UK211;HA2311
211;HE2311	2														UK211;HE2311
UKFC212;H2312	55	195	160	113.1	17	19	12	15	36	135	49	62	62	M16	UK212;H2312	FC212	4.77
212;HS2312	2-1/8	7-11/16	6-19/64	4-29/64	43/64	314	1532	19/52	1-27/64	5.3150	1-59/64	2-7/16	2.441	5/8	UK212;HS2312	FC212	4.77
UKFC213:H2313	60	205	170	120.2	16	19	14	15	36	145	50	61	65	M16	UK213;H2313	FC213	5.41
213;HA2313	2-3/16	8-5/64	6-11/16	4-47/64	518	3/4	35/64	19/32	1-27/64	5.5118	1-31/32	2-13/32	2.559	5/8	UK213;HA2313
213;HE2313	2-1/4														UK213;HE2313
213;HS2313	2-3/8														UK213;HS2313
UKFC215:H2315	65	220	184	130.1	18	19	16	18	40	160	55	68	73	M16	UK215;H2315	FC215	7.25
215;HA2315	2-7/16	8-21/32	7-1/4	5-1/8	23/32	3/4	5/8	23/32	1-3764	6.2992	2-11/64	2-43/64	2.874	5/8	UK215;HA2315
215;HE2315	2-1/2	8-21/32	7-1/4	5-1/8	23/32	3/4	5/8	23/32	1-3764	6.2992	2-11/64	2-43/64	2.874	5/8	UK215;HE2315
UKFC216:H2316	70	240	200	141.4	18	23	16	18	42	170	57.5	73	78	M20	UK216;H2316	FC216	8.9
216;HA2316	2-11/16	9-29/64	7-78	5-9/16	23/32	29/32	5/8	23/32	1-21/32	6.6929	2-17/64	2-7/8	3.071	3/4	UK216;HA2316
216;HE2316	2-3/4	9-29/64	7-78	5-9/16	23/32	29/32	5/8	23/32	1-21/32	6.6929	2-17/64	2-7/8	3.071	3/4	UK216;HE2316
UKFC217:H2317	75	250	208	147.1	18	23	18	20	45	180	59	75	82	M20	UK217;H2317	FC217	10.6
217;HA2317	2-15/16	9-27/32	8-3/16	5.51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-21/64	2-61/64	3.228	3/4	UK217;HA2317
217;HE2317	3	9-27/32	8-3/16	5.51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-21/64	2-61/64	3.228	3/4	UK217;HE2317
UKFC218;H2318	80	265	220.0	155.5	22	23	18	20	50	190	63.5	84	86	M20	UK218;H2318	FC218	12.54
218;HA2318	3-3/16	10-7/16	8-21/32	6-1/8	55/64	29/32	23/32	25/32	1-31/32	7.4803	2-1/2	3-5/16	3.386	3/4	UK218;HA2318	FC218	12.54
