Home / All / Mounted Ball Bearing Units / Flange Cartridge Units / HCFC200 Flanged Cartridge Bearing Units

HCFC200 Flanged Cartridge Bearing Units

HCFC200 Flanged Cartridge Units offer rigid mounting, secure shaft locking, and reliable sealing in industrial machinery.

Share
Bearing Insert	HC2 Series
Housing Type	4 bolts round flange housing FC200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Flange Cartridge Bearing Units are compact,ready-to-mount bearing assemblies designed for applications that require strong, face-mounted support in a minimal footprint. These units integrate a high-quality deep-groove ball bearing insert with a cylindrical or square cartridge-style housing, creating a rigid structure that is easy to install and highly stable during operation.

Flange Cartridge Units are widely used in conveyors, agricultural machinery, material-handling systems, fans, and general industrial equipment where a compact mounting style and strong load support are required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

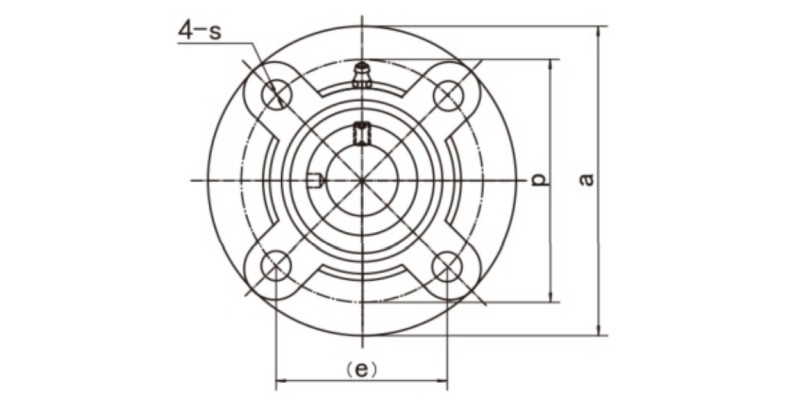

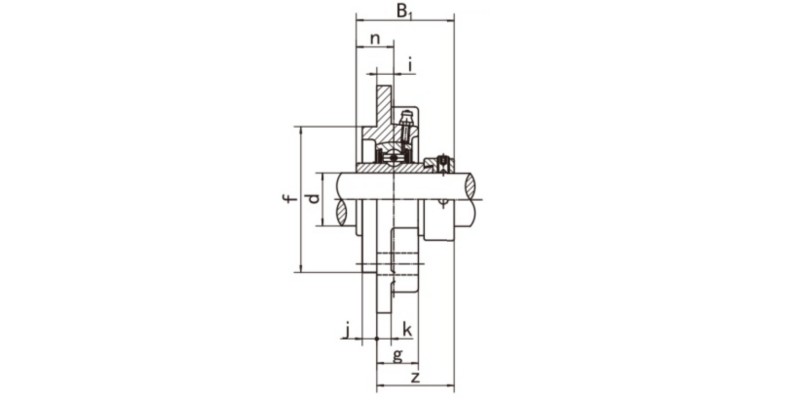

HCFC200 Flange Cartridge Units Dimensions

Unit NO.	Dimensions(mm/in.)													Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
Unit NO.	d	a	P	(e)	i	s	j	k	g	f	Z	B1	n	Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
HCFC204	20	100	78	55.1	10	12	5	7	20.5	62	36.6	43.7	17.1	M10	HC204	FC204	0.72
204-12	3/4	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9/32	13/16	2.4409	1-7/16	1.720	0.673	3/8	HC204-12	FC204	0.72
HCFC205	25	115	90	63.6	10	12	6	7	21	70	36.9	44.4	17.5	M10	HC205	FC205	0.94
205-13	13/16	4-17/32	3-35/64	2-1/2	25/64	15/32	15/64	9/32	53/64	2.7559	1-29/64	1.748	0.689	3/8	HC205-13		0.99
205-14	7/8														HC205-14		0.98
205-15	15/16														HC205-15		0.96
205-16	1														HC205-16		0.94
HCFC206	30	125	100	70.7	10	12	8	8	23	80	40.1	48.4	18.3	M10	HC206	FC206	1.25
206-17	1-1/16	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-3764	1.906	0.720	3/8	HC2D6-17		1.30
206-18	1-1/8														HC206-18		1.27
206-19	1-3/16														HC206-19		1.25
206-20	1-1/4														HC206-20		1.22
HCFC207	35	135	110	77.8	11	14	8	9	26	90	43.3	51.1	18.8	M12	HC207	FC207	1.67
207-20	1-1/4	5-5/16	4-21/64	3-1/16	7/16	35164	5/16	23/64	1-I/32	3.5433	1-45164	2.012	0.740	7/16	HC207-20		1.74
207-21	1-5/16														HC207-21		1.70
207-22	1-3/8														HC207-22		1.67
207-23	1-7/16														HC207-23		1.65
HCFC20B	40	145	120	84.8	11	14	10	9	26	100	45.9	56.3	21.4	M12	HC20B	FC208	1.98
20B-24	1-1/2	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-13/16	2.217	0.843	7/16	HC208-24		2.03
20B-25	1-9/16	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-13/16	2.217	0.843	7/16	HC208-25		1.99
HCFC209	45	160	132	93.3	10	16	12	14	26	105	44.9	56.3	21.4	M14	HC209	FC209	2.66
209-26	1-5/8	6-1964	5-13/64	3-43/64	25/64	518	15/32	35/64	1-1/32	4.1339	1-49/64	2.217	0.843	1/2	HC209-26		2.77
209-27	1-11/16														HC209-27		2.72
209-28	1-34														HC209-28		2.68
HCFC210	50	165	138	97.6	10	16	12	14	28	110	48.1	62.7	24.6	M14	HC210	FC210	2.97
210-29	1-13/16	6-1/2	5-7/16	3-27/32	25/64	5/8	15/32	35/64	1-7/64	4.3307	1-5764	2.469	0.969	1/2	HC210-29		3.12
210-30	1-7/8														HC210-30		3.06
210-31	1-15/16														HC210-31		3.00
210-32	2														HC210-32		2.94
HCFC211	55	185	150	106.1	13	19	12	15	31	125	56.6	71.4	27.8	M16	HC211	FC211	4.13
211-32	2	7-9/32	5-2932	4-3/16	33/64	3/4	15/32	19/32	1-7/32	4.9213	2-15/64	2.811	1.094	5/8	HC211-32		4.43
211-33	2-1/16														HC211-33		4.25
211-34	2-1/8														HC211-34		4.18
211-35	2-3/16														HC211-35		4.10
HCFC212	60	195	160	113.1	17	19	12	15	36	135	63.8	77.8	31.0	M16	HC212	FC212	5.01
212-36	2-1/4	7-11/16	6-19/64	4-29/64	43.64	3/4	15/32	19/32	1-27/64	5.3150	2-33/64	3.063	1.220	5/8	HC212-36		5.03
212-37	2-5/16														HC212-37		5.08
212-38	2-3/8														HC212-38		5.01
212-39	2-7/16														HC212-39		5.00
HCFC213	65	205	170	120.2	16	19	14	15	36	145	67.6	85.7	34.1	M16	HC213	FC213	5.84
213-40	2-1/2	8-5/64	6-11/16	4-47/64	518	3/4	35/64	19/32	1-27/64	5.5118	2-2/32	3.374	1.343	5/8	HC213-40		5.94
213-41	2-9/16	8-5/64	6-11/16	4-47/64	518	3/4	35/64	19/32	1-27/64	5.5118	2-2/32	3.374	1.343	5/8	HC213-41		5.83
HCFC214	70	215	177	125.1	17	19	14	18	40	150	68.6	85.7	34.1	M16	HC214	FC214	6.87
214-42	2-518	8-15/32	6-31/32	4-99764	43/64	3/4	3564	23/32	1-37/64	5.9055	2-4564	3.374	1.343	5/8	HC214-42		6.81
214-43	2-11/16														HC214-43		7.00
214-44	2-34														HC214-44		6.88
HCFC215	75	220	184	130.1	18	19	16	18	40	160	72.8	92.1	37.3	M16	HC215	FC215	7.34
215-45	2-13/16	8-21/32	7-1/4	5-1/8	23/32	3/4	518	23/32	1-37/64	6.2992	2-7/8	3.626	1.469	5/8	HC215-45		7.64
215-46	2-7/8														HC215-46		7.51
215-47	2-15/16														HC215-47		7.38
215-48	3														HC215-48		7.24
HCFC216	80	240	200	141.4	18	23	16	18	42	170	75.9	95.2	37.3	M20	HC216	FC216	9.15
216-49	3-1/16	9-29/64	7-7/8	5-9/16	23/32	29/32	518	23/32	1-21/32	6.6929	2-63/64	3.748	1.469	3/4	HC216-49		9.35
216-50	3-1/8														HC216-50		9.21
216-51	3-3/16														UC216-51		9.06
HCFC217	85	250	208	147.1	18	23	18	20	45	180	68.4	73.8	23.4	M20	HC217	FC217	10.43
217-52	3-1/4	9-27/32	8-3/16	5-51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-45164	2.905	0.921	3/4	HC217-52		10.62
217-53	3-5/16														HC217-53		10.50
217-55	3-7/16														HC217-55		10.25
HCFC218	90	265	220	155.5	22	23	18	20	50	190	70.1	72.6	24.5	M20	HC218	FC218	12.06
218-56	3-1/2	10-7/16	8-21/32	6-1/8	55/64	29/32	23/32	25/32	1-31/32	7.4803	2-3/4	2.858	0.964	3/4	HC218-56	FC218	12.15
