Home / All / Mounted Ball Bearing Units / Flange Cartridge Units / UCFC200 Flanged Cartridge Bearing Units

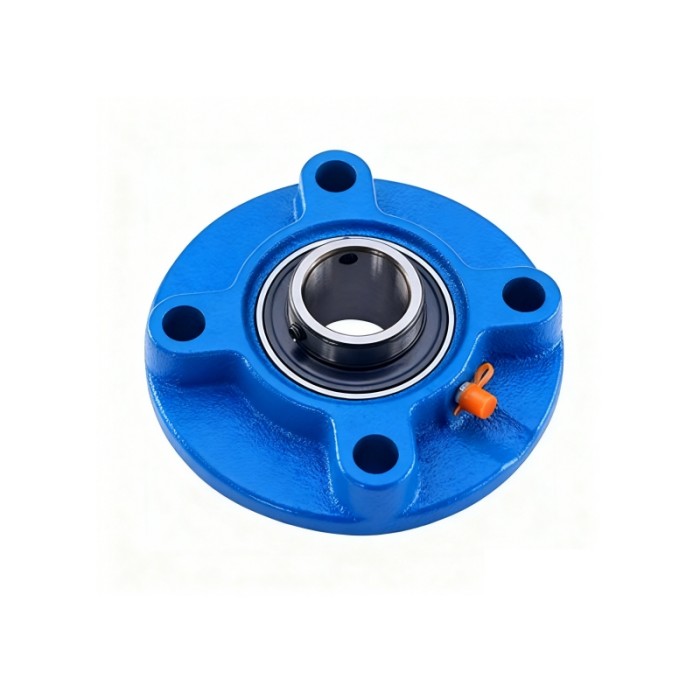

UCFC200 Flanged Cartridge Bearing Units

UCFC200 Flanged Cartridge Units offer rigid mounting, secure shaft locking, and reliable sealing in industrial machinery.

Share
Bearing Insert	UC2 Series
Housing Type	4 bolts round flange housing FC200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Flange Cartridge Bearing Units are compact,ready-to-mount bearing assemblies designed for applications that require strong, face-mounted support in a minimal footprint. These units integrate a high-quality deep-groove ball bearing insert with a cylindrical or square cartridge-style housing, creating a rigid structure that is easy to install and highly stable during operation.

Flange Cartridge Units are widely used in conveyors, agricultural machinery, material-handling systems, fans, and general industrial equipment where a compact mounting style and strong load support are required.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

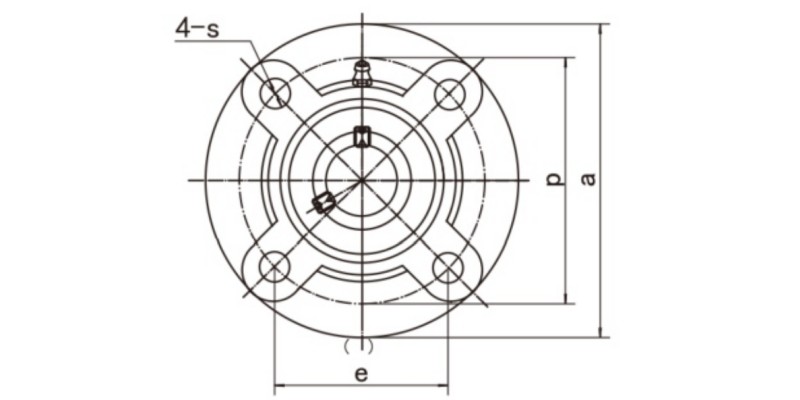

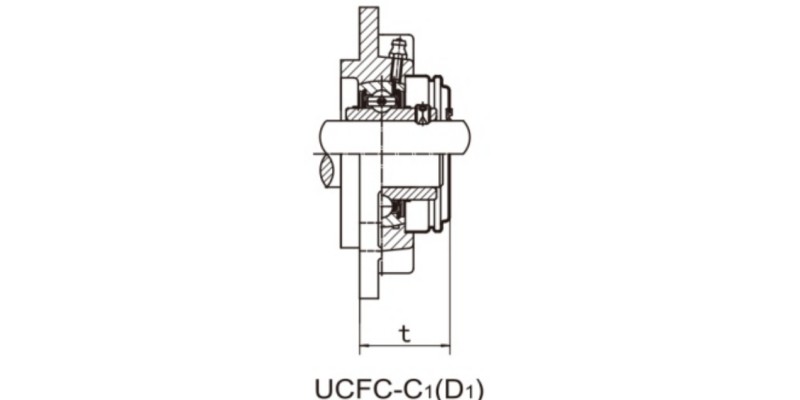

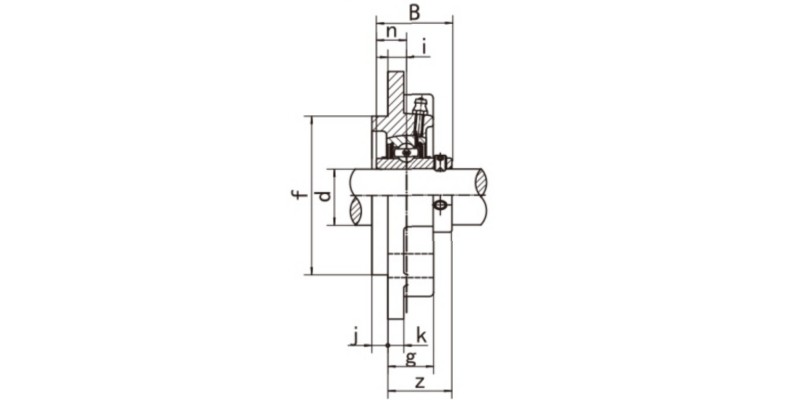

UCFC200 Flange Cartridge Units Dimensions

Unit NO.	d	Dimensions(mm/in.)												n	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	a	P	(e)	i	S	j	k	g	f	z	t	B	n	Bolt Size mm/in.	Bearing No.	Housing No.	Weight (kg)
UCFC201	12	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC201	FC201	0.70
2018	1/2	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	932	13/16	24409	1-1/8	1-9/32	1.2205	0.500	3/8	UC201-8	FC201	0.69
UCFC202	15	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC202	FC202	0.69
202-9	9/16	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9732	13/16	2.4409	1-1/8	1-9/32	1.2205	0.500	3/8	UC202-9		0.69
202-10	5/8	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9732	13/16	2.4409	1-1/8	1-9/32	1.2205	0.500	3/8	UC202-10		0.69
UCFC203	17	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC203	FC203	0.68
203-11	11/16	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	932	13/16	2.4409	1-1/8	1-9732	1.2205	0.500	3/B	UC203-11	FC203	0.67
UCFC204	20	100	78	55.1	10	12	5	7	20.5	62	28.3	32.5	31.0	12.7	M10	UC204	FC204	0.66
204-12	3/4	3-15/16	3-5/64	2-11/64	25/64	15/32	13/64	9/32	13/16	2.4409	1-1/8	1-9732	1.2205	0.500	3/B	UC204-12	FC204	0.66
UCFC205	25	115	90	63.6	10	12	6	7	21	70	29.8	34.0	34.1	14.3	M10	UC205	FC205	0.89
205-13	13/16	4-17/32	3-35/64	2-1/2	25/64	15/32	15/64	9/32	53/64	2.7559	1-11/64	1-11/32	1.3425	0.563	3/8	UC205-13		0.92
205-14	7/8															UC205-14		0.91
205-15	15/16															UC205-15		0.89
205-16	1															UC205-16		0.88
UCFC206	30	125	100	70.7	10	12	8	8	23	80	32.2	36.5	38.1	15.9	M10	UC206	FC206	1.18
206-17	1-1/16	4-59/64	3-15/16	2-25/32	25/64	15/32	5/16	5/16	29/32	3.1496	1-17/64	1-7/16	1.5000	0.626	3/8	UC206-17		1.19
206-18	1-1/8															UC206-18		1.20
206-19	1-3/16															UC206-19		1.18
206-20	1-1/4															UC206-20		1.17
UCFC207	35	135	110	77.8	11	14	8	9	26	90	36.4	41.0	42.9	17.5	M12	UC207	FC207	1.53
207-20	1-1/4	5-5/16	4-21/64	3-1/16	7/16	35/64	5/16	2364	1-1/32	3.5433	1-7/16	1-5/8	1.6890	0.689	7/16	UC207-20		1.59
207-21	1-5/16															UC207-21		1.56
207-22	1-3/8															UC207-22		1.53
207-23	1-7/16															UC207-23		1.50
UCFC208	40	145	120	84.8	11	14	10	9	26	100	41.2	45.5	49.2	19.0	M12	UC208	FC208	1.85
208-24	1-1/2	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-5/8	1-51/64	1.9370	0.748	7/16	UC20B-24		1.89
208-25	1-9/16	5-45/64	4-23/32	3-11/32	7/16	35/64	25/64	23/64	1-1/32	3.9370	1-5/8	1-51/64	1.9370	0.748	7/16	UC208-25		1.86
UCFC209	45	160	132	93.3	10	16	12	14	26	105	40.2	44.5	49.2	19.0	M14	UC209	FC209	2.53
209-26	1-518	6-19/64	5-13/64	3-43/64	25/64	5/8	15/32	35/64	1-1/32	4.1339	1-37/64	1-3/4	1.9370	0.748	1/2	UC209-26		2.63
209-27	1-11/16															UC209-27		2.59
209-28	1-3/4															UC209-28		2.55
UCFC210	50	165	138	97.6	10	16	12	14	28	110	42.6	47.5	51.6	19.0	M14	UC210	FC210	2.78
210-29	1-13/16	6-1/2	5-7/16	3-27/32	25/64	5/8	15/32	35/64	1-7/64	4.3307	1-11/16	1-7/8	2.0315	0.748	1/2	UC210-29		2,90
210-30	1-7/8															UC210-30		2.85
210-31	1-15/16															UC210-31		2.80
210-32	2															UC210-32		2.76
UCFC211	55	185	150	106.1	13	19	12	15	31	125	46.4	51.0	55.6	22.2	M16	UC211	FC211	3.86
211-32	2	7-9/32	5-29/52	4-3/16	33/64	3/4	15/32	19/32	1-7/32	4.9213	1-53/64	2-1/64	2.1890	0.874	5/8	UC211-32		4.01
211-33	2-/16															UC211-33		3.95
211-34	2-1/8															UC211-34		3.91
211-35	2-3/16															UC211-35		3.84
UCFC212	60	195	160	113.1	17	19	12	15	36	135	56.7	61.5	65.1	25.4	M16	UC212	FC212	4.69
212-36	2-1/4	7-11/16	6-19/64	4-29/64	43/64	3/4	15/32	19/32	1-27/64	5.3150	2-15/64	2-27/64	2.5630	1.000	5/8	UC212-36		4.82
212-37	2-5/16															UC212-37		4.74
212-3B	2-318															UC212-38		4.67
212-39	2-7/16															UC212-39		4.60
UCFC213	65	205	170	120.2	16	19	14	15	36	145	55.7	60.5	65.1	25.4	M16	UC213	FC213	5.30
213-40	2-1/2	8-51/64	6-11/16	4.47/64	518	3/4	3564	19/32	1-27/64	5.5118	2-3/16	2-25/64	2.5630	1.000	5/8	UC213-40		5.39
213-41	2-9/16	8-51/64	6-11/16	4.47/64	518	3/4	3564	19/32	1-27/64	5.5118	2-3/16	2-25/64	2.5630	1.000	5/8	UC213-41		5.30
UCFC214	70	215	177	125.1	17	19	14	18	40	150	61.4	67.5	74.6	30.2	M16	UC214	FC214	6.46
214-42	2-5/8	8-15/32	6-31/32	4-59/64	43/64	3/4	35/64	23/32	1-37/64	5.9055	2-13/32	2-21/32	2.9370	1.189	5/8	UC214-42		6.67
214-43	2-11/L6															UC214-43		6.57
214-44	2-3/4															UC214-44		6.47
UCFC215	75	220	184	130.1	18	19	16	18	40	160	62.5	67.5	77.8	33.3	M16	UC215	FC215	6.86
215-45	2-13/16	8-21/32	7-1/4	5-1/8	23/32	34	518	23/32	1-3764	6.2992	2-15/32	2-21/32	3.0630	1.311	5/8	UC215-45		6.86
215-46	2-78															UC215-46		7.11
215-47	2-15/16															UC215-47		7.00
215-48	3															UC215-48		6.80
UCFC216	80	240	200	141.4	18	23	16	18	42	170	67.3	72.5	82.6	33.3	M20	UC216	FC216	8.47
216-49	3-1/16	9-29/64	7-78	5-9/16	23/32	29/32	518	23/32	1-21/32	6.6929	2-21/32	2-5564	3.2520	1.311	3/4	UC216-49		8.65
216-50	3-1/8															UC216-50		8.52
216-51	3-3/16															UC216-51		8.39
UCFC217	85	250	208	147.1	18	23	18	20	45	180	69.6	74.6	85.7	34.1	M20	UC217	FC217	10.18
217-52	3-1/4	9-27/32	8-3/16	5-51/64	23/32	29/32	23/32	25/32	1-25/32	7.0866	2-3/4	2-15/16	3.3740	1.343	3/4	UC217-52		10.30
217-53	3-5/16															UC217-53		10.26
217-55	3-7/16															UC217-55		9.97
UCFC218	90	265	220	155.5	22	23	18	20	50	190	78.3	83.5	96.0	39.7	M20	UC218	FC218	12,24
218-56	3-1/2	10-7/16	8-21/32	6-1/8	55/64	29/32	23/32	25/32	1-31/32	7.4803	3-3/32	3-9/32	3.7795	1.5630	3/4	UC218-56	FC218	12.35
