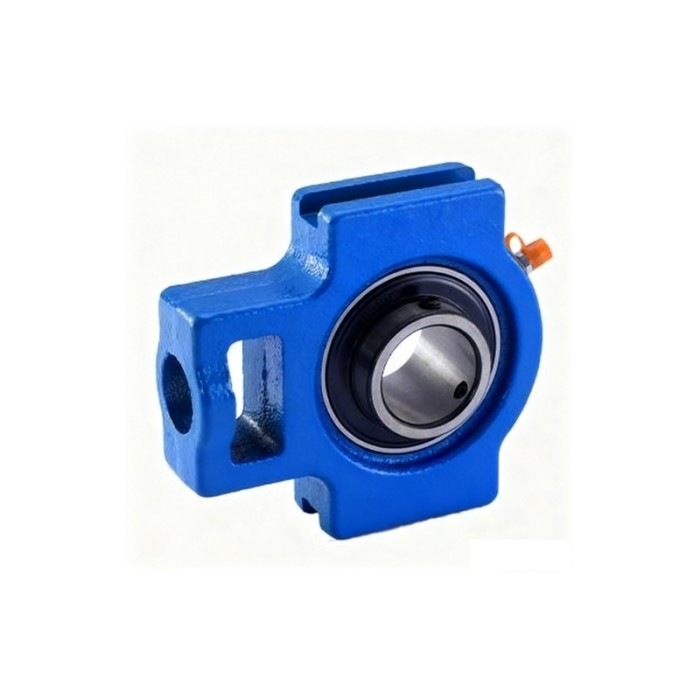

UCT200 Take-up Bearing Units

UCT200 Take-up Bearing Units

UCT200 Take-up Units provide adjustable shaft positioning, strong load support, and reliable sealing for conveyor and tensioning applications.

Share
Bearing Insert	UC2 Series
Housing Type	Take-up housing T200
Material	Cast Iron

Detail Information

Take-Up Bearing Units are adjustable bearing assemblies designed to maintain shaft or belt/chain tension and accommodate misalignment in conveyor systems and other material-handling equipment. The housing is typically made from high-strength cast iron or ductile iron and is engineered with a slot or guide-rail mechanism to enable smooth sliding.t dust, moisture, and contaminants—ensuring long service life and minimal maintenance.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

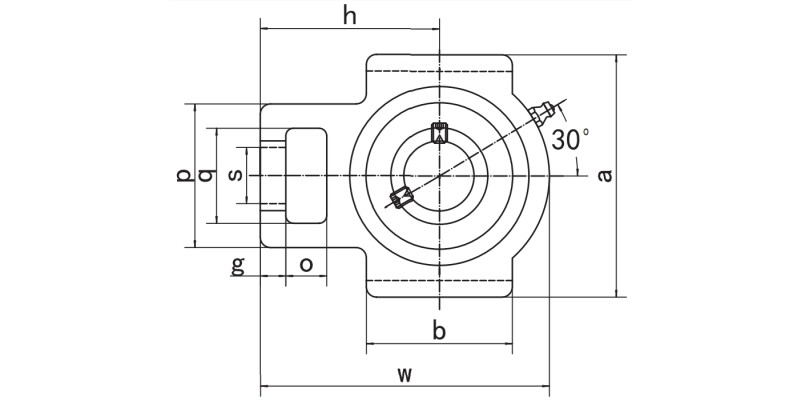

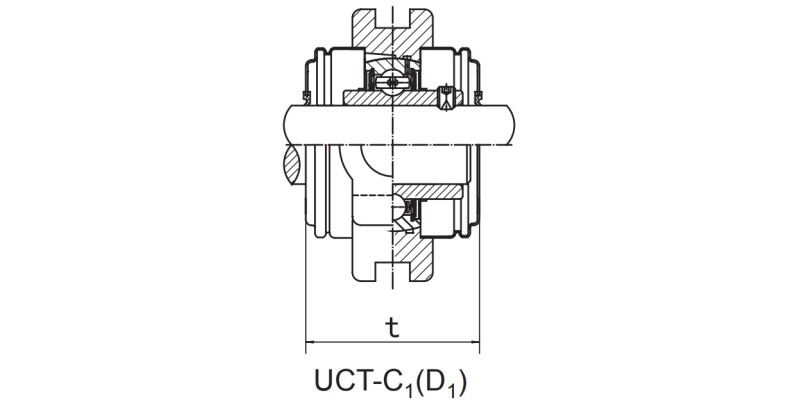

UCT200 Take-up Bearing Units Dimensions

UCT200 Take-up Bearing Units Dimensions

UCT200 Take-up Bearing Units Dimensions

UCT200 Take-up Bearing Units Dimensions

Unit NO.	Dimensions(mm/in.)																	Bearing No.	Housing No.	Weight (kg)
Unit NO.	d	O	g	P	q	S	b	k	e	a	W	j	I	h	t	B	n	Bearing No.	Housing No.	Weight (kg)
UCT201	12	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	UC201	T201	0.77
201-8	1/2	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.500	UC201-8	T201	0.76
UCT202	15	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	UC202	T202	0.76
202-9	9/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.500	UC202-9		0.76
202-10	5/8	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.500	UC202-10		0.76
UCT203	17	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	UC203	T203	0.75
203-11	11/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.500	UC203-11	T203	0.74
UCT204	20	16	10	51	32	19	51	12	76	89	94	32	21	61	44.5	31	12.7	UC204	T204	0.73
204-12	3/4	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-11/16	1-1/4	53/64	2-13/32	1-3/4	1.2205	0.500	UC204-12	T204	0.73
UCT205	25	16	10	51	32	19	51	12	76	89	97	32	24	62	48	34.1	14.3	UC205	T205	0.80
205-13	13/16	5/8	25/64	2-1/64	1-1/4	3/4	2-1/64	15/32	2-63/64	3-1/2	3-13/16	1-1/4	15/16	2-7/16	1-7/8	1.3425	0.563	UC205-13		0.84
205-14	7/8																	UC205-14		0.83
205-15	15/16																	UC205-15		0.81
205-16	1																	UC205-16		0.80
UCT206	30	16	10	56	37	22	57	12	89	102	113	37	28	70	53	38.1	15.9	UC206	T206	122
206-17	1-1/16	5/8	25/64	2-7/32	1-29/64	55/64	2-1/4	15/32	3-1/2	4-1/64	4-29/64	1-29/64	1-3/32	2-3/4	2-3/32	1.5000	0.626	UC206-17		1.23
206-18	1-1/8																	UC206-18		1.24
206-19	1-3/16																	UC206-19		122
206-20	1-1/4																	UC206-20		1.21
UCT207	35	16	13	64	37	22	64	12	89	102	129	37	30	78	59.5	42.9	17.5	UC207	T207	1.57
207-20	1-1/4	5/8	33/64	2-33/64	1-29/64	55/64	2-33/64	15/32	3-1/2	4-1/64	5-5/64	1-29/64	1-3/16	3-5/64	2-11/32	1.6890	0.689	UC207-20		1.63
207-21	1-5/16																	UC207-21		1.60
207-22	1-3/8																	UC207-22		1.57
207-23	1-7/16																	UC207-23		1.54
UCT208	40	19	16	83	49	29	83	16	102	114	144	49	33	89	69	49.2	19	UC208	T208	2.31
208-24	1-1/2	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-19/64	3-1/2	2-23/32	1.9370	0.748	UC208-24		2.35
208-25	1-9/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-31/64	5-43/64	1-15/16	1-19/64	3-1/2	2-23/32	1.9370	0.748	UC208-25		2.32
UCT209	45	19	16	83	49	29	83	16	102	117	144	49	35	87	69	49.2	19	UC209	T209	2.34
209-26	1-5/8	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-43/64	1-15/16	1-3/8	3-27/64	2-23/32	1.9370	0.748	UC209-26		2.44
209-27	1-11/16																	UC209-27		2.40
209-28	1-3/4																	UC209-28		2.36
UCT210	50	19	16	83	49	29	86	16	102	117	149	49	37	90	74.5	51.6	19	UC210	T210	2.47
210-29	1-13/16	3/4	5/8	3-17/64	1-15/16	1-9/64	3-17/64	5/8	4-1/64	4-39/64	5-55/64	1-15/16	1-29/64	3-35/64	2-15/16	2.0315	0.748	UC210-29		2.59
210-30	1-7/8																	UC210-30		2.54
210-31	1-15/16																	UC210-31		2.49
210-32	2																	UC210-32		2.45
UCT211	55	25	19	102	64	35	95	22	130	146	171	64	38	106	76	55.6	22.2	UC211	T211	3.74
211-32	2	63/64	3/4	4-1/64	2-1/32	1-3/8	3-3/4	55/64	5-1/8	5-3/4	6-47/64	2-33/64	1-1/2	4-11/64	3	2.1890	0.874	UC211-32		3.89
211-33	2-1/16																	UC211-33		3.83
211-34	2-1/8																	UC211-34		3.79
211-35	2-3/16																	UC211-35		3.72
UCT212	60	32	19	102	64	35	102	22	130	146	194	64	42	119	89	65.1	25.4	UC212	T212	4.58
212-36	2-1/4	1-17/64	3/4	4-1/64	2-1/32	1-3/8	4-1/64	55/64	5-1/8	5-3/4	7-41/64	2-33/64	1-21/32	4-11/16	3-1/2	2.5630	1.000	UC212-36		4.71
212-37	2-5/16																	UC212-37		4.63
212-38	2-3/8																	UC212-38		4.56
212-39	2-7/16																	UC212-39		4.49
UCT213	65	32	21	111	70	41	121	26	151	167	224	70	44	137	89	65.1	25.4	UC213	T213	6.60
213-40	2-1/2	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-23/32	5-25/64	3-1/2	2.5630	1.000	UC213-40		6.69
213-41	2-9/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-23/32	5-25/64	3-1/2	2.5630	1.000	UC213-41		6.60
UCT214	70	32	21	111	70	41	121	26	151	167	224	70	46	137	98	74.6	30.2	UC214	T214	6.74
214-42	2-5/8	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	8-13/16	2-3/4	1-13/16	5-25/64	3-55/64	2.937	1.189	UC214-42		6.95
214-43	2-11/16																	UC214-43		6.85
214-44	2-3/4																	UC214-44		6.75
UCT215	75	32	21	111	70	41	121	26	151	167	232	70	48	140	99	77.8	33.3	UC215	T215	7.19
215-45	2-13/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	5-15/16	6-37/64	9-9/64	2-3/4	1-57/64	5-33/64	3-57/64	3.0630	1.311	UC215-45		7.19
215-46	2-7/8																	UC215-46		7.44
215-47	2-15/16																	UC215-47		7.33
215-48	3																	UC215-48		7.13
UCT216	80	32	21	111	70	41	121	26	165	184	235	70	51	140	109	82.6	33.3	UC216	T216	8.08
216-49	3-1/16	1-17/64	53/64	4-3/8	2-3/4	1-39/64	4-49/64	1-1/32	6-1/2	7-1/4	9-1/4	2-3/4	2	5-33/64	4-19/64	3.2520	1.311	UC216-49		8.26
216-50	3-1/8																	UC216-50		8.13
216-51	3-3/16																	UC216-51		8.00
UCT217	85	38	29	124	73	48	157	30	173	198	260	73	54	162	113.2	85.7	34.1	UC217	T217	10.66
217-52	3-1/4	1-1/2	1-9/64	4-7/8	2-7/8	1-57/64	6-3/16	1-3/16	6-13/16	7-51/64	10-15/64	2-7/8	2-1/8	6-3/8	4-29/64	3.3740	1.343	UC217-52		10.78
217-53	3-5/16																	UC217-53		10.74
217-55	3-7/16																	UC217-55		10.45
UCT218	90	40	30	130	80	48	140	30	190	215	275	80	55	170	123	96	39.7	UC218	T218	12.19
218-56	3-1/2	1-37/64	1-3/16	5-1/8	3-5/32	1-57/64	5-35/64	1-3/16	7-31/64	8-15/32	10-53/64	3-5/32	2-11/64	6-11/16	4-27/32	3.7795	1.563	UC218-56	T218	12.30
