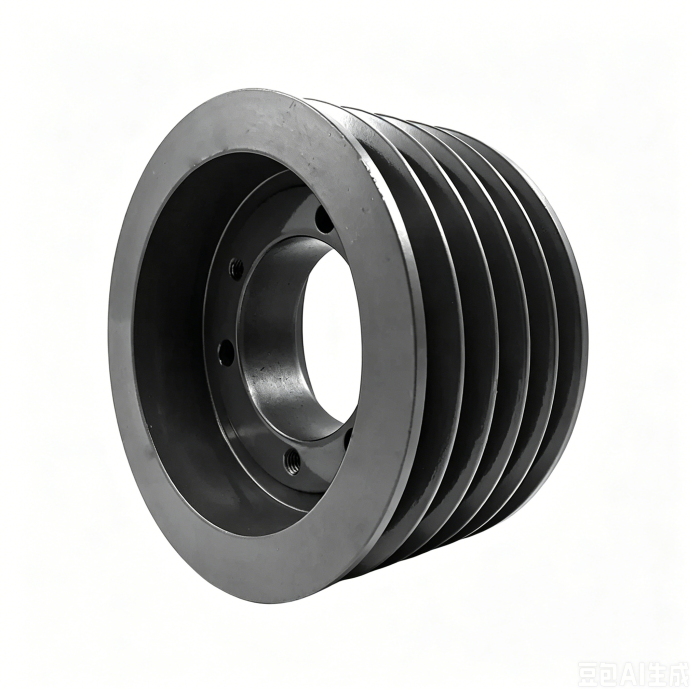

5 Grooves 5V QD Sheave

High-strength cast iron 5 grooves 5V sheave for compact, high-speed industrial power transmission.

Share
Categories	5V V-Belt Sheave
Brand	CTS-ChinaTransmissionS
Model	5-5V QD Sheave
Material	Cast Iron
Belt Type	5V Narrow V-belt
Groove Quantity	5 Grooves
Pilot Bore/ QD Bushed	Black Phosphate/ Anti-Rust Coating
Bore Type	Pilot Bore/ QD Bushed/ Finished Bore
Balance	Dynamically Balanced

Contact Now

Favorites

Detail Information

About 5 Grooves 5V Sheave

A 5V V-Belt Sheave is a narrow V-belt pulley designed for use with 5V section belts commonly used in heavy-duty industrial power transmission systems. Compared with standard classical V-belt pulleys, 5V sheaves provide greater power transmission capacity and improved efficiency in compact drive systems.

Due to their heavy-duty design and reliable transmission performance, 5V sheaves are widely used in industrial equipment operating under high load and continuous working conditions. In North American industrial markets, 5V sheave and 5V pulley are commonly used terms for this type of transmission component.

For more information or to request a quote on our 5 Grooves 5V QD Sheave, please don't hesitate to contact us.

5-5V QD Sheave Dimension

CTS can supply a complete range of 5-groove 5V QD sheave sizes for different transmission requirements.

5 Grooves 5V QD Sheave Size Chart
F = 3 3/4
Part Number	OD	PD	Type	Bush	Bush Max Bore	E★	K	L Length Thru Bore	M★	Wt. Less Bush
Part Number	OD	5V Belt	Type	Bush	Bush Max Bore	E★	K	L Length Thru Bore	M★	Wt. Less Bush
5 5V 440 SD	4.40	4.40	E-1	SD	2	2.5625	-	1.8125	0.625	6.0
5 5V 465 SD	4.65	4.65	E-1	SD	2	2.5625	1.3125	1.8125	0.625	7.0
5 5V 490 SD	4.90	4.90	A-1	SD	2	0.6875	1.3125	1.8125	1.25	8.0
5 5V 520 SD	5.20	5.20	A-1	SD	2	0.6875	1.3125	1.8125	1.25	9.0
5 5V 550 SD	5.5	5.5	A-1	SD	2	0.6875	1.3125	1.8125	1.25	10.0
5 5V 590 SK	5.90	5.90	A-1	SK	2.625	0.625	1.3125	1.9375	1.1875	11.0
5 5V 630 SK	6.30	6.30	A-1	SK	2.625	0.625	1.3125	1.9375	1.1875	12.0
5 5V 670 SF	6.70	6.70	A-1	SF	2.9375	0.625	1.3125	2.0625	1.0625	13.0
5 5V 710 SF	7.10	7.10	A-1	SF	2.9375	0.6875	1.375	2.0625	1	14.0
5 5V 750 SF	7.5	7.5	A-1	SF	2.9375	0.6875	1.375	2.0625	1	16.0
5 5V 800 E	8	8	A-1	E	3.5	0.875	1.75	2.625	0.25	19.0
5 5V 850 E	8.5	8.5	A-1	E	3.5	0.875	1.75	2.625	0.25	22.0
5 5V 900 E	6	6	A-1	E	3.5	0.875	1.75	2.625	0.25	26.0
5 5V 925 E	9.25	9.25	A-1	E	3.5	0.875	1.75	2.625	0.25	28.0
5 5V 975 E	9.75	9.75	A-1	E	3.5	0.875	1.75	2.625	0.25	30.0
5 5V 1030 E	10.30	10.30	A-1	E	3.5	0.875	1.75	2.625	0.25	33.0
5 5V 1090 E	10.90	10.90	A-1	E	3.5	0.875	1.75	2.625	0.25	41.0
5 5V 1130 E	11.30	11.30	A-1	E	3.5	0.875	1.75	2.625	0.25	42.0
5 5V 1180 E	11.80	11.80	A-1	E	3.5	0.875	1.75	2.625	0.25	44.0
5 5V 1250 E	12.5	12.5	A-3	E	3.5	0.875	1.75	2.625	0.25	45.0
5 5V 1320 E	13.20	13.20	A-3	E	3.5	0.875	1.75	2.625	0.25	46.0
5 5V 1400 E	14	14	A-3	E	3.5	0.875	1.75	2.625	0.25	47.0
5 5V 1500 E	15	15	A-3	E	3.5	0.875	1.75	2.625	0.25	53.0
5 5V 1600 E	16	16	A-3	E	3.5	0.875	1.75	2.625	0.25	56.0
5 5V 1870 F	18.7	18.7	B-3	F	3.9375	0.3125	1.3125	3.625	0.1875	96.0
5 5V 2120 F	21.20	21.20	B-3	F	3.9375	0.3125	1.3125	3.625	0.1875	98.0
5 5V 2360 F	23.60	23.60	B-3	F	3.9375	0.3125	1.3125	3.625	0.1875	120.0
5 5V 2800 F	28	28	B-3	F	3.9375	0.3125	1.3125	3.625	0.1875	135.0
5 5V 3150 J	31.5	31.5	C-3	J	4.5	0.1875	1	4.5	0.5625	188.0
5 5V 3750 J	37.5	37.5	C-3	J	4.5	0.1875	1	4.5	0.5625	224.0
5 5V 5000 J	50	50	C-3	J	4.5	0.1875	1	4.5	0.5625	308.0

Additional sizes and customized dimensions are available according to customer requirements.

Compatible QD Bushings

CTS also supplies compatible QD bushings designed for use with our QD sheaves and other standard industrial belt pulley systems. Our QD bushings can directly replace many popular brands such as Martin, Browning, TB Woods, and other standard QD bushing systems commonly used in North American industrial applications.

QD Bushing Type
JA Bushing	SH Bushing	SDS Bushing	SD Bushing
SK Bushing	SF Bushing	E Bushing	F Bushing
J Bushing	M Bushing	N Bushing	P Bushing
W Bushing	S Bushing

Bore & Mounting Options

CTS offers various mounting configurations for different industrial shaft systems.

Pilot Bore 5V Sheave

Suitable for customers requiring custom machining of bore and keyway dimensions.

Finished Bore 5V Sheave

Supplied with finished bore and keyway for direct installation.

QD Bushed 5V Sheave

Quick detachable bushing design for easier installation, maintenance, and shaft replacement.
