5V V-Belt Sheave
5V V-belt Sheave
CTS supplies high-performance 5V V-Belt Sheaves for heavy-duty industrial power transmission systems. Manufactured from high-strength cast iron and precision-machined for stable operation, our 5V QD sheaves are widely used in compressors, pumps, mining equipment, conveyor systems, crushers, and other demanding industrial applications.
Designed for use with 5V narrow V-belts, these sheaves provide higher horsepower transmission capacity and improved transmission efficiency compared with classical V-belt pulleys. CTS offers complete 5V sheave configurations, including pilot bore, finished bore, and QD bushed designs for different industrial installation requirements.
5V Sheave Configurations
Custom sizes and configurations are available according to customer drawings or application requirements.
5V Sheave Selection
| Image | 5V V-Belt Sheave | Description | In stock | More |
|---|---|---|---|---|

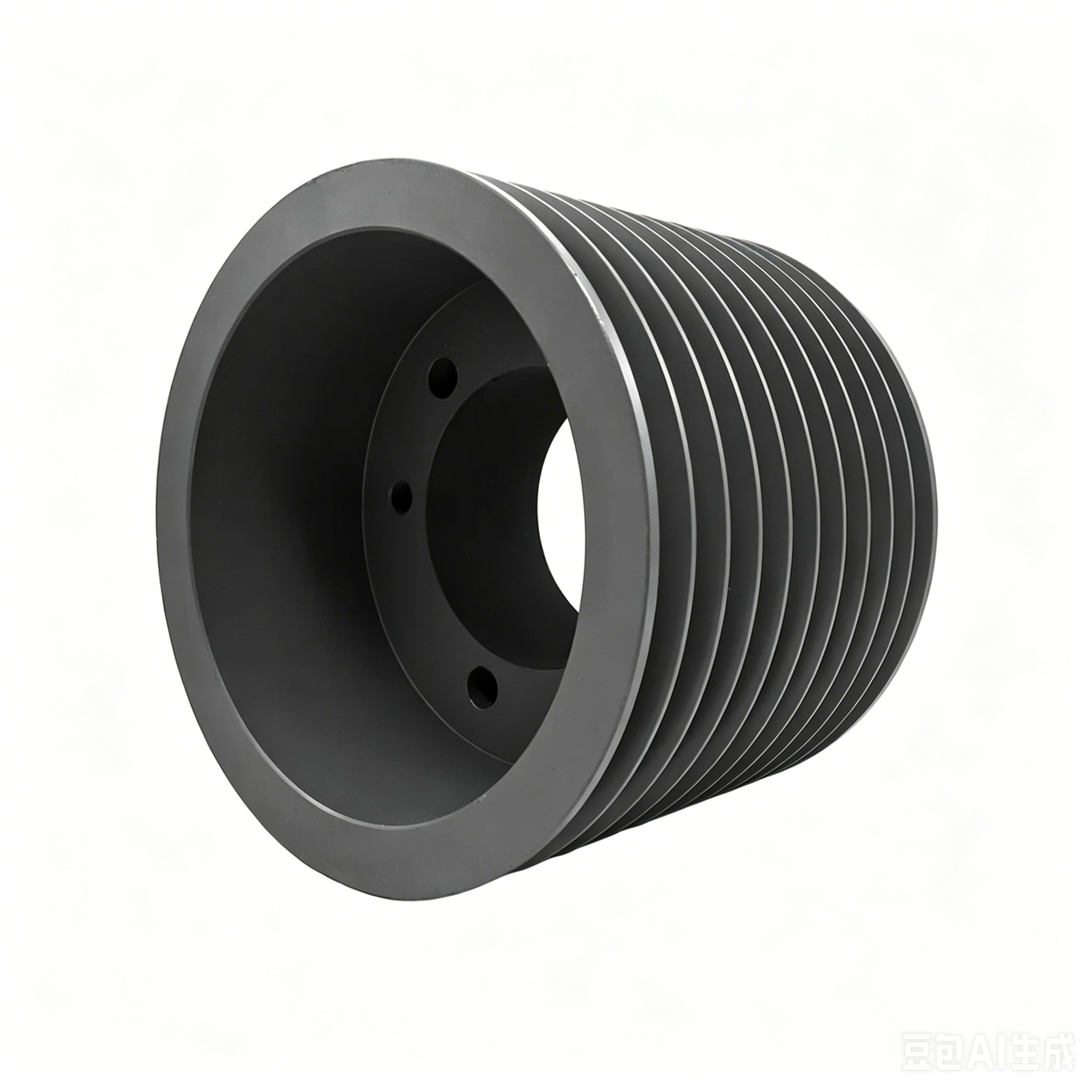

 | 10 Grooves 5V QD Sheave | High-strength cast iron 10 grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock | |
| 9 Grooves 5V QD Sheave | High-strength cast iron 9 grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock | |
 | 8 Grooves 5V QD Sheave | High-strength cast iron 8 grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock | |
 | 7 Grooves 5V QD Sheave | High-strength cast iron 7 grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock | |
| 6 Grooves 5V QD Sheave | High-strength cast iron 6 grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock | |

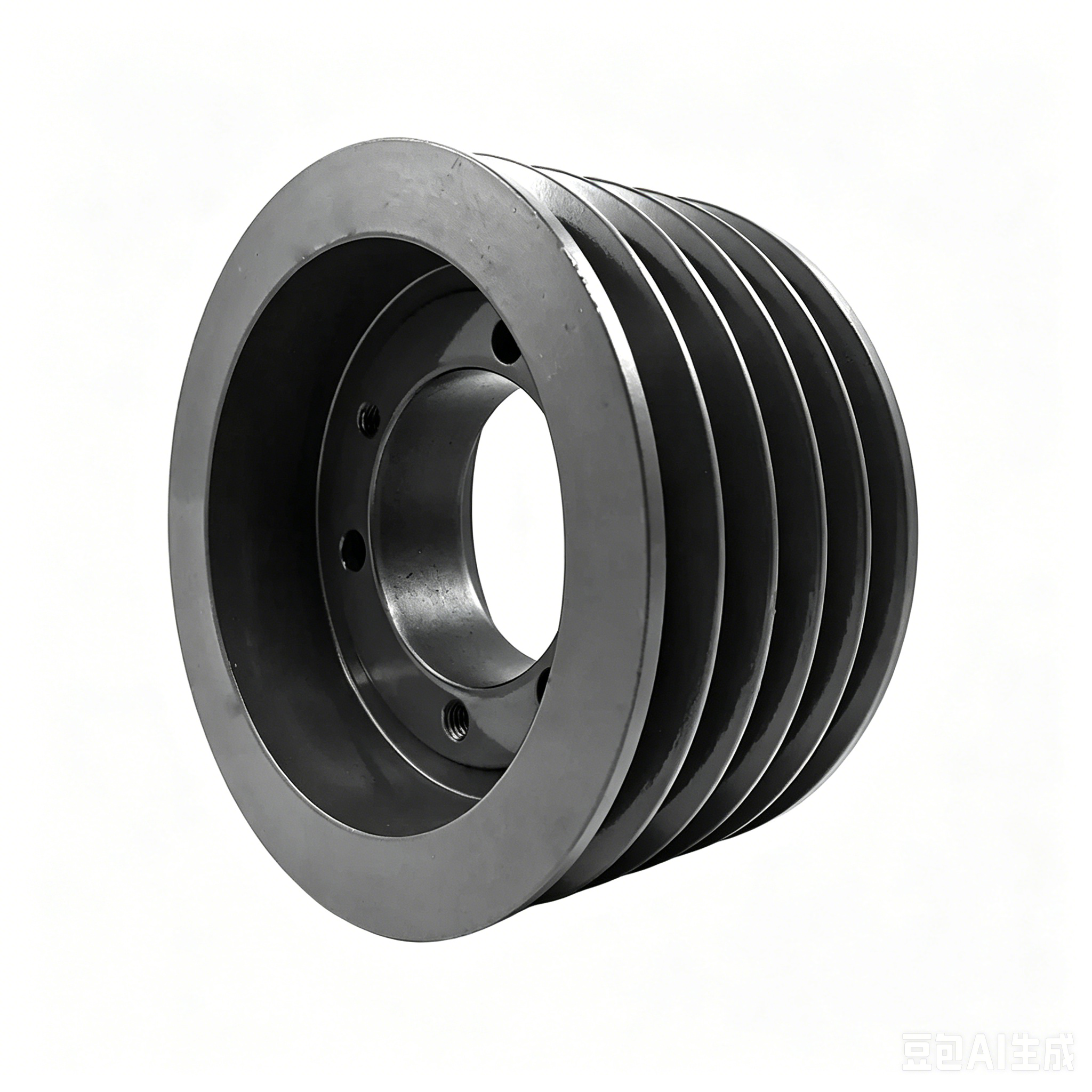

 | 5 Grooves 5V QD Sheave | High-strength cast iron 5 grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock | |
 | 4 Grooves 5V QD Sheave | High-strength cast iron 4 grooves 5V sheave for compact, high-speed industrial power transmission. | Available Now | |
 | 3 Grooves 5V QD Sheave | High-strength cast iron triple grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock | |
 | 2 Grooves 5V QD Sheave | High-strength cast iron double grooves 5V sheave for compact, high-speed industrial power transmission. | In Stock |
Applications of 5V Sheaves
HVAC System
Used in industrial fans, blowers, and ventilation equipment requiring stable high-speed operation.
Pumps & Compressors
Widely applied in pump drives and compressor systems where compact transmission design and reliable performance are required.
Mining & Aggregate Equipment
Suitable for crushers, screening machines, and conveyor systems operating under heavy-duty conditions.
Agricultural Machinery
Applied in harvesting equipment, grain handling systems, and various agricultural drive applications.
Conveyor & Material Handling System
Used in industrial conveyors and automated production systems for efficient power transmission.
General Industrial Machinery
Suitable for machine tools, packaging equipment and other industrial power transmission systems.
Precision Manufacturing of Cast Iron 5V Sheaves
CTS manufactures cast-iron 5V sheaves using advanced production and inspection equipment to ensure consistent quality and reliable transmission performance.
Our manufacturing process includes:
High-quality cast iron casting
CNC turning and groove machining
Precision bore processing
Dynamic balancing
Groove profile inspection
Surface treatment and rust protection
Final dimensional inspection
Every cast iron 5V sheave is inspected before shipment to ensure smooth operation, proper belt fit, and long service life.
Why Choose CTS 5V Sheave
High-Strength Cast Iron
Pilot Bore/ QD/ Finished Bore
Support OEM Service
Export North America/ Europe
Bulk Order Support
Drawing & Selection Assistance
Need Help Selecting the Right 5V Sheave?
CTS provides professional support for industrial power transmission applications. Send us your belt type, shaft size, RPM, and application details for fast product selection and quotation support.
FAQ
What is the difference between 3V and 5V sheaves?
5V sheaves are designed for higher horsepower transmission and heavier industrial loads compared with 3V sheaves.
Are your 5V sheaves dynamically balanced?
Yes, many models are dynamically balanced for reduced vibration and stable high-speed operation.
