Home / All / Mounted Ball Bearing Units / Square Flanged Units / HCF200 Square Flanged Ball Bearing Units

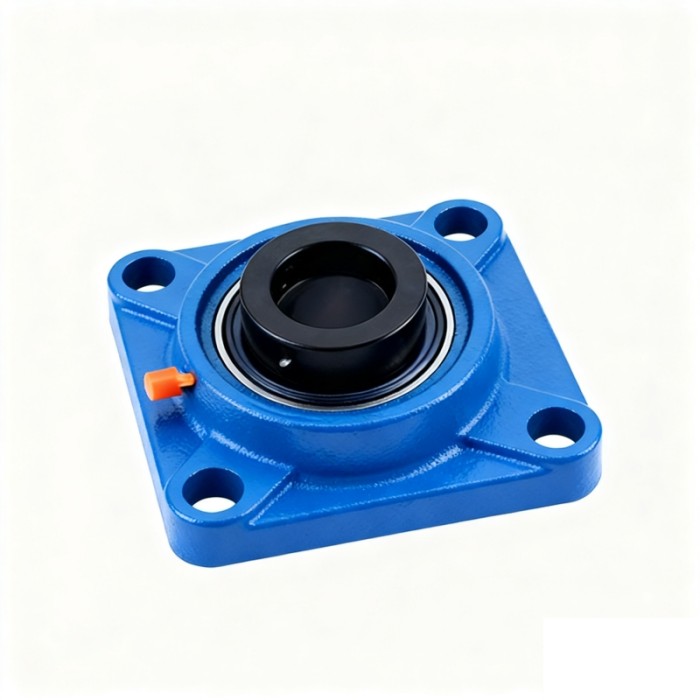

HCF200 Square Flanged Ball Bearing Units

HCF200 Square Flanged Bearing Units provide secure four-bolt mounting, strong shaft support, and reliable sealed performance.

Share
Bearing Insert	HC2 Series
Housing Type	4-bolts square flange housing F200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Square Flanged Ball Bearing Units are ready-to-install housed bearing assemblies that combine a deep-groove ball bearing insert with a four-bolt square flange housing. They are designed for secure,face-mounted installation, making them ideal for applications where a shaft passes through a wall, frame, or mounting panel and requires stable and reliable support.

These units feature a robust square four-bolt flange design that ensures firm attachment to flat surfaces and provides excellent resistance to radial and moderate axial loads.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

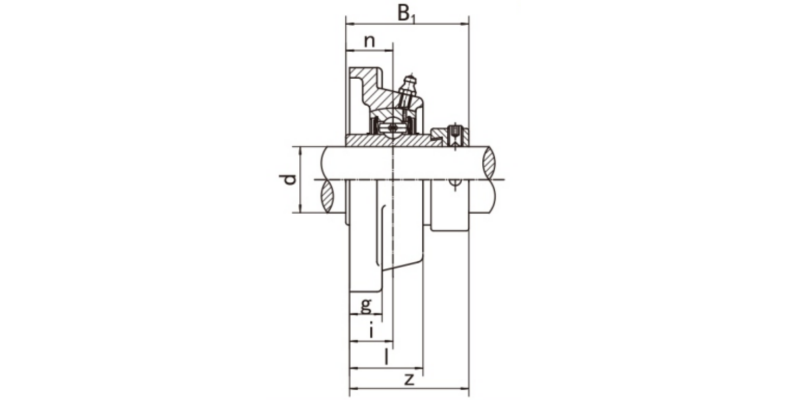

HCF200 Square Flanged Units Dimensions

Unit NO.	Dimensions(mm/in.)										Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
Unit NO.	d	a	e	i	9	I	S	Z	B1	n	Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
HCF204	20	86	64	15	12	25.5	12	41.6	43.7	17.1	M10	HC204	F204	0.60
204-12	3/4	3-3/8	2-33/64	19/32	15/32	1	15/32	1-41/64	1.720	0.673	3/8	HC204-12	F204	0.60
HCF205	25	95	70	16	14	27	12	42.9	44.4	17.5	M10	HC205	F205	0.79
205-13	13/16	3-3/4	2-3/4	5/8	35/64	1-1/16	15/32	1-11/16	1.748	0.689	3/8	HC205-13		0.84
205-14	7/8											HC205-14		0.83
205-15	15/16											HC205-15		0.81
205-16	1											HC205-16		0.79
HCF206	30	108	83	18	14	31	12	48.1	48.4	18.3	M10	HC206	F206	1.10
206-17	1-1/16	4-1/4	3-17/64	45/64	35/64	1-7/32	15/32	1-57/64	1.906	0.720	3/8	HC206-17		1.15
206-18	1-1/8											HC206-18		1.12
206-19	1-3/16											HC206-19		1.10
206-20	1-1/4											HC206-20		1.07
HCF207	35	117	92	19	16	34	14	51.3	51.1	18.8	M12	HC207	F207	1.47
207-20	1-1/4	4-39/64	3-5/8	3/4	5/8	1-11/32	35/64	2-1/64	2.012	0.740	7/16	HC207-20		1.54
207-21	1-5/16											HC207-21		1.50
207-22	1-3/8											HC207-22		1.47
207-23	1-7/16											HC207-23		1.45
HCF208	40	130	102	21	16	36	16	55.9	56.3	21.4	M14	HC208	F208	1.80
208-24	1-1/2	5-1/8	4-1/64	53/64	5/8	1-27/32	5/8	2-13/64	2.217	0.843	1/2	HC208-24		1.85
208-25	1-9/16	5-1/8	4-1/64	53/64	5/8	1-27/32	5/8	2-13/64	2.217	0.843	1/2	HC208-25		1.81
HCF209	45	137	105	22	18	38	16	56.9	56.3	21.4	M14	HC209	F209	2.13
209-26	1-5/8	5-13/32	49/64	55/64	23/32	1-1/2	5/8	2-15/64	2.217	0.843	1/2	HC209-26		2.24
209-27	1-11/16											HC209-27		2.19
209-28	1-3/4											HC209-28		2.15
HCF210	50	143	111	22	18	40	16	60.1	62.7	24,6	M14	HC210	F210	2.51
210-29	1-13/16	5-5/8	4-3/8	55/64	23/32	1-9/16	5/8	2-3/8	2.469	0.969	1/2	HC210-29		2.66
210-30	1-7/8											HC210-30		2.60
210-31	1-15/16											HC210-31		2.54
210-32	2											HC210-32		2.48
HCF211	55	162	130	25	20	43	19	68.6	71.4	27.8	M16	HC211	F211	3.39
211-32	2	6-3/8	5-1/8	63/64	25/32	1-11/16	3/4	2-45/64	2.811	1.094	5/8	HC211-32		3.69
211-33	2-1/16											HC211-33		3.51
211-34	2-1/8											HC211-34		3.44
211-35	2-3/16											HC211-35		3.36
HCF212	60	175	143	29	20	48	19	75.8	77.8	31.0	M16	HC212	F212	4.27
212-36	2-1/4	6-57/64	5-5/8	1-9/64	25/32	1-57/64	3/4	2-63/64	3.063	1.22	5/8	HC212-36		4.28
212-37	2-5/16											HC212-37		4.34
212-38	2-3/8											HC212-38		4.27
212-39	2-7/16											HC212-39		4.26
HCF213	65	187	149	30	22	50	19	81.6	85.7	34.1	M16	HC213	F213	5.35
213-40	2-1/2	7-23/64	5-55/64	1-3/16	55/64	1-31/32	3/4	3-7/32	3.374	1.343	5/8	HC213-40		5.45
213-41	2-9/16	7-23/64	5-55/64	1-3/16	55/64	1-31/32	3/4	3-7/32	3.374	1.343	5/8	HC213-41		5.34
HCF214	70	193	152	31	22	54	19	82.6	85.7	34.1	M16	HC214	F214	5.84
214-42	2-5/8	7-19/32	5-63/64	1-7/32	55/64	2-1/8	3/4	3-1/4	3.374	1.343	5/8	HC214-42		5.78
214-43	2-11/16											HC214-43		5.97
214-44	2-3/4											HC214-44		5.85
HCF215	75	200	159	34	22	56	19	88.8	92.1	37.3	M16	HC215	F215	6.43
215-45	2-13/16	7-7/8	6-17/64	1-11/32	55/64	2-7/32	3/4	3-1/2	3.626	1.426	5/8	HC215-45		6.73
215-46	2-7/8											HC215-46		6.60
215-47	2-15/16											HC215-47		6.47
215-48	3											HC215-48		6.33
HCF216	80	208	165	34	22	58	23	91.9	95.2	37.3	M20	HC216	F216	7.59
216-49	3-1/16	8-3/16	6-1/2	1-11/32	55/64	2-9/32	29/32	3-5/8	3.748	1.469	3/4	HC216-49		7.79
216-50	3-1/8											HC216-50		7.65
216-51	3-3/16											HC216-51		7.50
HCF217	85	220	175	36	24	63	23	86.4	73.8	23.4	M20	HC217	F217	8.52
217-52	3-1/4	8-21/23	6-57/64	1-27/64	15/16	2-15/32	29/32	3-13/32	2.906	0.921	3/4	HC217-52		8.71
217-53	3-5/16											HC217-53		8.59
217-55	3-7/16											HC217-55		8.34
HCF218	90	235	187	40	24	68	23	88.1	72.6	24.5	M20	HC218	F218	9.95
218-56	3-1/2	9-1/4	7-23/64	1-37/64	15/16	2-11/16	29/32	3-15/32	3.7795	1.563	3/4	HC218-56	F218	10.04
