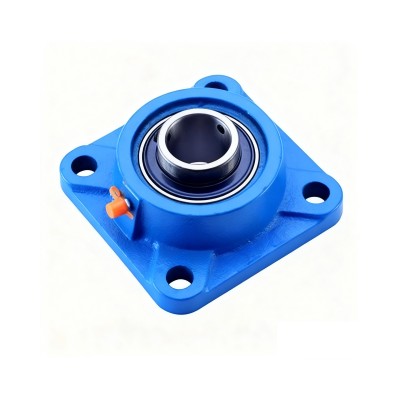

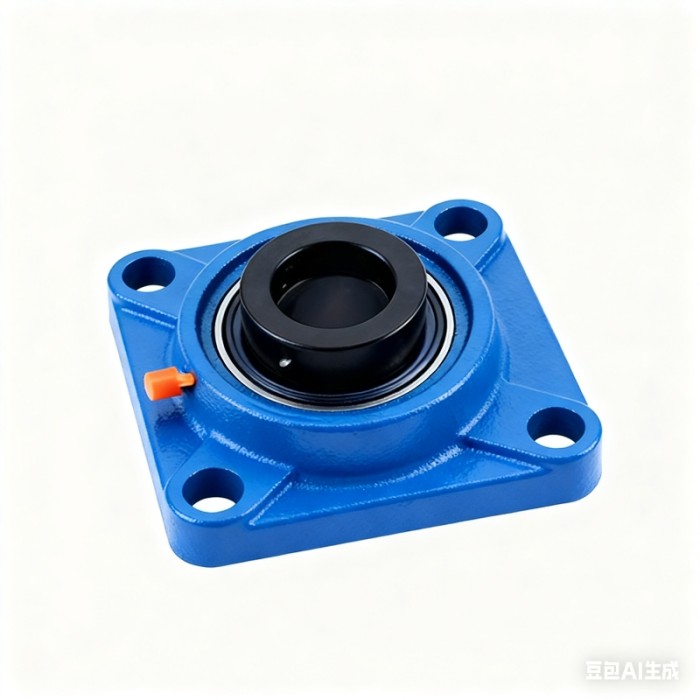

UCF200 Square Flanged Ball Bearing Units

UCF200 Square Flanged Bearing Units provide secure four-bolt mounting, strong shaft support, and reliable sealed performance.

Share
Bearing Insert	UC2 Series
Housing Type	4-bolts square flange housing F200
Material	Cast Iron

Contact Now

Favorites

Detail Information

Square Flanged Ball Bearing Units are ready-to-install housed bearing assemblies that combine a deep-groove ball bearing insert with a four-bolt square flange housing. They are designed for secure,face-mounted installation, making them ideal for applications where a shaft passes through a wall, frame, or mounting panel and requires stable and reliable support.

These units feature a robust square four-bolt flange design that ensures firm attachment to flat surfaces and provides excellent resistance to radial and moderate axial loads.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

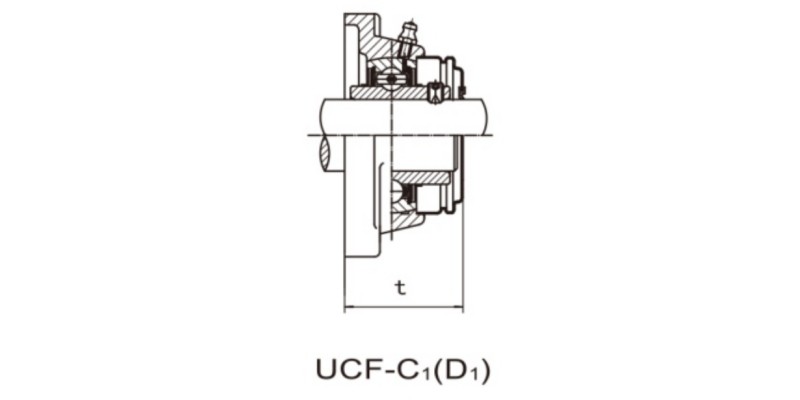

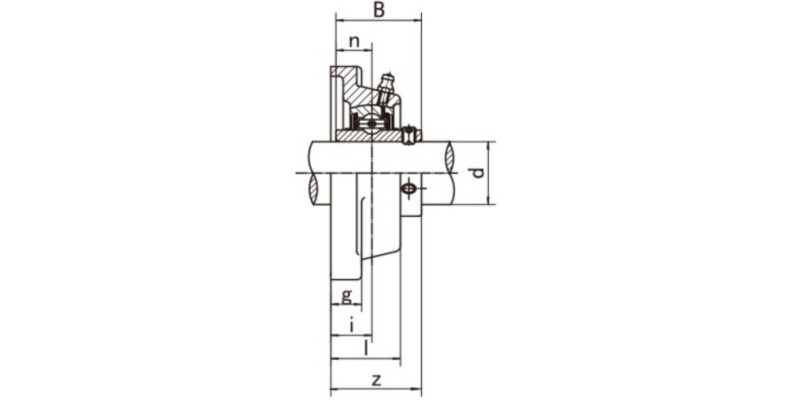

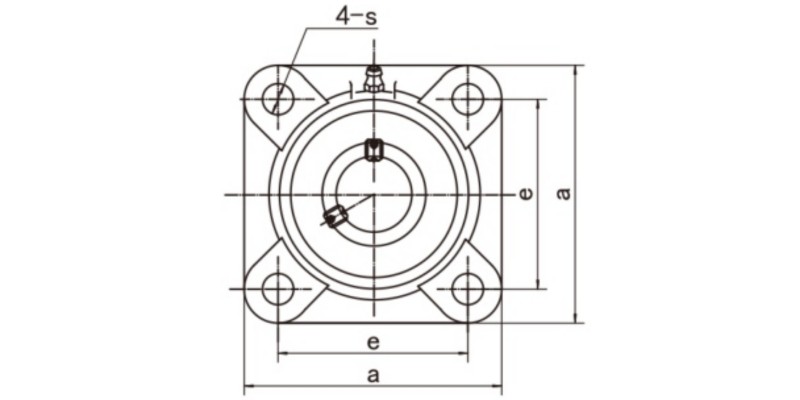

UCF200 Square Flanged Units Dimensions

Unit NO.	Dimensions(mm/in.)											Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
Unit NO.	d	a	e	i	g	I	S	Z	t	B	n	Bolt Size mm/in.	Bearing No	Housing No.	Weight (kg)
UCF201	12	86	64	15	12	25.5	12	33.3	39	31	12.7	M10	UC201	F201	0.59
201-8	1/2	3-25/64	2-33/64	19/32	15/32	1	15/32	1-5/16	1-17/32	1.2205	0.500	3/8	UC201-8	F201	0.58
UCF202	15	86	64	15	12	25.5	12	33.3	39	31	12.7	M10	UC202	F202	0.58
202-9	9/16	3-25/64	2-33/64	19/32	15/32	1	15/32	1-5/16	1-17/32	1.2205	0.500	3/8	UC202-9		0.58
202-10	5/8	3-25/64	2-33/64	19/32	15/32	1	15/32	1-5/16	1-17/32	1.2205	0.500	3/8	UC202-10		0.58
UCF203	17	86	64	15	12	25.5	12	33.3	39	31	12.7	M10	UC203	F203	0.57
203-11	11/16	3-25/64	2-33/64	19/32	15/32	1	15/32	1-5/16	1-17/32	1.2205	0.500	3/8	UC203-11	F203	0.56
UCF204	20	86	64	15	12	25.5	12	33.3	39	31	12.7	M10	UC204	F204	0.55
204-12	3/4	3-25/64	2-33/64	19/32	15/32	1	15/32	1-5/16	1-17/32	1.2205	0.500	3/8	UC204-12	F204	0.55
UCF205	25	95	70	16	14	27	12	35.8	41	34.1	14.3	M10	UC205	F205	0.73
205-13	13/16	3-47/64	2-3/4	5/8	35/64	1-1/16	15/32	1-13/32	1-39/64	1.3425	0.563	3/8	UC205-13		0.77
205-14	7/8												UC205-14		0.76
205-15	15/16												UC205-15		0.74
205-16	1												UC205-16		0.73
UCF206	30	108	83	18	14	31	12	40.2	45.5	38.1	15.9	M10	UC206	F206	1.02
206-17	1-1/16	4-1/4	3-17/64	45/64	35/64	1-7/32	15/32	1-19/32	1-51/64	1.5000	0.626	3/8	UC206-17		1.03
206-18	1-1/8												UC206-18		1.04
206-19	1-3/16												UC206-19		1.02
206-20	1-1/4												UC206-20		1.01
UCF207	35	117	92	19	16	34	14	44.4	48.5	42.9	17.5	M12	UC207	F207	1.33
207-20	1-1/4	4-39/64	3-5/8	3/4	518	1-11/32	35/64	1-3/4	1-29/32	1.6890	0.689	7/16	UC207-20		1.40
207-21	1-5/16												UC207-21		1.37
207-22	1-3/8												UC207-22		1.34
207-23	1-7/16												UC207-23		1.31
UCF208	40	130	102	21	16	36	16	51.2	55.5	49.2	19	M14	UC208	F208	1.67
208-24	1-1/2	5-1/8	4-1/64	53/64	518	1-27/64	5/8	2-1/64	2-3/16	1.9370	0.748	1/2	UC208-24		1.71
208-25	1-9/16	5-1/8	4-1/64	53/64	518	1-27/64	5/8	2-1/64	2-3/16	1.9370	0.748	1/2	UC208-25		1.68
UCF209	45	137	105	22	18	38	16	52.2	56.5	49.2	19	M14	UC209	F209	2.00
209-26	1-5/8	5-13/32	4-9/64	55/64	23/32	1-1/2	5/8	2-1/16	2-7/32	1.9370	0.748	1/2	UC209-26		2.10
209-27	1-11/16												UC209-27		2.06
209-28	1-3/4												UC209-28		2.02
UCF210	50	143	111	22	18	40	16	54.6	59	51.6	19	M14	UC210	F210	2.32
210-29	1-13/16	5-5/8	4-3/8	55/64	23/32	1-9/16	5/8	2-5/32	2-21/64	2.0315	0.748	1/2	UC210-29		2.44
210-30	1-7/8												UC210-30		2.39
210-31	1-15/16												UC210-31		2.34
210-32	2												UC210-32		2.30
UCF211	55	162	130	25	20	43	19	58.4	63	55.6	22.2	M16	UC211	F211	3.12
211-32	2	6-3/8	5-1/8	63/64	25/32	1-11/16	3/4	2-5/16	2-31/64	2.1890	0.874	5/8	UC211-32		3.27
211-33	2-1/16												UC211-33		3.21
211-34	2-1/8												UC211-34		3.17
211-35	2-3/16												UC211-35		3.10
UCF212	60	175	143	29	20	48	19	68.7	73.5	65.1	25.4	M16	UC212	F212	3.95
212-36	2-1/4	6-57/64	5-5/8	1-9/64	25/32	1-57/64	3/4	2-45/64	2-57/64	2.5630	1.000	5/8	UC212-36		4.08
212-37	2-5/16												UC212-37		4.00
212-38	2-3/8												UC212-38		3.93
212-39	2-7/16												UC212-39		3.86
UCF213	65	187	149	30	22	50	19	69.7	74.5	65.1	25.4	M16	UC213	F213	4.81
213-40	2-1/2	7-23/64	5-55/64	1-3/16	55/64	1-31/32	3/4	2-3/4	2-15/16	2.5630	1.000	5/8	UC213-40		4.90
213-41	2-9/16	7-23/64	5-55/64	1-3/16	55/64	1-31/32	3/4	2-3/4	2-15/16	2.5630	1.000	5/8	UC213-41		4.81
UCF214	70	193	152	31	22	54	19	75.4	80	74.6	30.2	M16	UC214	F214	5.42
214-42	2-518	7-19/32	5-63/64	1-7/32	55/64	2-1/8	3/4	2-31/32	3-5/32	2.9370	1.189	5/8	UC214-42		5.63
214-43	2-11/16												UC214-43		5.53
214-44	2-3/4												UC214-44		5.43
UCF215	75	200	159	34	22	56	19	78.5	83.5	77.8	33.3	M16	UC215	F215	5.94
215-45	2-13/16	7-7/8	6-17/64	1-11/32	55/64	2-7/32	3/4	3-3/32	3-9/32	3.0630	1.311	5/8	UC215-45		5.94
215-46	2-7/8												UC215-46		6.19
215-47	2-15/16												UC215-47		6.08
215-48	3												UC215-48		5.88
UCF216	80	208	165	34	22	58	23	83.3	88.5	82.6	33.3	M20	UC216	F216	6.94
216-49	3-1/16	8-3/16	6-1/2	1-11/32	55/64	2-9/32	29/32	3-9/32	3-31/64	3.2520	1.311	3/4	UC216-49		7.12
216-50	3-1/8												UC216-50		6.99
216-51	3-3/16												UC216-51		6.86
UCF217	85	220	175	36	24	63	23	87.6	92.6	85.7	34.1	M20	UC217	F217	8.67
217-52	3-1/4	8-21/23	6-57/64	1-27/64	15/16	2-15/32	29/32	3-7/16	3-41/64	3.3740	1.343	3/4	UC217-52		8.79
217-53	3-5/16												UC217-53		8.75
217-55	3-7/16												UC217-55		8.46
UCF218	90	235	187	40	24	68	23	96.3	101.5	96	39.7	M20	UC218	F218	10.62
218-56	3-1/2	9-1/4	7-23/64	1-37/64	15/16	2-11/16	29/32	3-25/32	4	3.7795	1.5630	3/4	UC218-56	F218	10.73
