QD Bushing Test
QD Bushing — Quick-Disconnect Bushings, In Stock
Stock and custom QD bushings for mounting sprockets, sheaves and pulleys onto a shaft. Split, keyed, and made to the same dimensional standard as the hubs already running in your plant.
- In stock & ready to ship
- JA through S types
- Custom bores & keyways
- Matched to your old part number
Get a Free Quote Browse QD Sizes
Send the type letter (JA, SH, SDS, SD, SK, SF, E, F, J, M, N, P, W, S) and the bore, and we will confirm stock and price the same working day.
Browse QD Bushing Types
Most buyers arrive holding the type letter stamped on an existing hub. Pick yours below, or send us the letter and bore and we will confirm the match before you order.
Type not listed? Send us the part number and we will check availability.
What Is a QD Bushing?

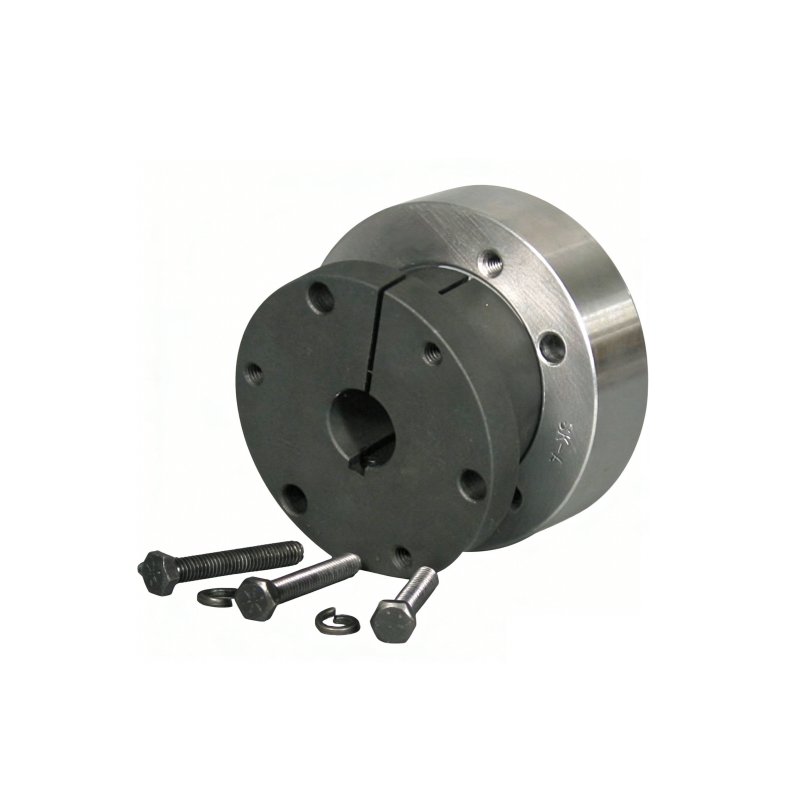

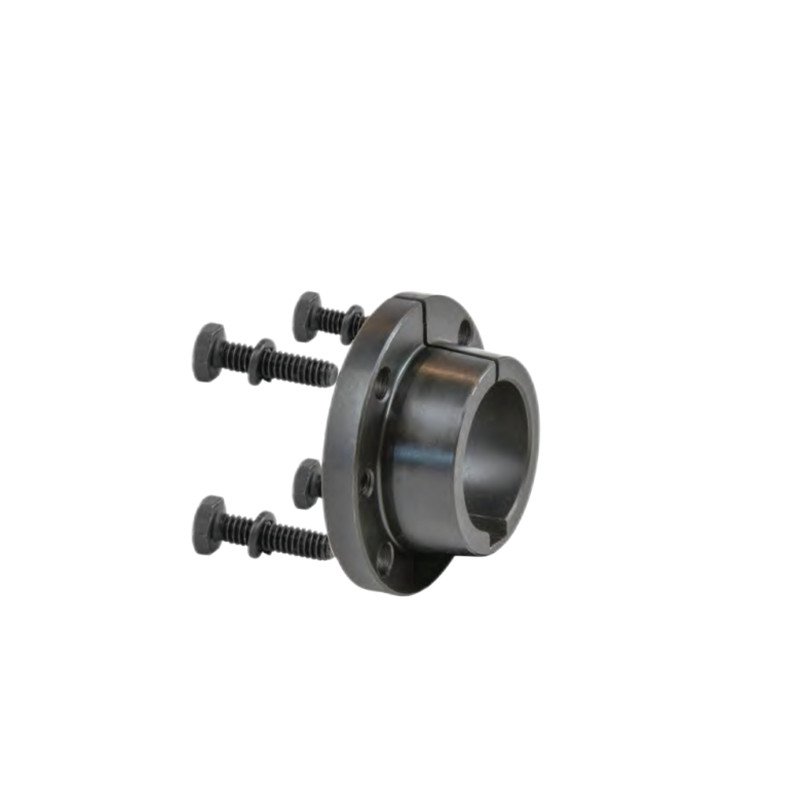

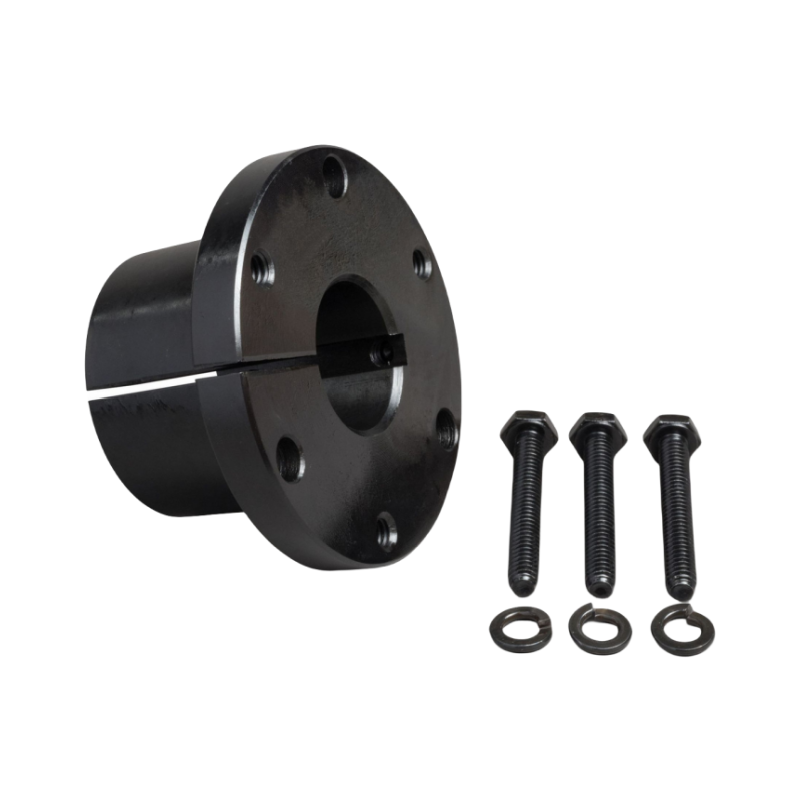

A QD bushing, short for quick-disconnect bushing, is a split flanged bushing that mounts a sprocket, sheave or pulley onto a shaft and comes off again in minutes. You do not pull the hub off the shaft: you remove the cap screws, thread them into the removal holes in the flange, and the bushing backs itself out of the hub.
That is why QD bushings are the practical choice wherever components are changed on a maintenance schedule, or where a drive has to come apart in the field rather than in a workshop.
Replacing a worn bushing? Send the stamped part number and we will confirm the interchange before you buy.
At a glance
- Stock items: no minimum order
- Custom bores, keyways and materials
- Interchangeable with common QD hubs
- Dimensional inspection before packing
In Stock and Made to Order
Popular QD bushing types and bores are held in stock, so replacement orders do not wait for a production run. Stock items carry no minimum order — one piece is fine.
Sizes that are not on the shelf are machined to your drawing, sample or shaft dimensions. Custom work starts at 50 pcs per size, and trial orders can be discussed.
Three Ways We Supply QD Bushings
Stock bushings
Common type letters and bores are on the shelf for immediate dispatch, with no minimum order for stock items.
Custom bushings
Inch or metric bores, your keyway specification, and bushings for hubs already in service. Drawings and samples welcome.
Replacement matching
Read the part number from the bushing you are replacing and we will match the type, bore and keyway before you order.
Test category page for QD bushings, built with the advanced editor (custom HTML sections instead of the module editor). Stock and custom QD bushings from JA to S types, interchangeable with Dodge, Martin and Browning QD hubs.
| Image | QD Bushing Test | Description | In stock | More |
|---|

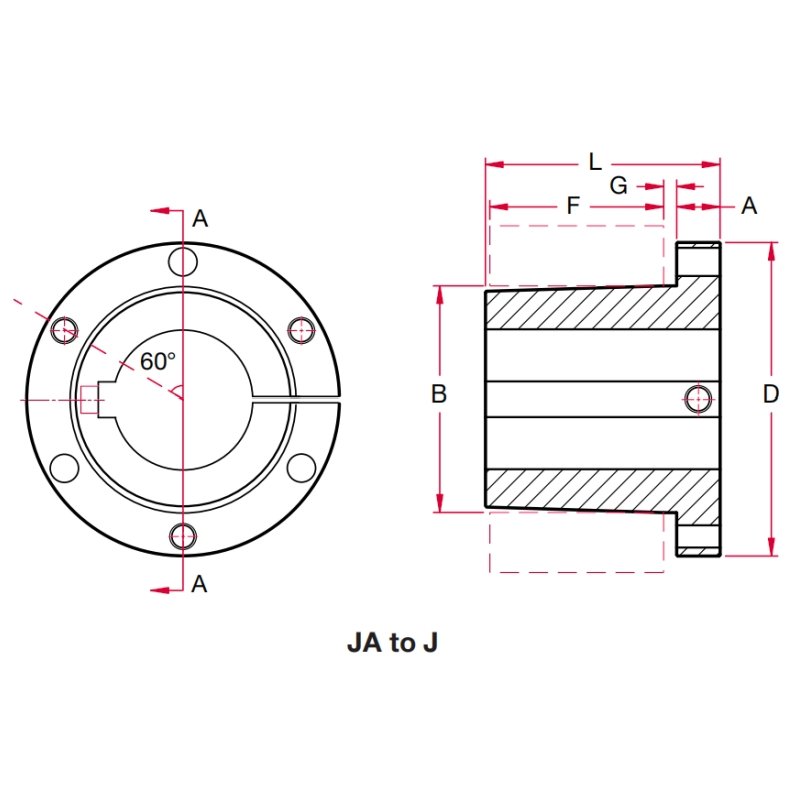

QD Bushing Types & Sizes (JA to S)
All dimensions in inches. Cap screws, set screw size, wrench torque and approximate weight are listed per type. Scroll the table sideways on a phone.
| QD Bushing Type | Dimensions(in) | Bolt Circle (in) | Stock Bore Range(in) | Cap Screws Included | Set Screw Size | Wrench- Torque (in-Ibs) | Approx. Weight (Ibs) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | E | F | G | L | Min. | Max. | No. | Thread | Length (in) | |||||||
| Standard Keyway | Shallow Keyway | No Keyway | ||||||||||||||||
| JA | 3/8 | 1.375 | 2 | 11/16 | 9/16 | 1/8 | 1-1/16 | 1-21/32 | 3/8 | 1 | 1-3/16 | 1-1/4 | 3 | 10-24 | 1 | 10-24 | 60 | 0.9 |
| SH | 7/16 | 1.871 | 2-11/16 | 7/8 | 13/16 | 3/16 | 1-5/16 | 2-1/4 | 1/2 | 1-3/8 | 1-5/8 | 1-11/16 | 3 | 1/4-20 | 1-3/8 | 1/4 | 108 | 1.0 |
| SDS | 1/2 | 2.187 | 3-3/16 | 7/8 | 3/4 | 3/16 | 1-3/8 | 2-11/16 | 1/2 | 1-11/16 | 1-15/16 | 2 | 3 | 1/4-20 | 1-3/8 | 1/4 | 108 | 1.0 |
| SD | 1/2 | 2.187 | 3-3/16 | 1-5/16 | 1-1/4 | 3/16 | 1-13/16 | 2-11/16 | 1/2 | 1-11/16 | 1-15/16 | 2 | 3 | 1/4-20 | 1-7/8 | 1/4 | 108 | 1.5 |
| SK | 9/16 | 2.812 | 3-7/8 | 1-3/8 | 1-1/4 | 3/16 | 1-15/16 | 3-5/16 | 1/2 | 2-1/8 | 2-1/2 | 2-5/8 | 3 | 5/16-18 | 2 | 5/16 | 180 | 2.0 |
| SF | 9/16 | 3.125 | 4-5/8 | 1-1/2 | 1-1/4 | 1/4 | 2-1/16 | 3-7/8 | 1/2 | 2-1/4 | 2-15/16 | - | 3 | 3/8-16 | 2 | 5/16 | 360 | 3.0 |
| E | 3/4 | 3.834 | 6 | 1-7/8 | 1-5/8 | 5/16 | 2-5/8 | 5 | 7/8 | 2-7/8 | 3-1/2 | - | 3 | 1/2-13 | 2-3/4 | 3/8 | 720 | 10.0 |
| F | 13/16 | 4.437 | 6-5/8 | 2-13/16 | 2-1/2 | 3/8 | 3-5/8 | 5-5/8 | 1 | 3-5/16 | 3-15/16 | 4 | 3 | 9/16-12 | 3-5/8 | 1/2 | 900 | 11.5 |
| J | 1 | 5.148 | 7-1/4 | 3-1/2 | 3-3/16 | 3/8 | 4-1/2 | 6-1/4 | 1-7/16 | 3-3/4 | 4-1/2 | - | 3 | 5/8-11 | 4-1/2 | 5/8 | 1,620 | 18.0 |
| M | 1-1/4 | 6.500 | 9 | 5-1/2 | 5-3/16 | 3/8 | 6-3/4 | 7-7/8 | 1-15/16 | 4-3/4 | 5-1/2 | - | 4 | 3/4-10 | 6-3/4 | 3/4 | 2,700 | 37.0 |
| N | 1-1/2 | 7.000 | 10 | 6-5/8 | 6-1/4 | 7/16 | 8-1/8 | 8-1/2 | 2-7/16 | 5 | 6 | - | 4 | 7/8-9 | 8-1/2 | 3/4 | 3,600 | 57.0 |
| P | 1-3/4 | 8.250 | 11-3/4 | 7-5/8 | 7-1/4 | 1/2 | 9-3/8 | 10 | 2-15/16 | 5-15/16 | 7 | - | 4 | 1-8 | 9-1/2 | 7/8 | 5,400 | 120.0 |
| W | 2 | 10.437 | 15 | 9-3/8 | 9 | 1/2 | 11-3/8 | 12-3/4 | 4 | 7-1/2 | 8-1/2 | - | 4 | 1-1/8-11.5 | 11-1/2 | 1 | 7,200 | 250.0 |
| S | 3-1/4 | 12.125 | 17-3/4 | 12-1/2 | 12 | 1/2 | 15-3/4 | 15 | 6 | 8-1/4 | 10 | - | 5 | 1-1/4-15.5 | 15-1/2 | 1-1/4 | 9,000 | 400.0 |
Downloadable size charts
Prefer a printable chart for the workshop wall? The full QD range is available as a PDF-ready image set.
Need a quote for one size? Send the type and bore →
How a QD Bushing Mounts
- Slide the bushing onto the shaft and align the keyway, then position the assembly where the drive needs it.
- Locate the hub on the bushing so the cap screw holes line up with the threaded holes in the flange.
- Tighten the cap screws to the torque listed for that type. To remove, move the same screws into the removal holes and the bushing releases the hub.
Torque values per type are in the size table above. Ask us to check your installation →
Custom QD Bushing
Send a drawing, a sample, or the shaft dimensions and we will quote a bushing that fits the application. Custom work we handle regularly:
- Bores in inch or metric sizes
- Keyways to your specification
- Cast iron and steel, other materials on request
- Bushings for hubs already in service
Not sure which type you need? Send your dimensions and our engineers will name the closest standard item, or quote a custom one.
Interchangeable with Dodge, Martin and Browning QD Hubs
CTS QD bushings are dimensionally interchangeable with the Dodge, Martin and Browning QD hubs in common use, so a CTS bushing fits an existing QD hub without modification.
Replacing an existing part?
Send the part number stamped on the old bushing or hub and we will confirm the match before you order.
Where QD Bushings Are Used
Typical drives for the components our bushings mount.

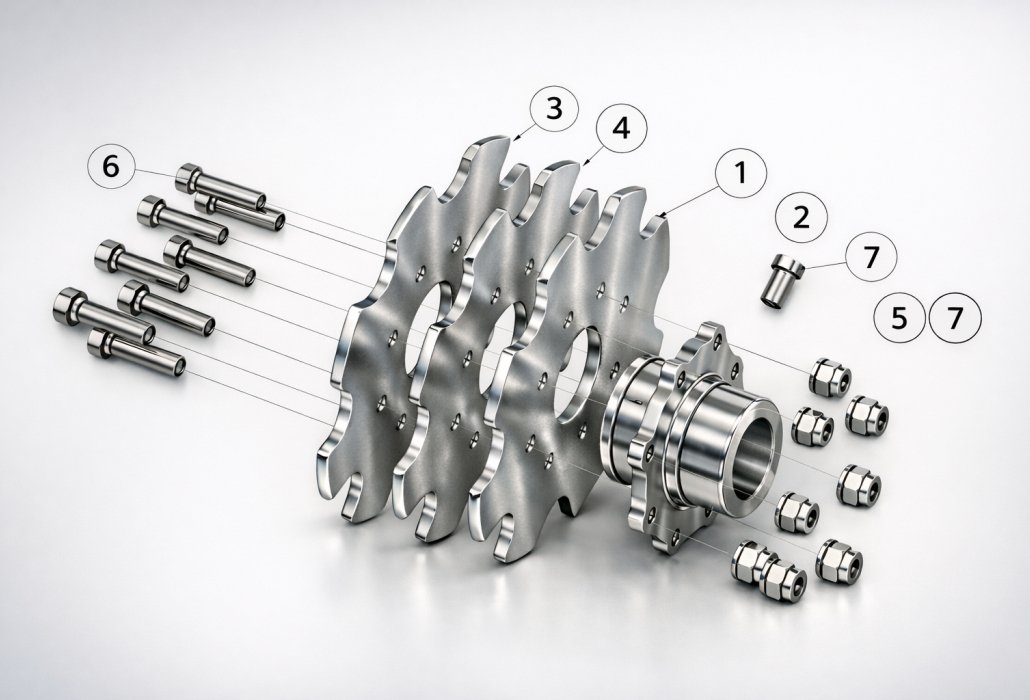

Chain sprockets
Mounting sprockets on drive shafts where the sprocket comes off again for wear replacement.

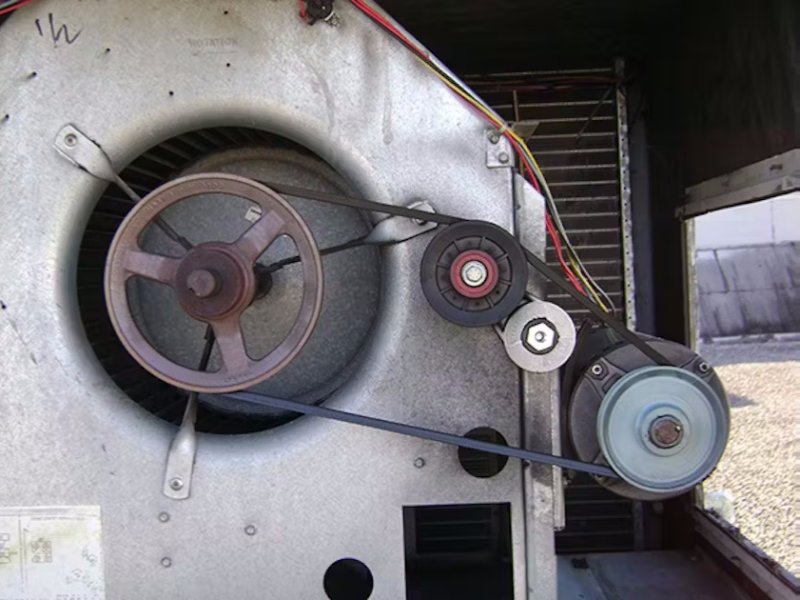

V-belt sheaves and pulleys
Bushed sheaves for belt drives, fan drives and line shaft equipment.
Conveyors and elevators
Drives that are serviced in the field, where quick removal saves downtime.
Pumps, mixers and fans
Impeller and rotor shafts on equipment with regular maintenance intervals.
Agricultural machinery
Field equipment where a spare bushing is carried and swapped on site.
Retrofits and replacements
Replacing a worn or obsolete bushing on a machine that is still in service.
Quality and Inspection
Every batch is checked for bore, keyway and taper fit before packing, and material certificates can be supplied on request. Bushings leave the factory export packed with rust protection for sea and air freight.
Looking for a specific certificate or documentation set with your order? Ask before ordering →
Frequently Asked Questions
What does QD stand for?
QD stands for quick disconnect. The bushing is split and keyed, so it tightens onto the shaft and releases from the hub quickly using the same cap screws.
Which QD bushing types do you supply?
The common QD range, from the small JA sizes through to the heavy S sizes. Tell us the type letter and the bore and we will confirm stock.
Are CTS QD bushings interchangeable with Dodge, Martin or Browning?
Yes. They are made to the same dimensional standard. Confirm with the part number from your old bushing and we will match it before you order.
Do you keep QD bushings in stock?
Yes. Popular types and bores are held in stock with no minimum order.
How do I get a price?
Use the contact page with your list: type, bore and quantity. We will reply with pricing and availability.
Need a Quote for QD Bushings?
Send your list, or a drawing. We will come back with pricing and availability.
- Stock items shipped from our warehouse
- Custom bores and keyways quoted from your drawing
- Replacement confirmation against your old part number
- Export packing and documentation handled by us
