UCLP200 Pillow Block Bearing Units
UCLP200 Pillow Block Bearing Units offer durable shaft support with easy installation, reliable sealing, and stability.
Detail Information
The UCLP200 pillow block bearing unit features an eccentric locking collar, making it ideal for applications that involve reversing motion or vibration. It provides reliable shaft locking, stable performance, and easy installation for a wide range of industrial machinery.
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

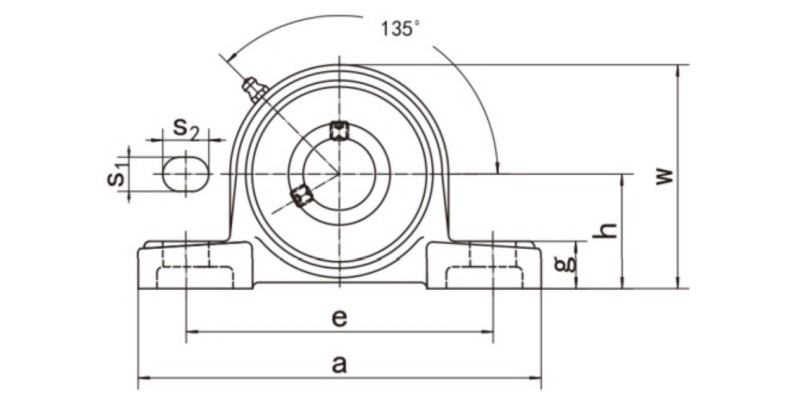

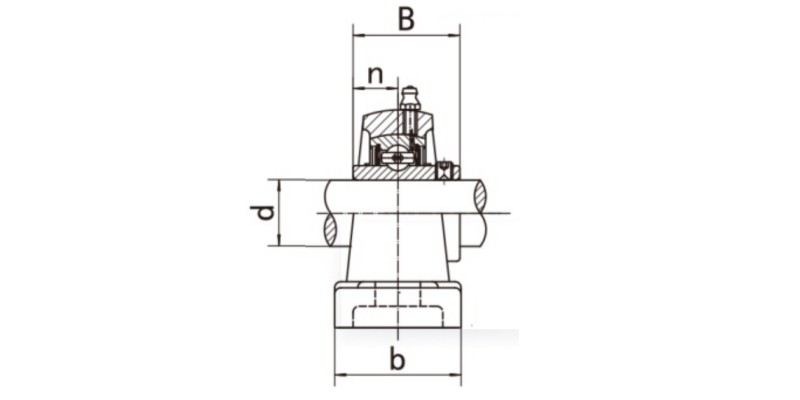

UCLP200 Pillow Block Bearing Units Dimensions
| Unit NO. | Dimensions(mm/in.) | Bolt Size mm/in. |
Bearing No. | Housin g No. | Weight (kg) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | h | a | e | b | S1 | S2 | g | W | B | n | |||||
| UCLP201 | 12 | 31.75 | 127 | 95 | 38 | 13 | 16 | 14 | 64 | 31 | 12.7 | M10 | UC201 | LP201 | 0.69 |
| 201-8 | 1/2 | 1-1/4 | 5 | 3-3/4 | 1-1/2 | 1/2 | 5/8 | 9/16 | 2-33/64 | 1.2205 | 0.500 | 3/8 | UC201-8 | 0.68 | |
| UCLP202 | 15 | 31.75 | 127 | 95 | 38 | 13 | 16 | 14 | 64 | 31 | 12.7 | M10 | UC202 | LP202 | 0.68 |
| 202-9 | 9/16 | 1-1/4 | 5 | 3-3/4 | 1-1/2 | 1/2 | 5/8 | 9/16 | 2-33/64 | 1.2205 | 0.500 | 3/8 | UC202-9 | 0.68 | |
| 202-10 | 5/8 | UC202-10 | 0.68 | ||||||||||||
| UCLP203 | 17 | 31.75 | 127 | 95 | 38 | 13 | 16 | 14 | 64 | 31 | 12.7 | M10 | UC203 | LP203 | 0.67 |
| 203-11 | 1/16 | 1-1/4 | 5 | 3-3/4 | 1-1/2 | 1/2 | 5/8 | 9/16 | 2-33/64 | 1.2205 | 0.500 | 3/8 | UC203-11 | 0.66 | |
| UCLP204 | 20 | 31.75 | 127 | 95 | 38 | 13 | 16 | 14 | 64 | 31 | 12.7 | M10 | UC204 | LP204 | 0.65 |
| 204-12 | 3/4 | 1-1/4 | 5 | 3-3/4 | 1-1/2 | 1/2 | 5/8 | 9/16 | 2-33/64 | 1.2205 | 0.500 | 3/8 | UC204-12 | 0.65 | |
| UCLP205 | 25 | 33.34 | 140 | 105 | 38 | 13 | 16 | 15 | 68 | 34.1 | 14.3 | M10 | UC205 | LP205 | 0.74 |
| 205-13 | 3/16 | 1-5/16 | 5-1/2 | 4-1/8 | 1-1/2 | 1/2 | 5/8 | 19/32 | 2-43/64 | 1.3425 | 0.563 | 3/8 | UC205-13 | 0.78 | |
| 205-14 | 7/8 | UC205-14 | 0.77 | ||||||||||||
| 205-15 | 15/16 | UC205-15 | 0.75 | ||||||||||||
| 205-16 | 1 | UC205-16 | 0.74 | ||||||||||||
| UCLP206 | 30 | 39.69 | 160 | 121 | 44 | 17 | 20 | 17 | 80 | 38.1 | 15.9 | M14 | UC206 | LP206 | 1.11 |
| 206-17 | 1-1/16 | 1-9/16 | 6-19/64 | 4-3/4 | 1-47/64 | 43/64 | 25/32 | 21/32 | 3-5/32 | 1.5000 | 0.626 | 1/2 | UC206-17 | 1.12 | |
| 206-18 | 1-1/8 | UC206-18 | 1.13 | ||||||||||||
| 206-19 | 1-3/16 | UC206-19 | 1.11 | ||||||||||||
| 206-20 | 1-1/4 | UC206-20 | 1.10 | ||||||||||||
| UCLP207 | 35 | 46.04 | 167 | 127 | 48 | 17 | 20 | 18 | 91 | 42.9 | 17.5 | M14 | UC207 | LP207 | 1.42 |
| 207-20 | 1-1/4 | 1-13/16 | 6-9/16 | 5 | 1-7/8 | 43/64 | 25/32 | 45/64 | 3-37/64 | 1.6890 | 0.689 | 1/2 | UC207-20 | 1.48 | |
| 207-21 | 1-5/16 | UC207-21 | 1.45 | ||||||||||||
| 207-22 | 1-3/8 | UC207-22 | 1.42 | ||||||||||||
| 207-23 | 1-7/16 | UC207-23 | 1.39 | ||||||||||||
| UCLP208 | 40 | 49.2 | 184 | 137 | 54 | 17 | 20 | 18 | 100 | 49.2 | 19 | M14 | UC208 | LP208 | 1.87 |
| 208-24 | 1-1/2 | 1-15/16 | 7-1/4 | 5-13/32 | 2-1/8 | 43/64 | 25/32 | 45/64 | 3-15/16 | 1.9370 | 0.748 | 1/2 | UC208-24 | 1.91 | |
| 208-25 | 1-9/16 | UC208-25 | 1.88 | ||||||||||||
| UCLP209 | 45 | 52.39 | 190 | 146 | 54 | 17 | 20 | 20 | 104 | 49.2 | 19 | M14 | UC209 | LP209 | 2.03 |
| 209-26 | 1-5/8 | 2-1/16 | 7-15/32 | 5-3/4 | 2-1/8 | 43/64 | 25/32 | 25/32 | 4-3/32 | 1.9370 | 0.748 | 1/2 | UC209-26 | 2.13 | |
| 209-27 | 1-11/16 | UC209-27 | 2.09 | ||||||||||||
| 209-28 | 1-3/4 | UC209-28 | 2.05 | ||||||||||||
| UCLP210 | 50 | 55.56 | 206 | 159 | 60 | 20 | 23 | 21 | 112 | 51.6 | 19.0 | M16 | UC210 | LP210 | 2.60 |
| 210-29 | 1-13/16 | 2-3/16 | 8-1/8 | 6-1/4 | 2-3/8 | 25/32 | 29/32 | 53/64 | 4-13/32 | 2.0315 | 0.748 | 5/8 | UC210-29 | 2.72 | |
| 210-30 | 1-7/8 | UC210-30 | 2.67 | ||||||||||||
| 210-31 | 1-15/16 | UC210-31 | 2.62 | ||||||||||||
| 210-32 | 2 | UC210-32 | 2.58 | ||||||||||||
| UCLP211 | 55 | 61.91 | 219 | 171 | 60 | 20 | 23 | 23 | 124 | 55.6 | 22.2 | M16 | UC211 | LP211 | 3.22 |
| 211-32 | 2 | 2-7/16 | 8-5/8 | 6-47/64 | 2-3/8 | 25/32 | 29/32 | 29/32 | 4-7/8 | 2.1890 | 0.874 | 5/8 | UC211-32 | 3.37 | |
| 211-33 | 2-1/16 | UC211-33 | 3.31 | ||||||||||||
| 211-34 | 2-1/8 | UC211-34 | 3.27 | ||||||||||||
| 211-35 | 2-3/16 | UC211-35 | 3.20 | ||||||||||||
| UCLP212 | 60 | 68.26 | 241 | 184 | 70 | 20 | 23 | 25 | 136 | 65.1 | 25.4 | M16 | UC212 | LP212 | 4.39 |
| 212-36 | 2-1/4 | 2-11/16 | 9-1/2 | 7-1/4 | 2-3/4 | 25/32 | 29/32 | 63/64 | 5-23/64 | 2.5630 | 1.000 | 5/8 | UC212-36 | 4.52 | |
| 212-37 | 2-5/16 | UC212-37 | 4.44 | ||||||||||||
| 212-38 | 2-3/8 | UC212-38 | 4.37 | ||||||||||||
| 212-39 | 2-7/16 | UC212-39 | 4.30 | ||||||||||||
