How to Calculate Chain Length Between Two Sprockets
Selecting the correct chain length is one of the most important steps when designing a roller chain drive system. Whether you are building agricultural machinery, conveyor equipment, industrial automation systems, or power transmission applications, an incorrect chain length can lead to installation difficulties, excessive wear, poor chain tension, and reduced service life.
Calculating the roller chain length between two sprockets is not complicated when you understand the required parameters and formula.
In this guide, we will explain the chain length calculation formula through a practical example, introduce a free chain length calculator, and share engineering tips used by professional chain and sprocket manufacturers.
Why Accurate Chain Length Calculation Matters
A roller chain drive operates best when the chain length precisely matches the sprocket arrangement.
A chain that is too short may not fit over the sprockets during installation. A chain that is too long can create excessive slack, vibration, and uneven load distribution. Both situations increase wear on the chain and sprockets. For this reason, chain length should always be calculated before ordering chains or manufacturing sprockets.
Information Required Before Calculating Chain Length
Before using any formula or calculator, you need four basic parameters.
Number of Teeth on the Driving Sprocket
The driving sprocket is connected to the power source, such as an electric motor, gearbox, or engine.
Number of Teeth on the Driven Sprocket
The driven sprocket receives power from the chain.

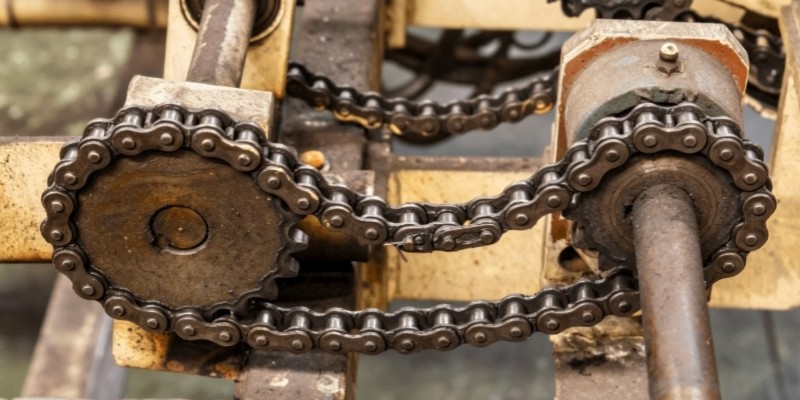

Center Distance Between Shafts

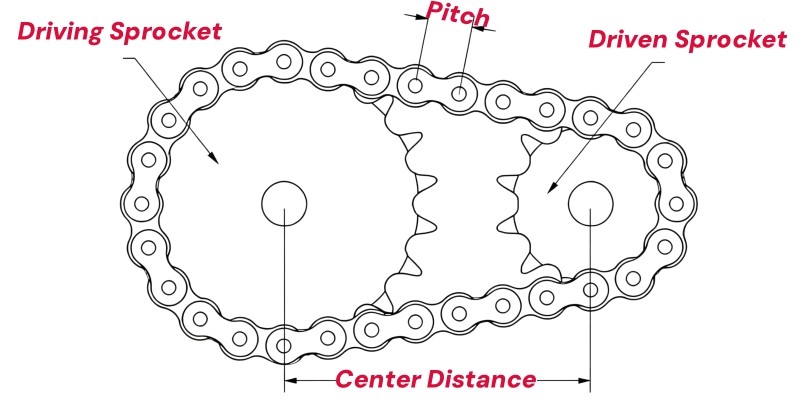

Center distance refers to the distance between the centers of the two sprocket shafts.
The larger the center distance, the longer the chain required.
Chain Pitch
Chain pitch is the distance between adjacent pin centers.
Before calculating chain length, it is important to identify the correct chain pitch. You can refer to our Roller Chain Size Chart to find dimensions, pitch, and specifications for common ANSI roller chains.
For ANSI chains, common pitches include:
| Roller Chain Size | Chain Pitch |
| 1/2"（12.7mm） | |
| 5/8"（15.875mm） | |
| 3/4"（19.05mm） | |
1"（25.4mm） |
Always verify the chain pitch before starting calculations.
Standard Chain Length Formula
The most commonly used chain length equation is: L = {T1+T2}/2+2C+{T2-T1}2/4π2C
Symbol Meaning
• L: Chain length in pitches
• T1: Small sprocket teeth
• T2: Large sprocket teeth
• C: Center distance in pitches
This formula is widely used throughout the power transmission industry because it provides an accurate estimation for most roller chain drive systems.
One common mistake is mixing millimeters with pitches. The formula requires the center distance to be expressed in chain pitches rather than millimeters.
The number of teeth on both sprockets directly affects chain length. If you are unsure which tooth count to choose, our guide on Roller Chain Sprocket Selection can help.
Formula Limitations in Real Applications
The formula provides a theoretical chain length.
In practice:
* Chain lengths must use whole pitches
* Most roller chains require an even number of pitches
* Installation adjustment should be considered
* Chain tensioners may affect final length selection
Therefore, engineers usually calculate first and then round to the nearest practical chain length.
Use Free Chain Length Calculator
Although manual calculations help engineers understand the design process, most professionals now use online calculators to save time and avoid mistakes.
Instead of repeatedly entering formulas into spreadsheets, you can simply input:
* Chain pitch
* Small sprocket teeth
* Large sprocket teeth
* Center distance
The calculator instantly provides:
* Chain length
* Number of pitches
* Recommended center distance
* Approximate chain length in inches
* Approximate chain length in millimeters
Try the Free Chain Length Calculator
Using a calculator becomes especially useful when comparing multiple sprocket combinations during machine design.
Need Help Selecting Chain Length?
At CTS-ChinatTransmissionS, we manufacture roller chains and sprockets for agricultural machinery, industrial conveyors, power transmission systems, and custom OEM projects.
Before ordering a chain, we recommend verifying all shaft dimensions, sprocket tooth counts, and chain pitch specifications. Spending a few extra minutes on accurate calculations can prevent installation problems, downtime, and premature wear.
For most ANSI roller chain drives, maintaining a center distance between 30 and 50 chain pitches typically provides the best balance of performance, service life, and maintenance convenience.
If you need assistance selecting chain length, sprocket sizes, or custom chain solutions, contact our engineering team.
FAQs
How do I calculate chain length if both sprockets have the same number of teeth?
The same formula is used. When both sprockets have identical tooth counts, the correction factor becomes zero, making the calculation simpler.
Why do most roller chains use an even number of pitches?
Even pitch counts allow standard connecting links to be used and help maintain maximum chain strength.
