Cane Harvester Chains

Cane Harvester Chains

Cane Harvester Chains

The Sugar Cane Harvester efficiently gathers mature sugar cane, improving yield for agricultural operations.
CategoriesAgricultural Machinery Chain
BrandCTS-ChinaTransmissions
MaterialCarbon Steel
ColorNatural
Surface TreatmentShot Peening/Heat Treatment/Plating/Lubrication
AccuracyHigh precision cornhead gathering chain
QualityDurable cornhead gathering chain
InterchangeabilityDirectly interchangeable with other brands
Update TimeJul 14,2024
Detail Information

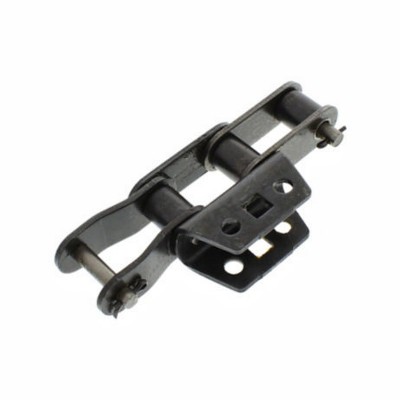

About Sugarcane Harvester Chain

The Sugarcane Harvester Chain plays a pivotal role in the sugarcane harvesting industry, serving as the primary transmission mechanism. Given the harsh conditions it faces, the sugarcane harvesting chain must exhibit exceptional resistance to both abrasion and corrosion. Varieties such as bush chains, straight panel chains, cranked link chains, cast chains, cast steel chains, and bagasse conveying chains are among the most commonly used in sugar machine applications.


As a leading manufacturer in China specializing in sugarcane harvesting equipment, we understand the intricacies of the sugar refining process and the demands it places on machinery. This knowledge enables us to engineer high-quality bent side plate chains, attachments, and sugarcane harvester chains tailored for enduring performance in sugar refining operations.

Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.

Features

  • Precision Machined Components
  • Low Friction
  • Directly interchangeable with other brands
  • Uniform Heat Treatment

Sugarcane Harvester Chain
Sugarcane Harvester Chain

Standard Sugar Cane Harvester Chain Dimension

Standard Sugarcane Harvester Chain

Sugarcane Harvester Chain
Sugarcane Harvester Chain Dimension Chart
Chain SizePitch
(P)
Roller
Diameter
(Dr)
Inside
Width
(W)
Sidebar
Height
(Hi)
Dimension
(G)
Dimension
(F)
Dimension
(s)
Dimension
(Dp)
Dimension
(Df)
Dimension
(A1)
Working
Surface
(mm^2)
Avg
Ultimate
Strength
(kN)
Weight
(kG/m)
CA73250.80mm31.75mm15.70mm 27.20mm16.00mm6.00mm4.00mm 14.75mm10.30mm38.80mm367 55.53.73
50-1050.80mm38.10mm15.70mm 27.20mm16.00mm6.00mm4.00mm 14.75mm10.30mm38.80mm367 55.54.58
CA73350.80mm31.75mm15.70mm 27.20mm3.7mm/3.25mm 14.75mm10.30mm41.90mm352 54.92.99
CA73450.80mm31.75mm15.70mm 27.20mm16.00mm6.00mm4.80mm 14.75mm10.30mm38.40mm392 80.44.06

In addition to standard sugarcane harvester chains, we can also manufacture customized sugarcane harvester chains based on dimension drawings.

Customized Sugarcane Harvester Chain

Customized Sugar Cane Harvester Chain Dimension Drawing
Sugar Cane Harvester Chains Dimensions Chart
