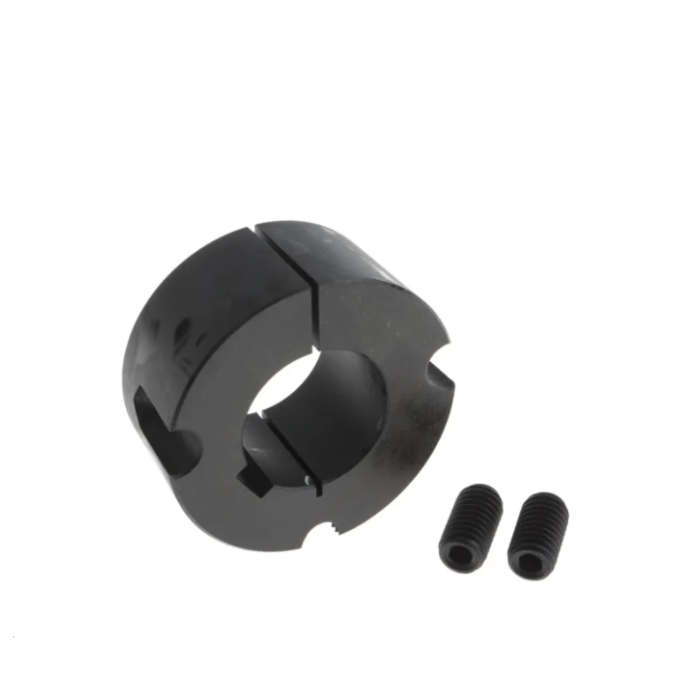

3020-28 Taper Lock Bushing | Durable Taper Lock Bush
3020-28 taper lock bushings securely connect shafts and components, offering easy installation and reliable power transmission.
| Share | |
|---|---|
| Categories | Taper Lock Bushing |
| Brand | CTS-ChinaTransmissionS |
| Model | Taper Bush 3020 Bore 28mm |
| Product name | Taper bush |
| Color | Black |
| Material | Cast Iron |
| Certificate | ISO9001:2015 |
| Accuracy | High precision taper lock bushing |
| Quality | Easy Installation and Maintenance |
| FOB port | SHANGHAI, NINGBO |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
Detail Information
3020-28 Taper Lock Bush Details
The 3020-28 Taper Lock Bushing is a standard taper locking bushing designed to securely mount sprockets, V-belt pulleys, timing pulleys, couplings, and other shaft-mounted transmission components. It features a 28 mm bore and a standardized 3020 taper design, providing a reliable connection between the shaft and the mounted component.
The tapered outer surface creates a strong clamping connection when the bushing is tightened inside the matching taper bore. This design helps simplify installation and removal while reducing the need for additional shaft machining.
The 3020-28 Taper Lock Bushing is suitable for a wide range of industrial power transmission and mechanical drive applications.

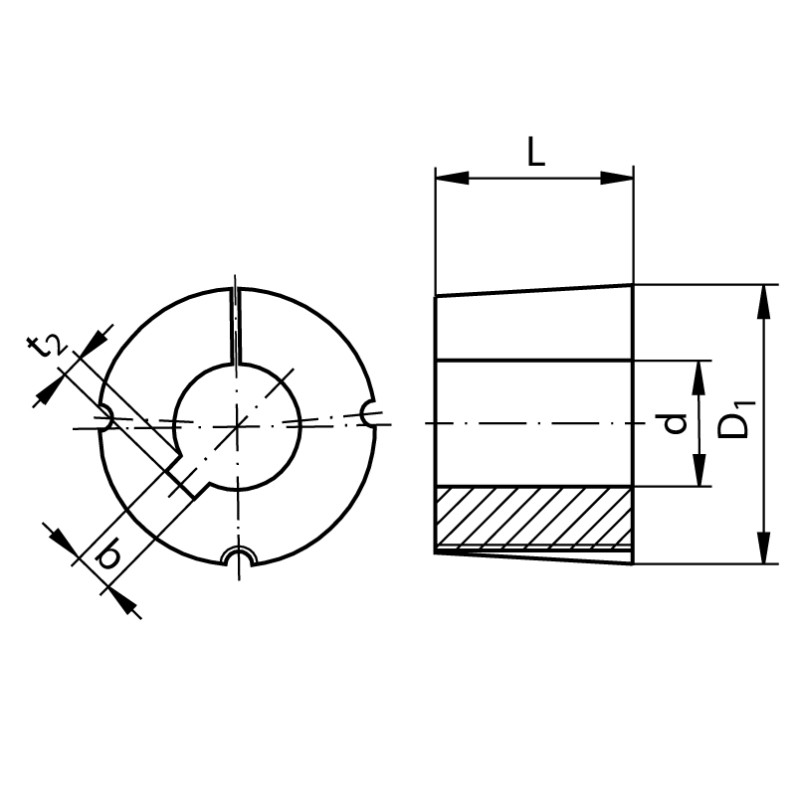

3020-28 Taper Lock Bushing Size
- Bushing Size: 3020
- Bore Diameter: 28mm
- Keyway Width: 8mm
- Keyway Depth: 3.3mm
- Outside Diameter: 108mm
- Overall Length: 50.8mm
- Material: Gray Cast Iron
- Application: Sprockets, Pulley, Coupling, Hubs & More
Specifications may vary according to the selected bore and production requirements. Please confirm the technical drawing before ordering.
3020 TLB for Taper-Bore Transmission Components
The 3020-28 Taper Lock Bushing is commonly used together with components featuring a matching 3020 taper bore. Instead of machining a component directly onto the shaft, the bushing provides an intermediate locking connection between the shaft and the transmission component.
✔ 3020-28 Bushing + Taper Bore Sprocket
For roller chain drive systems and conveyor machinery.
✔ 3020-28 Bushing + Taper Bore V-Belt Pulley
For motor-driven belt transmission systems.
✔ 3020-28 Bushing + Taper Bore Timing Pulley
For applications requiring synchronized belt transmission.
✔ 3020-28 Bushing + Taper Bore Coupling or Hub
For connecting shafts and other rotating components.
This interchangeable design makes taper lock bushings particularly useful when transmission components need to be replaced, repositioned, or serviced.
More Taper Lock Bushing Sizes Available
The Taper Lock Bushing is designed for applications requiring a secure connection between taper-bore sprockets, V-belt pulleys, and shafts. If you need a different size or bore range, we also supply a complete range of Taper Lock Bushings, including 1008, 1108, 1210, 1610, 2012, 2517, 3020, 3030, 3535, 4040, 4545, 5050, and other popular sizes.
Choose the appropriate bushing according to the shaft diameter, sprocket or pulley bore, and required torque capacity. Contact us for help selecting the right Taper Lock Bushing for your transmission system.
