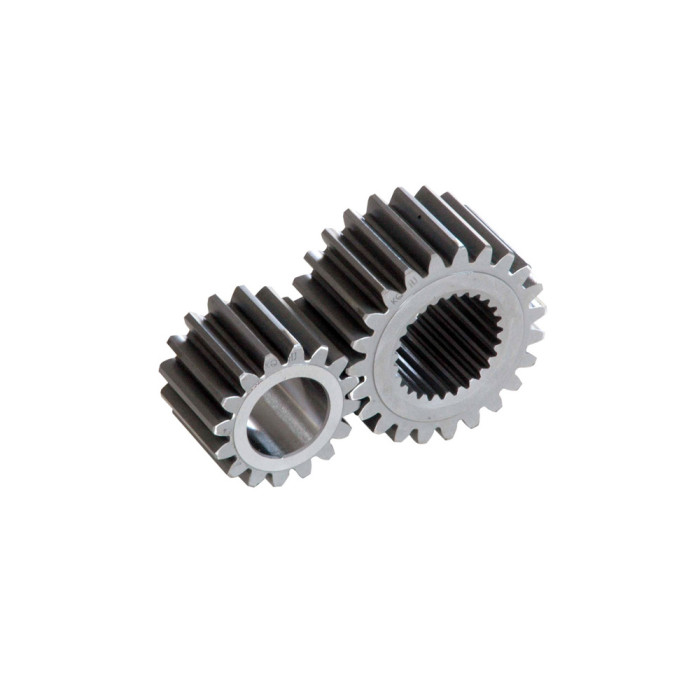

High Quality European Standard spur gears Mod.1-Mod.6 For Engineering Made in China
High Quality European Standard spur gears Mod.1-Mod.6 For Engineering Made in China
| Categories | Spur Gears（Metric） |
|---|---|
| Brand | CTS-ChinaTransmissions |
| Model | Mod.1-Mod.6 Spur Gears |
| product name | spur gear |
| colour | natural |
| Unit Price | US $ 0.5 / piece |
| FOB port | SHANGHAI, NINGBO |
| Terms of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal |
| Update Time | Apr 19,2024 |
Detail Information
Spur Gears - European Standard Series - Mod1.-Mod.6 spur gears dimensions
European Spur Gear Specifications
|
Mod No.
|
External diameter(de)
|
Pitch
Diameter (dp) |
Number of Teeth
|
Width between inner plates(D1) | Hub diameter (dm) | Tooth width "A" (mm) | Tooth width "B" (mm) |
Mod.1 | 14-129 | 12-127 | 12-127 | 8-12 | 9-50 | 25 | 15 |
Mod.1.5 | 21-193.5 | 18-190.5 | 12-127 | 8-16 | 14-70 | 30 | 17 |
Mod.2 | 28-258 | 24-254 | 12-127 | 10-20 | 18-80 | 35 | 20 |
Mod.2.5 | 35-155 | 30-150 | 12-127 | 10-20 | 22-100 | 45 | 25 |
Mod.3 | 42-387 | 36-381 | 12-127 | 12-30 | 27-100 | 50 | 40 |
Mod.4 | 56-464 | 48-456 | 12-127 | 14-30 | 35-80 | 60 | 40 |
Mod.5 | 70-580 | 60-570 | 12-127 | 20-30 | 45-110 | 75 | 50 |
Mod.6 | 84-252 | 72-240 | 12-127 | 20-25 | 54-110 | 80 | 60 |
Product Information
European Standard spur gears
The products are made of high quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon and nitrogen protection mesh belt furnace, surface blasting process etc. Assembled precision by Internal hole position, spin riveted by pressure to ensure the performance of the entire chain.
Availability:
* Standard roller chain
* OEM roller chain
High Performance:
√Strong Ultimate tensile strength√Perfect surface treatment
√Durable,Flexible
Quality Assurance:
ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.
√Corrosion resistance
√Durable, Robust and Reliable
√Bad condition resistance
√Lower weight--high speed
Application industries:
√Manufacturing
√Agriculture
√Building Material
√Oil and Gas
√Technology and Science
Package:
Plastic bag+Neutral box +Plywood box
Material:C45
Pressure angle:20°
YQ-CHINATRANSMISSION European Spur Gears are widely used in Agriculture,Printing,Chemical,Food and Beverage,General Machinery,Oil and Gas,Packaging and Logistics,Paper Industry,Textile industry,Woodworking Machinery and so on.
The biggest characteristic is that the chains can be customized in different standard and materials according to your requirements. Made from the steel and the up-to-date skills as well as precision procedures, the high quality roller chain can withstand strong pressure and high temperature.
