Flexible CA type steel agricultural chains ss316 blind chain connector for Various Uses

Flexible CA type steel agricultural chains ss316 blind chain connector for Various Uses

Flexible CA type steel agricultural chains ss316 blind chain connector for Various Uses
Flexible CA type steel agricultural chains ss316 blind chain connector for Various UsesFlexible CA type steel agricultural chains ss316 blind chain connector for Various UsesFlexible CA type steel agricultural chains ss316 blind chain connector for Various UsesFlexible CA type steel agricultural chains ss316 blind chain connector for Various UsesFlexible CA type steel agricultural chains ss316 blind chain connector for Various Uses
CategoriesA type steel agricultural chains / CA type steel agricultural chains
BrandCTS-ChinaTransmissions
ModelCA267-CA550
ApplicationAgricultural
ModelCA267-CA550
Unit PriceUS $ 0.5 / piece
FOB portSHANGHAI, NINGBO
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update TimeMar 29,2024
Detail Information
No. CA627/CA550D/CA555D/CA557D/CA620D/CA2062H/CA627F1/38.4R/38.4V/38.4VB/55VD/CA2060H/CA550 Dimensions
CA Type Steel Agriculture Chains Specifications
Chain No.
Pitch
(mm)
Roller diameter
(mm)
Width between inner plates
(mm)
Pin diameter
(mm)
Pin length
L max
(mm)
Pin length
Lc max
(mm)
 Plate dimension h2 max
(mm)
 Plate dimension T max
(mm)
Tensile strength
kN/lbf
Average tensile strength
kN
Weight per meter
(kg/m)
CA627
30.00
15.88
19.05
8.28
36.1
39.4
20.5
3.00
50.00/11247
55.0
2.51
CA550D
41.40
16.87
19.81
7.19
35.0
38.0
19.3
2.80
39.10/8886
51.2
1.94
CA555D
41.40
16.87
12.70
7.19
29.1
32.0
19.3
3.10
39.10/8886
56.0
1.72
CA557D
41.40
17.78
20.24
8.00
37.4
40.6
23.1
3.10
55.61/12639
74.3
2.60
CA620D
42.01
17.91
24.51
7.19
41.8
45.2
20.2
3.25
39.10/8886
55.1
2.35
CA2062H
38.10
22.23
12.57
5.94
29.2
31.6
18.0
3.25
31.10/6992
35.0
2.30
CA627F1
30.00
15.88
19.60
8.28
36.1
39.7
20.5
3.00
50.00/11241
55.0
2.55
38.4R
38.40
15.88
19.05
6.92
33.8
36.4
17.30
2.50
33.00/7480
41.2
1.70
38.4V
38.40
15.88
18.00
6.92
35.0
38.0
17.30
3.00
40.00/9091
50.0
1.83
38.4VB
38.40
15.88
19.05
8.28
36.1
39.4
20.50
3.00
50.00/11363
62.5
2.17
55VD
41.40
17.90
23.00
8.22
39.3
42.4
20.00
2.80
42.00/9546
45.0
2.34
CA2060H
38.10
11.91
12.70
5.94
29.2
31.6
18.00
3.25
31.10/6996
40.5
1.45
CA550
41.40
16.87
19.81
7.19
35.0
38.0
19.30
2.80
39.10/8886
51.2
1.94
Product Information

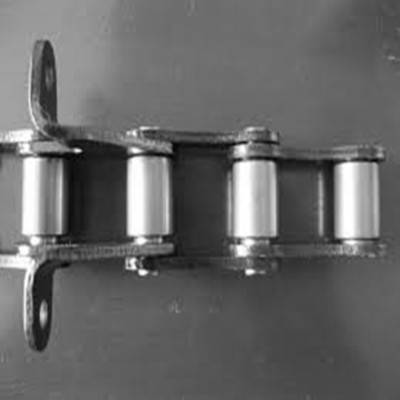

Flexible CA type steel agricultural chains

The products are made of high quality alloy steel production. The plates are punched and squeezed bores by precision technology. The pin, bush, roller are machined by high-efficiency automatic equipment and automatic grinding equipment, then through heat treatment of carburization, carbon and nitrogen protection mesh belt furnace, surface blasting process etc. Made from the steel and the up-to-date skills as well as precision procedures, the flexible CA type steel agricultural chains  can withstand strong pressure and high temperature.



Availability:

* Standard chains

* Customized chains







Quality Assurance:

ISO9001: 2015 and GB/T24001-2016 / ISO14001: 2015.






High quality:

Corrosion resistance

Durable, Robust and Reliable

Bad condition resistance

Lower weight--high speed







Services:

Surface treatment

Hardened teeth

Serious quality control





Application industries:

Manufacturing

Agriculture
Building Material
Oil and Gas

Technology and Science

……
