Custom Stainless Steel Sprockets
Custom Stainless Steel Sprockets
for Wastewater Treatment
From one-off custom builds to standard replacements — we engineer sprockets for bar screens, grit classifiers, sludge scrapers, aeration systems and every other chain-driven machine in your treatment plant. Manufactured from certified AISI 304 / 316L / Duplex stainless steel.
From Standard to CustomizationWe build to your exact requirements
Stainless That Stays StainlessAISI 304, 316L, Duplex with certs
Full TraceabilityEN 10204 Type 3.1 with every order
Fast-Track AvailableBecause downtime costs more than the part
The Challenge
Why Standard Sprockets Can’t Handle Wastewater
Water treatment plants operate 24/7 in one of the most punishing environments. Standard industrial sprockets fail prematurely when exposed to the realities of treatment plant service.
Continuous Corrosive Exposure
Submerged in effluent, chemically dosed water, and corrosive sludge, carbon steel sprockets rust rapidly; stainless steel is a requirement for acceptable service life.
Fibrous & Abrasive Debris
Rags, sand, grit wrap around hubs and teeth, accelerating wear. Custom sprockets' teeth are necessary to shed debris rather than accumulate it.
Minimal Maintenance Windows
The sprocket replacement that requires shaft disassembly can mean 8-12 hours downtime. Rapid replce designs are essential, saving time.
Non-Standard Drive Systems
Equipment usually uses engineered-class chains which are non-standard one. Custom sprockets can match with it.
Our Capabilities
What We Engineer
We design and manufacture custom sprockets for wastewater treatment drive systems.
AISI 304
Standard grade. Good corrosion resistance.
- Good general corrosion resistance
- Cost-effective for standard-duty
- EN 10204 3.1 certified
AISI 316L
Molybdenum-enhanced for superior pitting resistance.
- Superior pitting resistance
- Low carbon prevents sensitization
- Ideal for coastal plants
Duplex & Super Duplex
Twice the yield strength with chloride SCC resistance.
- Very high strength
- Chloride SCC resistance
- Extended harsh condition life
Carbon Steel + Coating
Economical for dry areas with HDG, epoxy, DLC.
- Cost-effective
- Optional coatings
- Same CNC precision
Solid Sprockets
One-piece machined from solid billet.
- Maximum concentricity
- Moderate-to-heavy duty
- Keyway & set screw std
Split Sprockets
Two halves bolt around shaft.
- Field replacement <30min
- No shaft removal
- Dowel-pin alignment
Fabricated Multi-Piece
Plates on separate hub.
- Individual plate replacement
- Large diameters
- Custom bolt pattern
Custom Tooth Profiles
Debris-shedding roots.
- Debris-clearing root
- Anti-wrap flanks
- Induction hardening opt.
From Standard Catalog to Full Custom
If your chain type matches a standard size, we can supply it. When you need something unique, we engineer from scratch.
We can work from:
- A technical drawing — PDF, DXF
- A sprocket sample — we reverse-engineer
- A chain specification
Our process:
1
You send requirementsChain type, pitch, teeth, bore
2
We review & quoteLead time + recommendations
3
Drawing for approvalCAD before cutting
4
Manufacturing & QCCNC, full inspection
5
Shipped with docsCerts + inspection report
Submit Your Sprocket Requirements
Fill in the fields below. We'll respond with a quote within 1-2 business days.
Featured Project

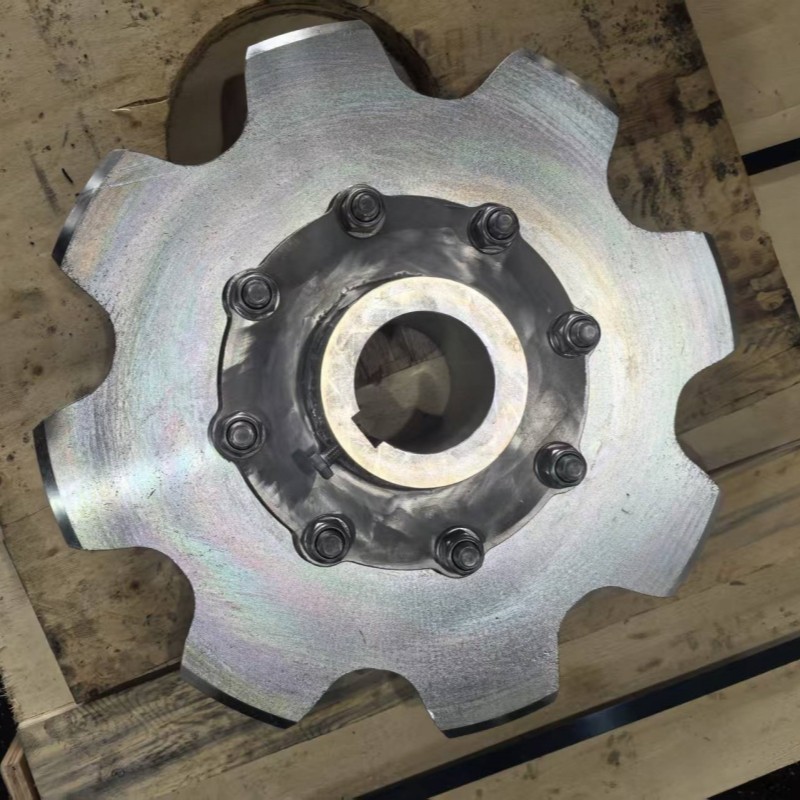

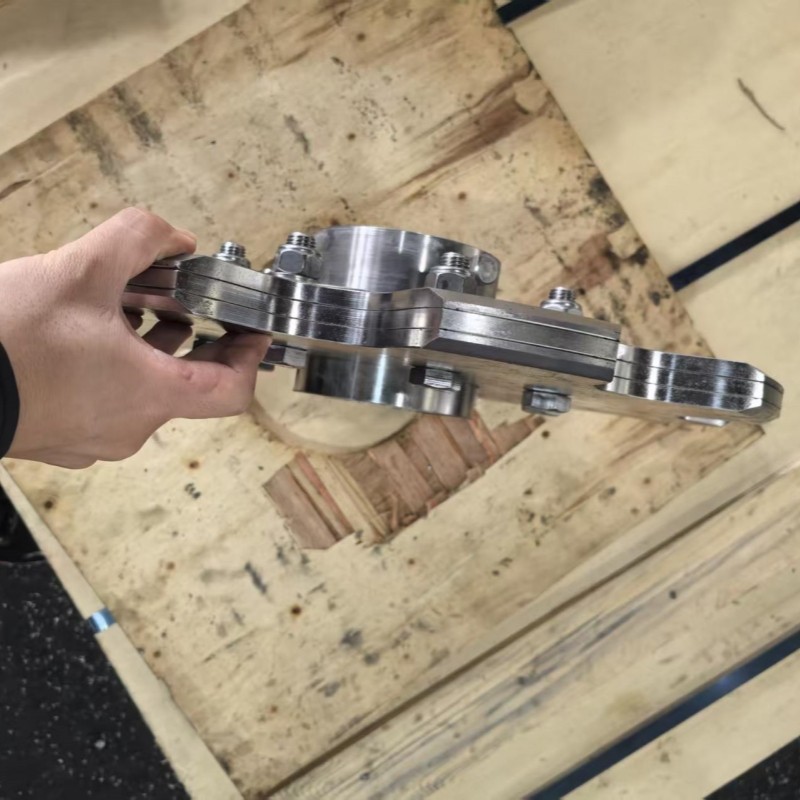

The Upper Sprocket for Screening System
Custom multi-piece assembled sprocket for Sulzer MevaScreen® MRS.

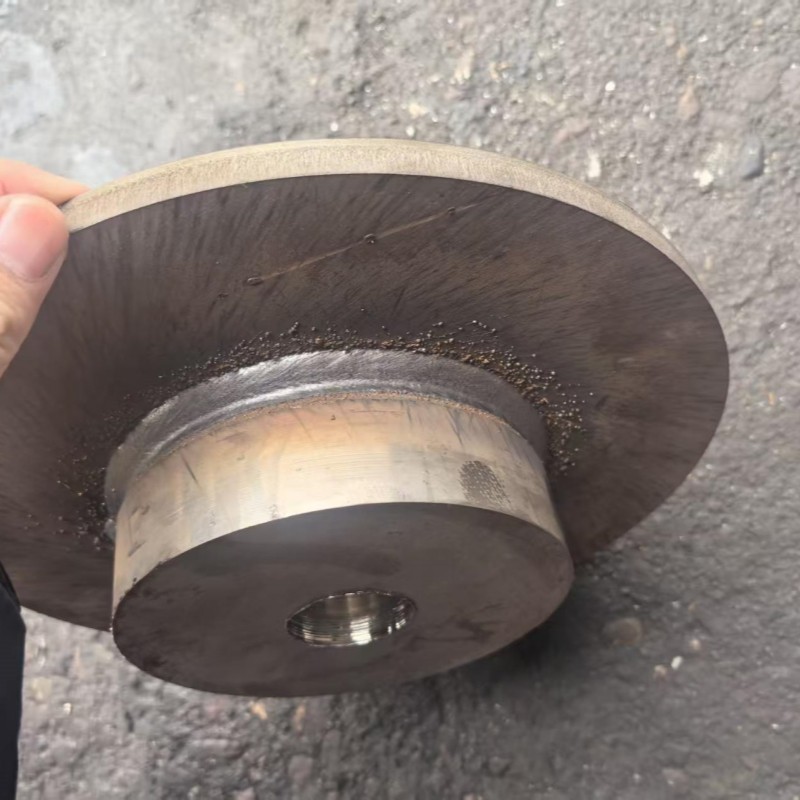

Case Study Sulzer MevaScreen® MRS
Fabricated Sprocket — Coarse and fine screen solution

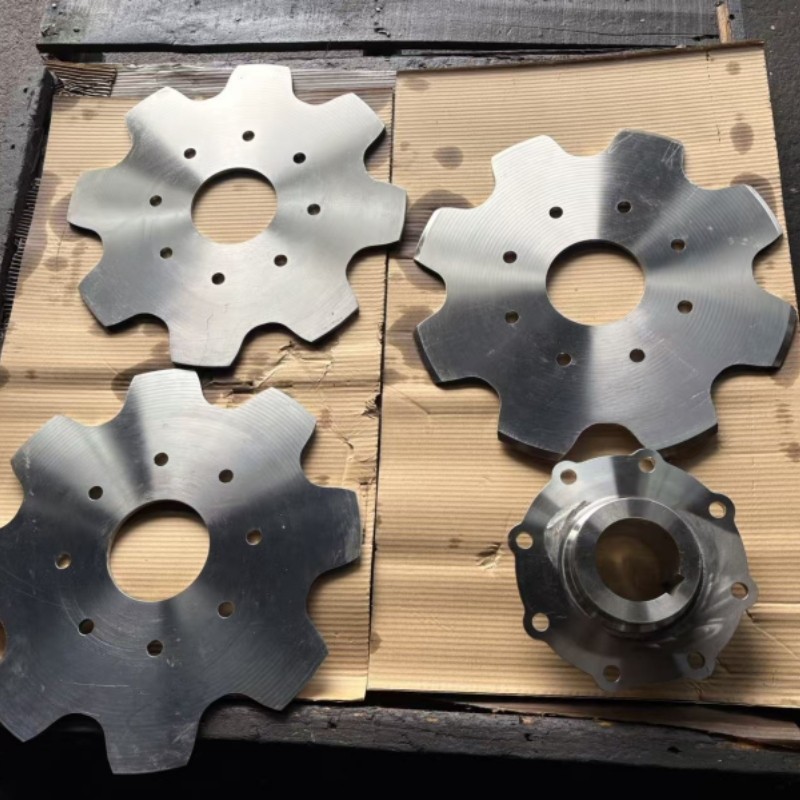

Challenge: One-piece sprocket required disassembly — 8-12h downtime. Solution: Three plates on hub, M16 A4-80 bolts.
"Replacement reduced from 8+ hours to under 30 minutes."
ChainM112
TeethZ=8
MaterialAISI 304
Wt.33.6kg
HardwareA4-80
Service<30min
Quality Assurance
Certified Materials, Traceable Production
EN 10204 Type 3.1
Mill-origin cert with chemical and mechanical data.
Composition Verified
C, Si, Mn, Cr, Ni, Mo per ASTM/EN/GB.
Dimensional Inspection
Tooth spacing, PCD, bore concentricity.
DIN Hardware
A4-80 with nylon lock nuts.
Corrosion Testing
Optional ASTM A262.
Heat Treatment
Solution-annealed + optional hardening.
Where We Fit In
From the Intake Channel to the Digester
Bar & Step Screens
Grit Classifiers
Sludge Scrapers
Aeration Systems
Screw Conveyors
Anaerobic Digestion
Engineering Conveyor Chains — matched to your sprocket spec.
