UCP Bearing Units: Sizes, Applications & Common Problems

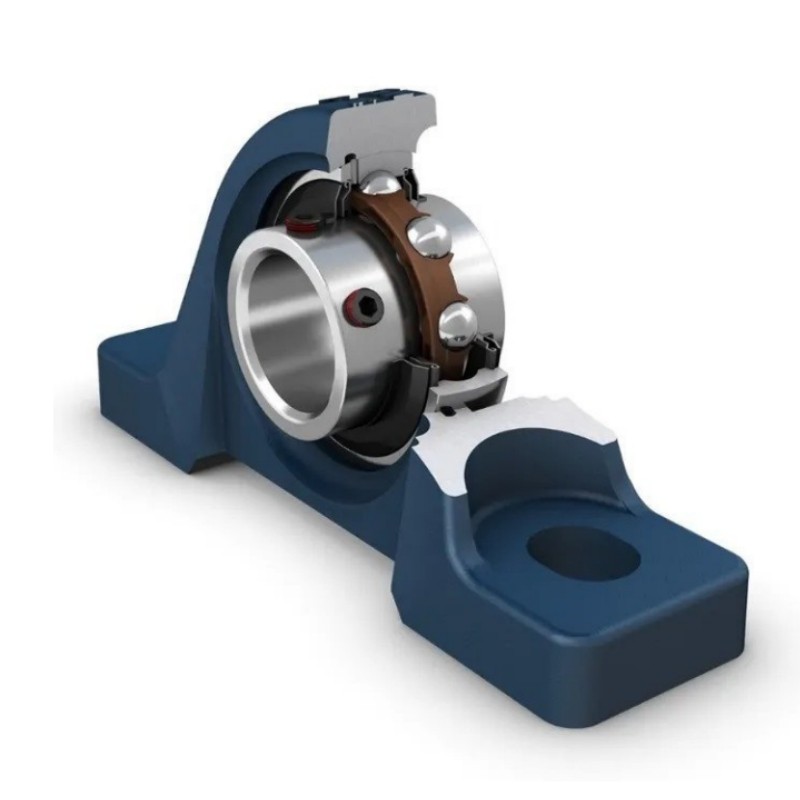

What Is a UCP Bearing Unit?
A UCP bearing unit is a type of mounted pillow bearing unit consisting of:
• A pillow block housing
• A UC insert bearing
The housing is designed with a flat base that allows it to be mounted directly onto machinery frames or steel structures. The insert bearing is installed inside the housing and supports the rotating shaft.
Compared with loose bearings, UCP bearing units simplify installation significantly and reduce alignment difficulties.
Understanding the UCP Model Numbers
UCP pillow block bearing unit model numbers, such as UCP204, UCP205, or UCP207, but what they mean.
In fact, the numbering system is relatively straightforward.
The “UCP” refers to:
UC = Insert bearing
P = Pillow block housing
The numbers usually indicate shaft size. For example:
| Model | Shaft Size |
| UCP204 | 20mm |
| UCP205 | 25mm |
| UCP206 | 30mm |
UCP207 | 35mm |
UCP208 | 40mm |
As the shaft diameter increases, both the bearing and housing dimensions become larger to handle higher loads.
This is why proper sizing is critical.
Choosing a unit that is too small may result in overheating, vibration, or premature failure.
Why Are UCP Bearing Units So Popular?
✔ One reason is versatility. A single UCP unit can operate in many different environments, from light-duty conveyor systems to dusty agricultural equipment.
✔ Another reason is maintenance convenience. Operators can replace the insert bearing or relubricate the unit without disassembling the entire machine system.
In many factories, maintenance teams prefer pillow block units simply because installation is faster and downtime is lower. The solid housing structure also helps absorb vibration and improve shaft stability during operation.

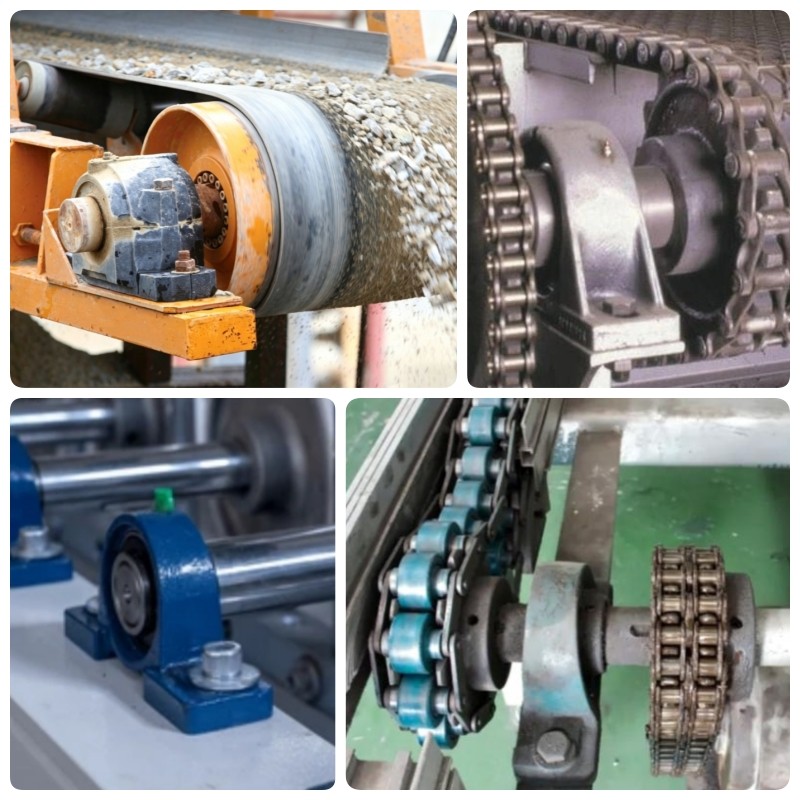

Where Are UCP Bearing Units Used?
One of the biggest advantages of UCP bearing units is their wide range of applications.
In conveyor systems, they are commonly installed along conveyor shafts where reliable support and easy maintenance are required.
In agricultural machinery, UCP units are often exposed to dust, mud, and moisture. Their simple structure and replaceable insert design make maintenance easier under harsh conditions.
Mining equipment also relies heavily on pillow block units, especially in conveyors, crushers, and screening systems, where vibration and heavy loads are common.
Even in packaging and food-processing equipment, specially designed stainless steel UCP units are frequently used.

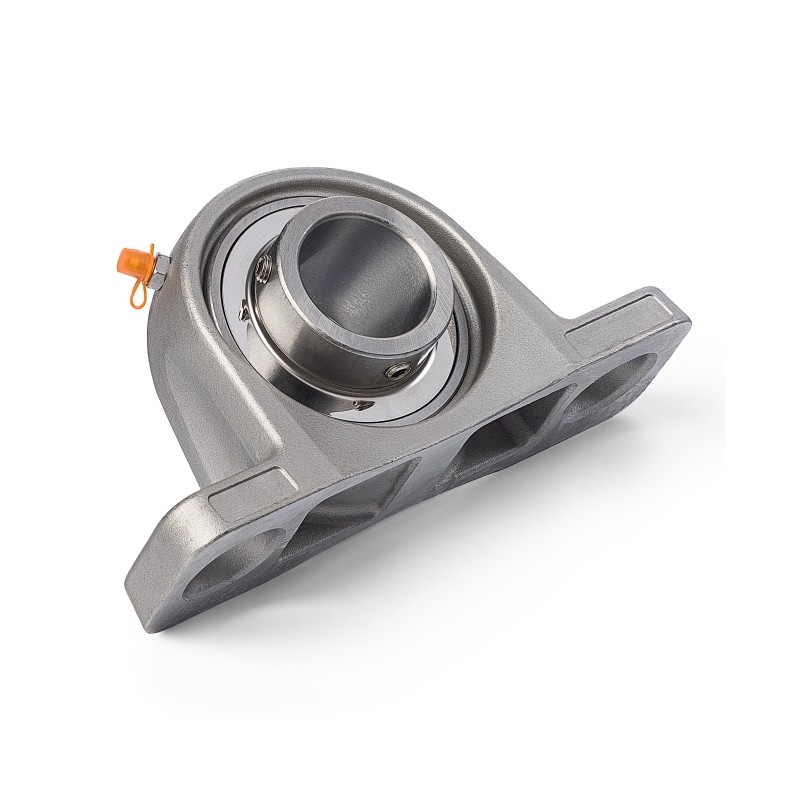

Cast Iron vs Stainless Steel UCP Units
Cast iron housings are the most common choice because they provide good strength and cost efficiency for general industrial applications.
However, in humid or corrosive environments, stainless steel bearing units are often preferred.
For example:
Food processing plants
Chemical facilities
Outdoor equipment
Washdown environments
In these conditions, corrosion resistance becomes more important than cost alone.
Selecting the wrong housing material can significantly shorten service life.
Common Problems with UCP Bearing Units
Although UCP units are reliable, failures still occur—especially in harsh operating conditions.
1) One common issue is contamination. Dust, sand, and debris may enter the bearing area and gradually damage internal surfaces. Once lubrication becomes contaminated, wear accelerates rapidly.
2)Misalignment is another frequent problem. If the mounting surface is uneven or the shaft is misaligned, the housing may experience uneven stress, leading to vibration and premature failure.
3) Overloading is also common in heavy-duty applications. Many users underestimate shock loads or operating conditions, causing the housing structure to deform over time.
4) Poor lubrication practices can make these problems even worse.
