Dual-staked Pins VS. Quad-staked Pins on Roller Chains
What is roller chains' "staking"?

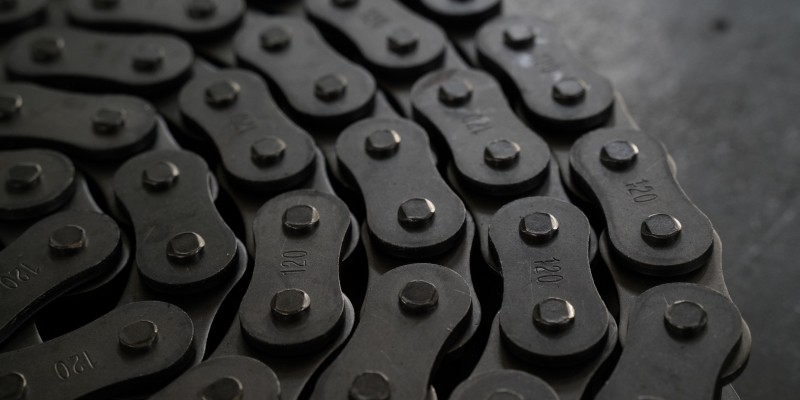

In a riveted roller chain, the pin goes through the outer plate. It is then deformed, or staked, so the head flares. This flaring locks the plate in place.
We call this process "dual-staked." It means each pin end has two points of deformation. "Quad-staked" uses four points, creating a more balanced four-point lock.
Staking quality directly affects how well the side plates resist working loose under vibration, shock, or reversing loads. Users specifically use quad-staked heads to improve plate retention.
Dual-staked Pins VS. Quad-staked Pins Chain
| Feature | Dual-staked Pins | Quad-staked Pins |
| Rivet head geometry | 2 stake points per pin end | 4 stake points per pin end |
| Plate retention | Good for standard duty | Higher holding power for severe duty |
| Shock / reversing loads | Adequate | Better resistance to shock & plate movement |
Typical use | General industrial drives | High shock, vibration, frequent reversals |
Cost & availability | Lower, widely available | Higher, sometimes longer lead times |
The quad-staked pins roller chain improves shock load resistance and plate holding power compared with standard dual-staked rivets.
How staking pins impact roller chain performance
Plate retention & pull-off resistance
More stake points spread the clamping force around the pin. This increases resistance to the plate moving off the pin during shocks or side loads.
Shock & reversing duty
When the chain experiences impact (lumber drops, jam-clear events) or repetitive reversals, the outer plates are stressed. Quad-staked heads better maintain plate position and reduce the chance of rivet loosening in those conditions.
Fatigue life(not the same as tensile strength)
Fatigue performance depends on many variables—steel grade, heat treatment, plate geometry, pin/bushing fit, and lubrication. A better staking pin keeps the plate fit under changing loads. This indirectly supports fatigue life by keeping the joint tight. However, it is just one part of the solution.
Wear life
Staking doesn't change pitch or the internal friction pair(pin-bushing). Wear is affected by lubrication, bushing or roller design, and materials. Keeping plates tight helps the chain stay aligned and lubricated.
Roller Chain Standard & Compatibility(ANSI/ISO)
· Sprocket compatibility: Both dual-staked and quad-staked chains adhere to ANSI/ASME B29.1 pitch and roller dimensions for the same roller chain size, so they run on the same sprockets. Staking changes the pin head geometry at the outer face, not the roller/sprocket interface.
· Riveted vs cottered: Quad vs dual refers to how the rivet head is formed on a riveted (cotterless)roller chain. Cottered roller chains use a cotter on one side; still ANSI-compatible, but with different service characteristics.
· Connecting links: For high-duty chains, use press-fit/riveted connecting links; the same logic applies regardless of dual or quad staking on the bulk chain.
When to Choose Dual-staked or Quad-staked Pins Chain
Choose dual-staked pins when:
·Loads are steady/moderate, with minimal shock and few direction changes.
·Cost sensitivity is high, and uptime risk from shock is low.
·Common in packaging, food processing(non-washdown), light conveyors, OEM machinery with predictable duty.
Choose quad-staked pins when:
·You expect high shock(lumber/aggregate drops,scrap metal lines,impact loading).
·The drive sees frequent reversals or heavy starts/stops(indexers,stackers,palletizers).
·Environments cause vibration, side load, or occasional misalignment (recycling, cement, steel processing).
Common Roller Chain misconceptions to avoid
1."Quad-staked =always stronger."
Not automatically. Ultimate tensile strength depends on materials/treatment/plate thickness. Quad staking primarily improves retention and resistance to plate movement under shock.
2."Multi-strand equals quad-staked."
"Quadruple-strand"(e.g.,80-4)means four parallel rows of chain, not four rivet stakes. You can have multi-strand chains with standard dual staking. Different concept.
3."Staking fixes misalignment."
No staking pattern compensates for poor alignment or lubrication. Those remain critical to fatigue and wear.
CTS | Professional Roller Chain Manufacturer
High-tensile & Wear-resistant Roller Chain
✔ High-performance Material
✔ Nitro-Carburizing Compound Heat Treating
✔ Wide-waist Link Plates
Contact us for more roller chain details.
FAQs
Does quad-staked change chain dimensions or sprocket fit?
No. For a specific ANSI size, the pitch and roller shape stay the same. Staking only changes the pin head shape, not the roller or sprocket connection.
Does quad-staking increase tensile strength?
It primarily improves plate retention, while materials and geometry govern overall tensile strength. For severe duty, pair quad-staked heads with heavy-duty plates/pins and solid bushings for best results.
What are the early signs that I chose the wrong staking style?
Outer plates are moving. There are metal shavings near the rivet head. Links often become loose after shocks. This is a sign to check the duty and think about quad-staking.
