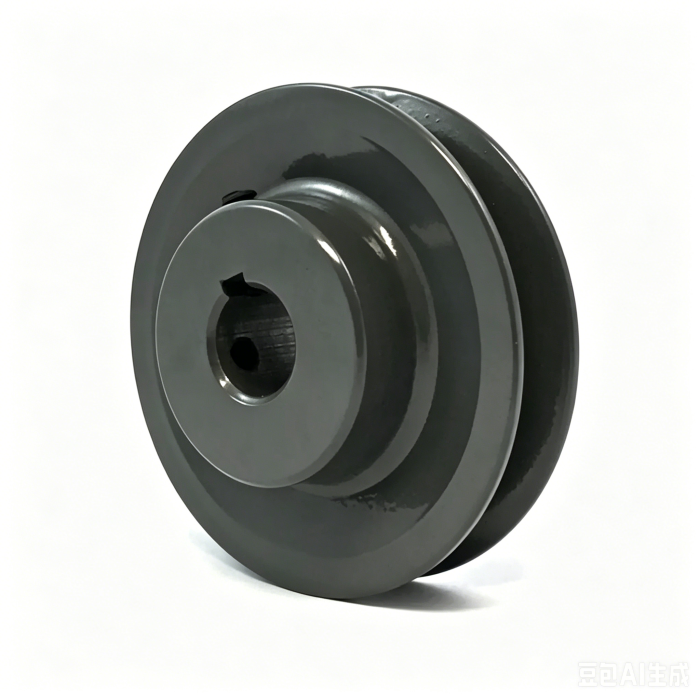

1 Grooves AK Sheave

High-strength cast iron Ak-1 sheave for compact, high-speed industrial power transmission.

Share
Categories	8V V-Belt Sheave
Brand	CTS-ChinaTransmissionS
Model	AK-1 Sheave
Material	Cast Iron
Belt Type	A Section / 4L V-belts
Groove Quantity	1 Groove
Pilot Bore/ QD Bushed	Black Phosphate/ Rust Protection
Bore Type	Pilot Bore/ Finished Bore
Balance	Dynamically Balanced

Contact Now

Favorites

Detail Information

About 1 Groove AK Sheave

An AK Sheave is a classical V-belt pulley designed for use with A-section V-belts. In North American industrial markets, “AK” typically refers to a single groove A belt sheave with a finished or pilot bore structure commonly used in light-duty industrial transmission systems.

Compared with narrow V-belt sheaves such as 3V, 5V, and 8V, AK sheaves are more economical and widely used in standard industrial machinery requiring moderate horsepower transmission.

Due to their simple structure, stable performance, and broad compatibility, AK sheaves are commonly used in agricultural equipment, HVAC systems, pumps, fans, and general machinery.

For more information or to request a quote on our AK-1 Sheave, please don't hesitate to contact us.

AK-1 Sheave Dimension

CTS can supply a complete range of AK-1 sheave sizes for different transmission requirements.

Part Number	Diameter			Type	Stock Finished Bores Includes Keyway and Setscrew											F	E	L Thru Bore	Weight Ib (Approx.)
Part Number	OD	Datum A(4L)Belts	Pitch 3L Belts	Type	Stock Finished Bores Includes Keyway and Setscrew											F	E	L Thru Bore	Weight Ib (Approx.)
AK15	1.55	1.3	-	A	0.5	0.625										0.6563	0.4375	0.4063	0.3
AK17	1.75	1.5	1.16	A	0.5	0.625										0.6563	0.4375	0.0625	0.3
AK19	1.95	1.7	1.36	A	0.5	0.625	0.75	0.875								0.6563	0.4375	0.0625	0.5
AK20	2	1.8	1.46	A	0.5	0.625	0.75									0.6563	0.4375	0.0625	0.5
AK21	2.1	1.90	1.56	A	0.5	0.625	0.75									0.6563	0.4375	0.0625	0.5
AK22	2.2	2	1.66	A	0.5	0.625	0.75	0.875								0.6563	0.4375	0.0625	0.6
AK23	2.3	2.1	1.76	A	0.5	0.625	0.75									0.6563	0.4375	0.0625	0.6
AK24	2.4	2.2	1.86	A	0.5	0.625	0.75	0.875		1						0.6563	0.4375	0.0625	0.6
AK25	2.5	2.3	1.96	B	0.5	0.625	0.75	0.875								0.6563	0.4375	0.0625	0.7
AK26	2.6	2.4	2.06	B	0.5	0.625	0.75									0.6563	0.4375	0.0625	0.7
AK27	2.7	2.5	2.16	B	0.5	0.625	0.75			1						0.6563	0.4375	0.0625	0.8
AK28	2.8	2.6	2.26	B	0.5	0.625	0.75	0.875								0.6563	0.4375	0.0625	0.8
AK30	3.05	2.8	2.46	B	0.5	0.625	0.75	0.875		1						0.6563	0.4375	0.0625	0.9
AK32	3.25	3	2.66	B	0.5	0.625	0.75	0.875		1						0.6563	0.4375	0.0625	1.0
AK34	3.45	3.2	2.86	B	0.5	0.625	0.75	0.875		1						0.6563	0.4375	0.0625	1.1
AK35	3.55	3.3	2.96	B	0.5	0.625	0.75	0.875		1						0.6563	0.4375	0.0625	1.2
AK39	3.75	3.5	3.16	B	0.5	0.625	0.75	0.875	0.0625	1						0.75	0.4687	1.1563	1.6
AK41	3.95	3.7	3.36	B	0.5	0.625	0.75	0.875	0.0625	1	1.125					0.75	0.4687	1.1563	1.6
AK44	4.25	4	3.66	B	0.5	0.625	0.75	0.875	0.0625	1	1.125					0.75	0.4687	1.1563	1.9
AK46	4.45	4.2	3.86	B	0.5	0.625	0.75	0.875	0.0625	1	1.125					0.75	0.4687	1.1563	2.0
AK49	4.75	4.5	4.16	B	0.5	0.625	0.75	0.875	0.0625	1	1.125					0.75	0.4687	1.1563	2.1
AK51	4.95	4.7	4.36	B	0.5	0.625	0.75	0.875		1	1.125					0.75	0.4687	1.1563	2.2
AK54	5.25	5	4.66	B	0.5	0.625	0.75	0.875	0.0625	1	1.125	1.1875				0.75	0.4687	1.1563	2.4
AK56	5.45	5.2	4.86	B	0.5	0.625	0.75	0.875	0.0625	1	1.125	1.1875				0.75	0.4687	1.1563	2.5
AK59	5.75	5.5	5.16	C	0.5	0.625	0.75	0.875	0.0625	1	1.125	1.1875				0.75	0.4687	1.1563	2.7
AK61	5.95	5.7	5.36	C	0.5	0.625	0.75	0.875	0.0625	1	1.125	1.1875				0.75	0.4687	1.1563	2.8
AK64	6.25	6	5.66	C	0.5	0.625	0.75	0.875	0.0625	1	1.125	1.1875				0.75	0.4687	1.1563	3.0
AK66	6.45	6.2	5.86	C		0.625	0.75			1	1.125					0.75	0.4687	1.1563	3.0
AK69	6.75	6.5	6.16	C			0.75			1	1.125					0.75	0.7188	1.4687	3.7
AK71	6.95	6.7	6.36	C	0.5	0.625	0.75			1	1.125				1.4375	0.75	0.7188	1.4687	4.3
AK74	7.25	7	6.66	C	0.5	0.625	0.75		0.0625	1	1.125	1.1875	1.25		1.4375	0.75	0.7188*	1.4687	4.5
AK79	7.75	7.5	7.16	C			0.75			1	1.125				1.4375	0.75	0.7188	1.4687	4.7
AK81	7.95	7.7	7.36	C		0.625	0.75			1		1.1875				0.75	0.7188	1.4687	4.7
AK84	8.25	8	7.66	C	0.5	0.625	0.75		0.0625	1		1.1875			1.4375	0.75	0.7188*	1.4687	5.0
AK89	8.75	8.5	8.16	C			0.75			1	1.125				1.4375	0.75	0.7188	1.4687	5.2
AK91	8.95	8.7	8.36	C			0.75			1						0.75	0.7188	1.4687	5.2
AK94	9.25	9	8.66	C	0.5	0.625	0.75		0.0625	1		1.1875	1.25		1.4375	0.75	0.7188*	1.4687	5.5
AK99	9.75	9.5	9.16	C			0.75			1					1.4375	0.75	0.7188*	1.4687	5.7
AK104	10.25	10	9.66	C		0.625	0.75			1		1.1875	1.25	1.375	1.4375	0.75	0.7188	1.4687	5.9
AK109	10.75	10.5	10.16	C			0.75			1				1.375	1.4375	0.75	0.7188	1.4687	6.1
AK114	11.25	11	10.66	C			0.75			1		1.1875			1.4375	0.75	0.7188*	1.4687	6.7
AK124	12.25	12	11.66	C		0.625	0.75			1		1.1875	1.25		1.4375	0.75	0.7188*	1.4687	7.3
AK134	13.25	13	12.66	C			0.75			1		1.1875		1.375	1.4375	0.75	0.7188	1.4687	8.2
AK144	14.25	14	13.66	C			0.75			1		1.1875			1.4375	0.75	0.7188	1.4687	8.7
AK154	15.25	15	14.66	C			0.75			1					1.4375	0.75	0.7188	1.4687	9.7
AK184	18.25	18	17.66	C			0.75			1		1.1875			1.4375	0.75	0.7188	1.4687	11.8
